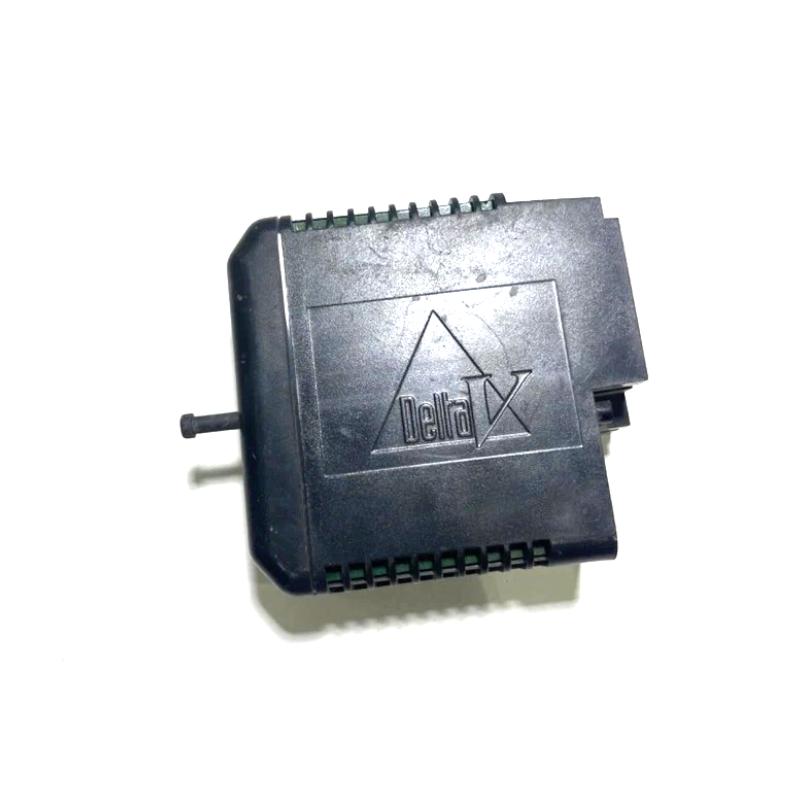

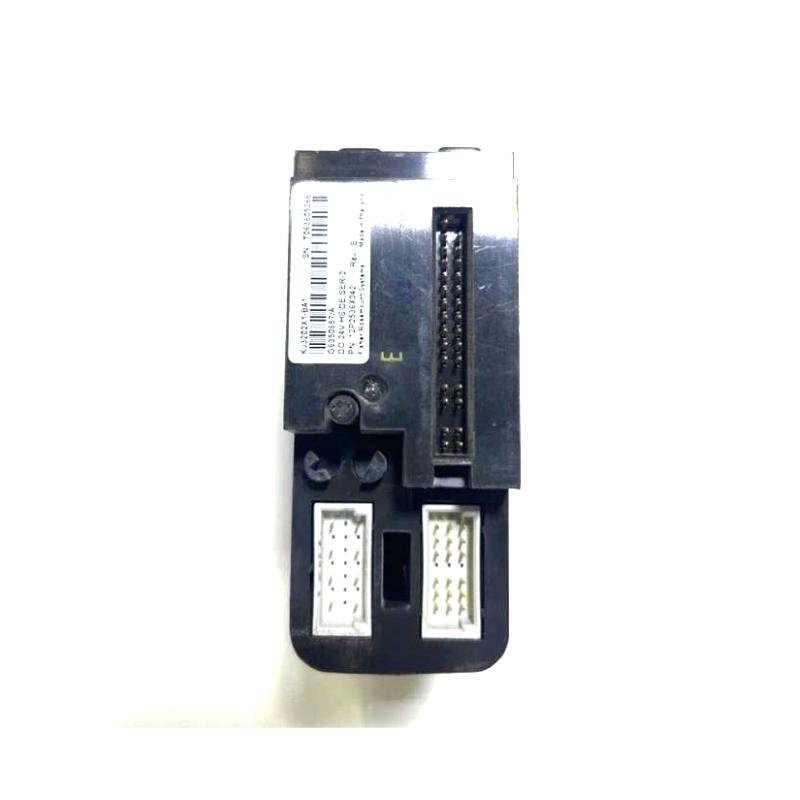

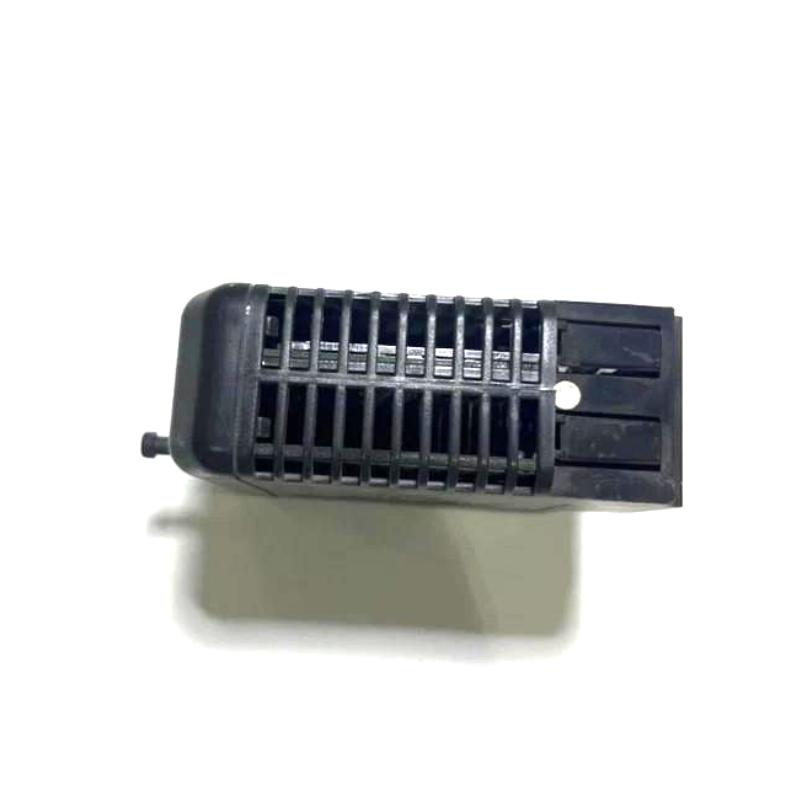

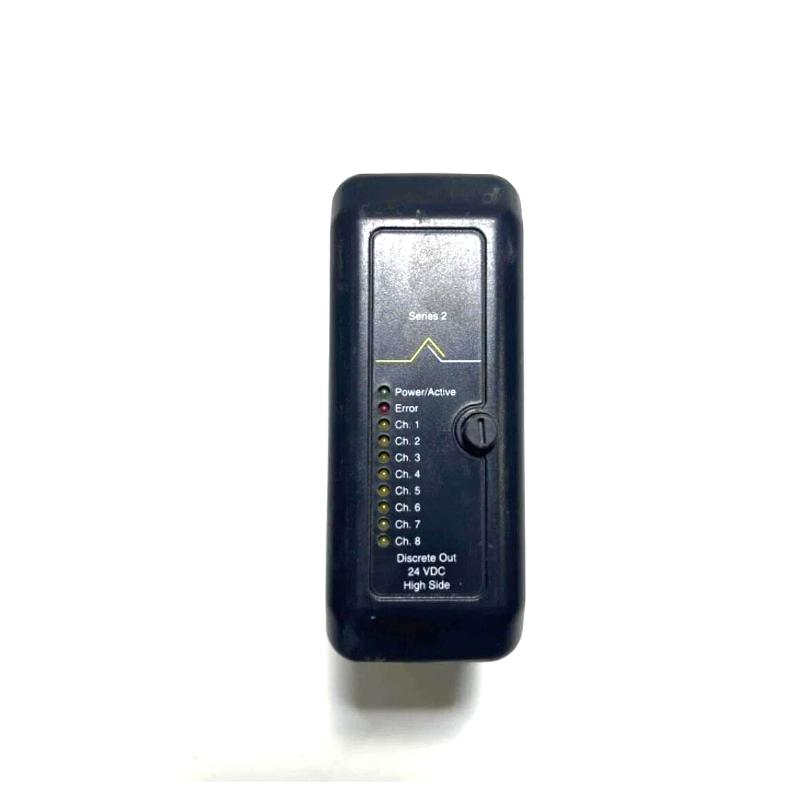

Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | VE4002S1T2B4 / KJ3202X1-BA1 |
| Function Type | Discrete Output Module, 24VDC High-Side, 8 channels |
| Number of Channels | 8 |
| Output Voltage Range | 2VDC to 60VDC |
| Max Output Current/Ch | 1.0 A |
| Max Output Current/Card | 3.0 A |
| Output Type | High-side switching |
| Output Behavior | Latches last command from controller |
| Pulse Output Mode | Supports momentary and continuous pulse (min 5ms) |
| Isolation | Optical isolation to system, 1500VDC tested |
| LocalBus Power | 12VDC, typical 100 mA, max 150 mA |
| Field Circuit Power | 3.0 A @ 24VDC per interface |
| Enclosure Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Vibration | 1 mm (5-16Hz); 0.5g (16-150Hz) |
| Shock | 10g, 11 ms half sine wave |
| Contaminant Class | ISA-S71.04 G3 |
| Terminal Block Keying | B6 |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 0.281 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this module hot-swappable?
A1: Yes, but only if used with a certified power supply and field power is de-energized.
Q2: How many discrete output channels does the module support?
A2: It supports 8 output channels per module.
Q3: What is the maximum output current per channel?
A3: 1.0 A per channel, up to 3.0 A per module.
Q4: Does this module require calibration?
A4: No calibration is needed; the module is factory-adjusted.
Q5: What type of isolation does it use?
A5: Optical isolation with a tested strength of 1500VDC.
Q6: What output types are supported?
A6: It supports latched output, momentary output, and pulsed output.
Q7: What is the operational temperature range?
A7: From -40°C to +70°C.
Q8: Can it be used in hazardous locations?
A8: Yes, it is certified for Zone 2 / Class I, Div 2 hazardous areas.
