Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Emerson VE4002S1T2B5 / KJ4001X1-CJ1 |
| Type | Output Module with Terminal Blocks |
| Function | Provides discrete output control for field devices in process automation systems |
| Output Type | Relay or transistor output |
| Number of Outputs | 8 discrete output channels |
| Output Voltage Range | 24 VDC nominal |
| Output Current | 0.5 A per channel |

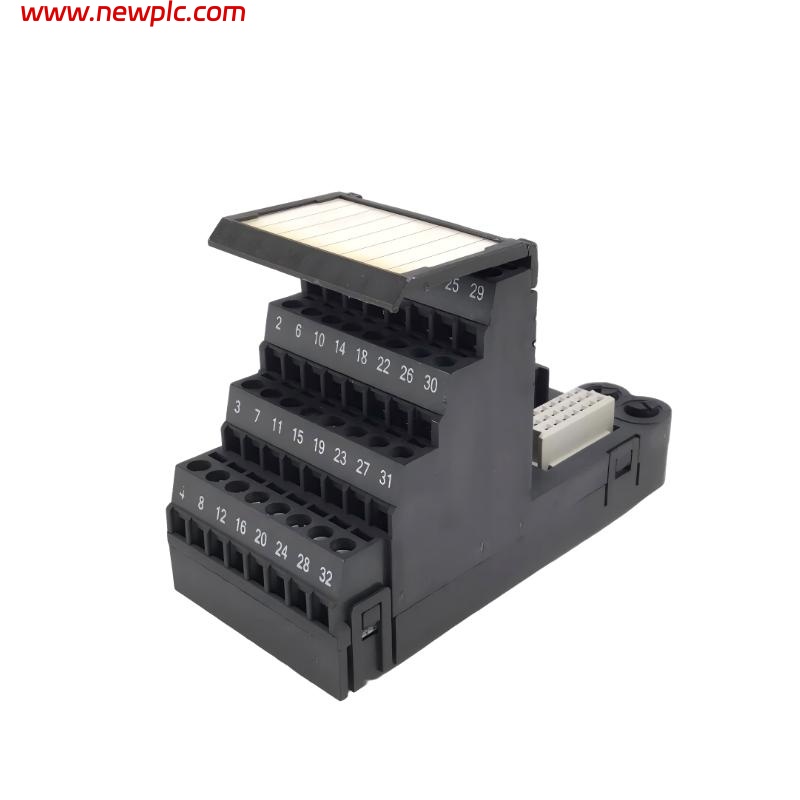

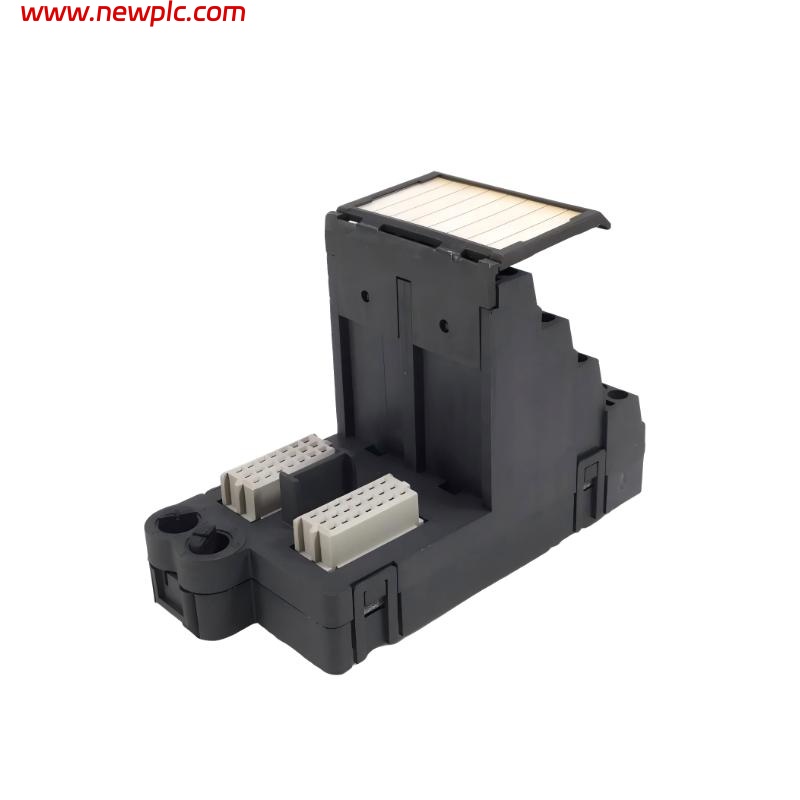

| Terminal Type | Removable screw terminal blocks |
| Isolation | Optical and galvanic isolation between I/O and module circuits |
| Status Indication | Individual LEDs for each output channel |
| Response Time | <10 ms typical |
| Power Supply Voltage | Supplied from system backplane |
| Communication Interface | Backplane connection compatible with Emerson control systems |
| Diagnostic Features | Channel fault detection, LED indicators |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack or panel mount |
| Compliance | CE, UL, and CSA certified |
| Dimensions (HxWxD) | 107 × 41 × 105 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the primary function of the Emerson VE4002S1T2B5 / KJ4001X1-CJ1 module?
A1: This module provides discrete output control for field devices, such as actuators, alarms, or relays, allowing precise execution of automation commands.
Q2: How many output channels does this module support?
A2: It supports 8 discrete output channels, enabling control of multiple devices simultaneously.
Q3: What types of outputs are available?
A3: The module can deliver either relay or transistor outputs, suitable for switching DC loads and interfacing with field devices.
Q4: How is the output status indicated?
A4: Each channel has a dedicated LED indicator that shows the operational status, making troubleshooting and monitoring simple.
Q5: Does the module provide isolation for output circuits?
A5: Yes, it includes both optical and galvanic isolation to protect the module and the control system from electrical faults or noise.
Q6: What type of terminal connection does this module use?
A6: It uses removable screw terminal blocks, allowing secure and convenient wiring for field connections.
Q7: How quickly does the module respond to control signals?
A7: The module has a typical response time of less than 10 milliseconds, providing fast and reliable output switching.
Q8: What diagnostic features are built into the output module?
A8: The module provides channel fault detection and LED status indicators, helping operators identify issues quickly and maintain system reliability.
