Technical Specifications
| Parameter | Specification |
|---|---|

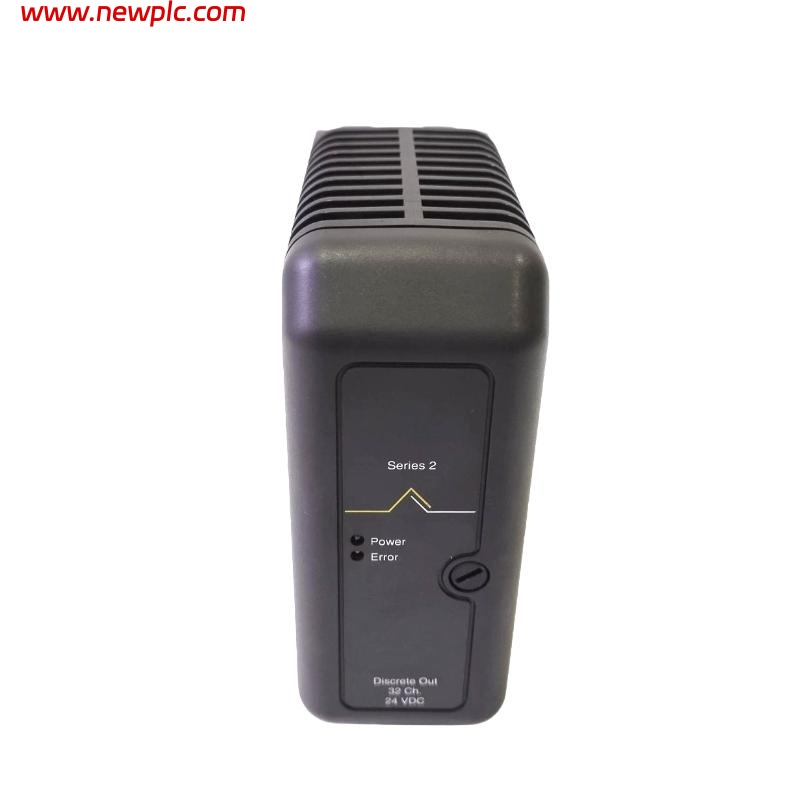

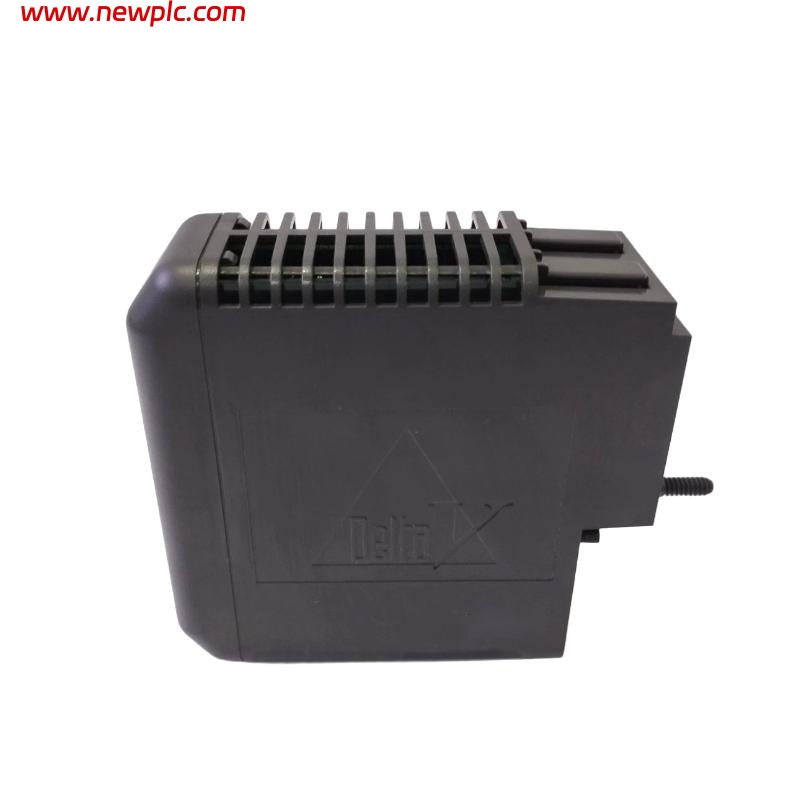

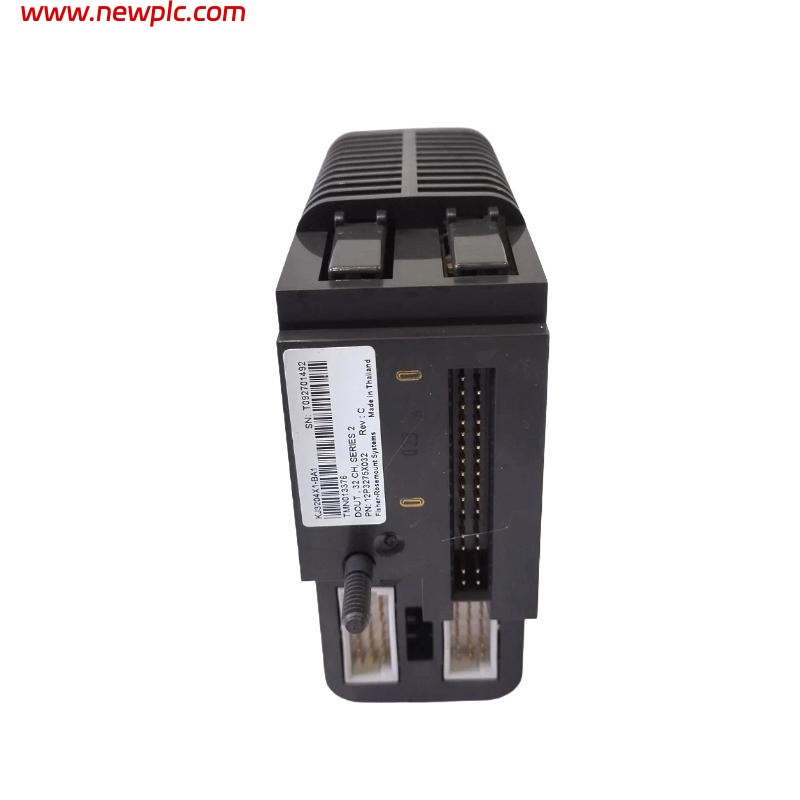

| Model | Emerson VE4002S2T2B1 |
| Type | Discrete Output Module |
| Function | Provides discrete output control for field devices in process automation systems |
| Output Type | Relay or transistor output |
| Number of Outputs | 8 discrete output channels |
| Output Voltage Range | 24 VDC nominal |
| Output Current | 0.5 A per channel |
| Terminal Type | Screw terminals for secure wiring |
| Isolation | Optical and galvanic isolation between outputs and module circuits |
| Status Indication | LED indicators for each output channel |
| Response Time | <10 ms typical |
| Power Supply | Supplied from system backplane |
| Communication Interface | Backplane connection compatible with Emerson control systems |
| Diagnostic Features | Channel fault detection, LED status indicators |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack or panel mount |
| Compliance | CE, UL, and CSA certified |
| Dimensions (HxWxD) | 107 × 41 × 105 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the main function of the Emerson VE4002S2T2B1 discrete output module?
A1: This module provides discrete output control for field devices such as actuators, alarms, or relays, ensuring precise operation in automation systems.
Q2: How many discrete outputs are available on this module?
A2: The module provides 8 discrete output channels, allowing multiple devices to be controlled simultaneously.
Q3: What types of outputs can this module deliver?
A3: It supports both relay and transistor outputs, suitable for DC load switching and interface with various field devices.
Q4: How can the operational status of each channel be monitored?
A4: Each output channel features an LED indicator that shows the channel’s status for easy monitoring and troubleshooting.
Q5: Does the module provide isolation between output circuits?
A5: Yes, optical and galvanic isolation is included to protect the module and connected devices from electrical faults and noise.
Q6: What type of terminal connection is used?
A6: Screw terminals provide secure and reliable wiring connections for all output channels, allowing easy maintenance.
Q7: How fast is the module’s response time to control signals?
A7: The module has a typical response time of less than 10 milliseconds, ensuring fast and reliable switching of outputs.
Q8: What diagnostic features are integrated into the module?
A8: Channel fault detection and LED status indicators are included, allowing operators to quickly identify and resolve any output issues.
