Technical Specifications
| Item | Specification |
|---|---|
| Model | VE4003S2B1 / KJ4001X1‑CA1 |

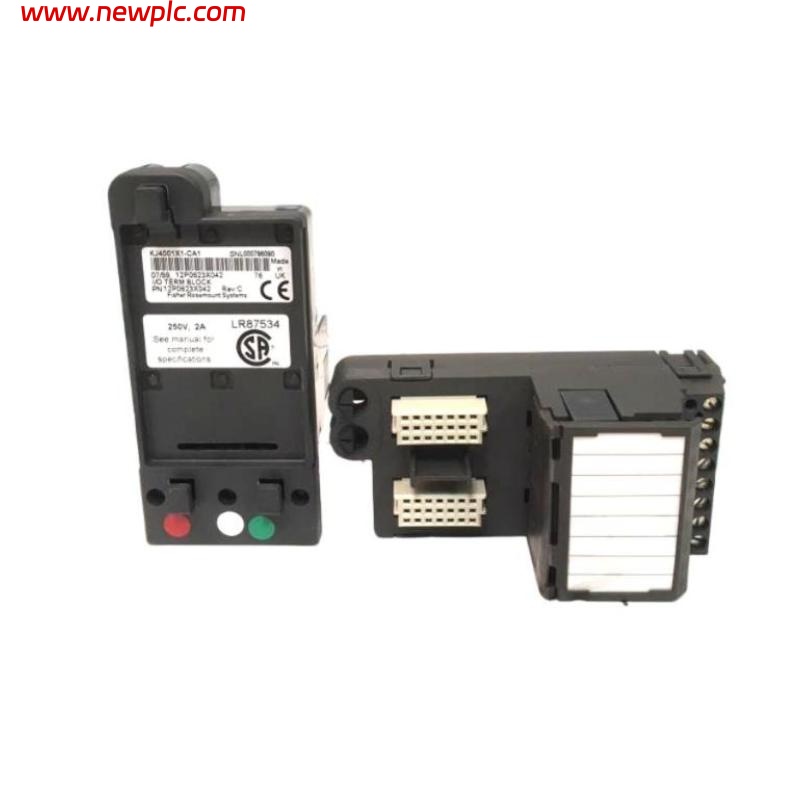

| Product Name | Analog Input Card |
| Manufacturer | Emerson |
| Series | DeltaV I/O Modules |
| Channels | 8 channels (4‑20 mA, HART enabled) |
| Accuracy | ±0.1% (typical) |
| Resolution | 12‑bit |
| Operating Temperature Range | –40 °C to +70 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Range | 5% to 95% RH (non‑condensing) |
| Mounting | Insert‑type into I/O carrier or rack |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: It acquires 4‑20 mA analog signals and supports the HART communication protocol, for use in process control systems.
Q2: How many input channels does the module support?
A2: It supports 8 analog input channels.
Q3: What signal types and protocol support does it offer?
A3: It supports 4‑20 mA analog signals and is HART‑protocol compatible.
Q4: What are its dimensions and weight?
A4: Dimensions are 107 x 41 x 105 mm, and weight is about 0.18 kg.
Q5: What is the operating temperature range?
A5: The operating temperature range is –40 °C to +70 °C.
Q6: Does the module support hot‑swapping?
A6: Hot‑swapping is not recommended when powered; power should be off before installation or replacement.
Q7: How is the module installed?
A7: It is inserted into a DeltaV I/O carrier or rack and connected to the backplane.
Q8: What should be considered when selecting this module?
A8: Validate system compatibility, channel type (4‑20 mA), HART support requirement, and terminal block wiring configuration.
