Technical Specifications
| Item | Specification |
|---|---|
| Model | VE4003S4B1 |
| Product Name | Thermocouple / mV Analog Input Card |
| Manufacturer | Emerson |
| Series | DeltaV M‑Series Traditional I/O Modules |
| Channels | 8 channels (thermocouple or mV input) |
| Signal Type | Thermocouple input / mV input |
| Accuracy | Linearization error approx. ±0.003% full scale (mV mode) |
| Resolution | 16‑bit A/D (mV channel) |
| Cold‑Junction Compensation Accuracy | ±1.0 °C (thermocouple mode) |
| Compensation Type | Local or remote cold‑junction compensation |
| Isolation | Each channel optically isolated; factory tested ≥1000 V DC |
| Operating Temperature Range | –40 °C to +70 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Range | 5% to 95% RH (non‑condensing) |

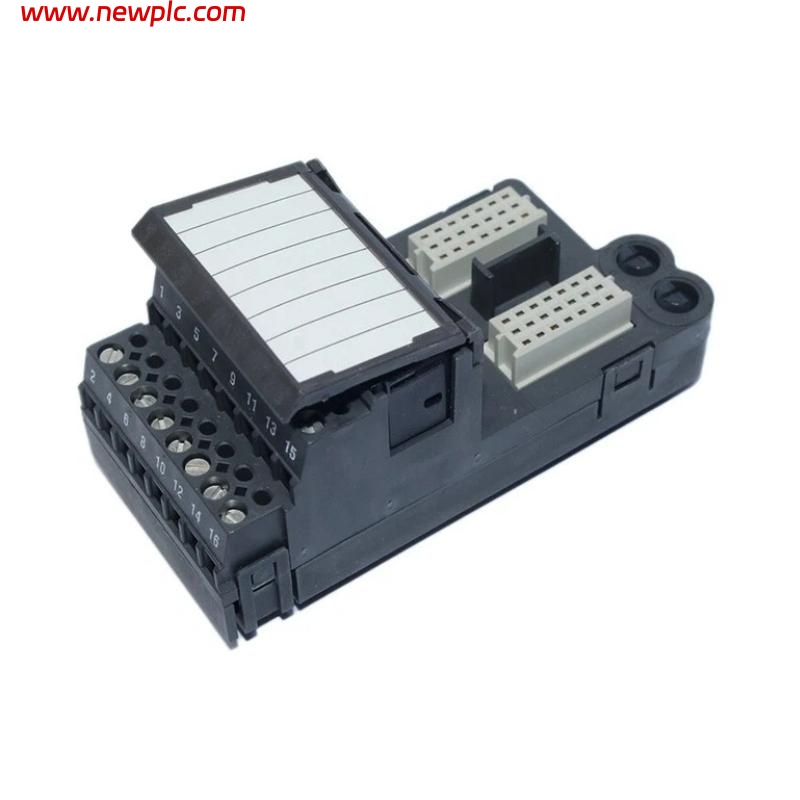

| Mounting | Inserted into I/O carrier or rack |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.281 kg |
FAQ
FAQ
Q1: What is the primary function of the module?
A1: It acquires thermocouple or millivolt signals to input temperature or micro‑voltage data into the control system.
Q2: How many channels does the module support?
A2: It supports 8 channels for thermocouple or mV inputs.
Q3: What is the cold‑junction compensation accuracy in thermocouple mode?
A3: The compensation accuracy is ±1.0 °C.
Q4: What is the linearization error in mV mode?
A4: The linearization error is approximately ±0.003% full scale.
Q5: What are the module’s dimensions and weight?
A5: Dimensions are 107 x 41 x 105 mm; weight is about 0.281 kg.
Q6: What is the operating temperature range?
A6: The module operates from –40 °C to +70 °C.
Q7: Does the module require field calibration?
A7: No, the module is factory‑calibrated and does not require user site calibration.
Q8: What should be considered when selecting this module?
A8: Ensure the correct sensor type (thermocouple or mV), system compatibility, and proper termination/connection arrangement.
