Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Emerson VE4005S2B3 |

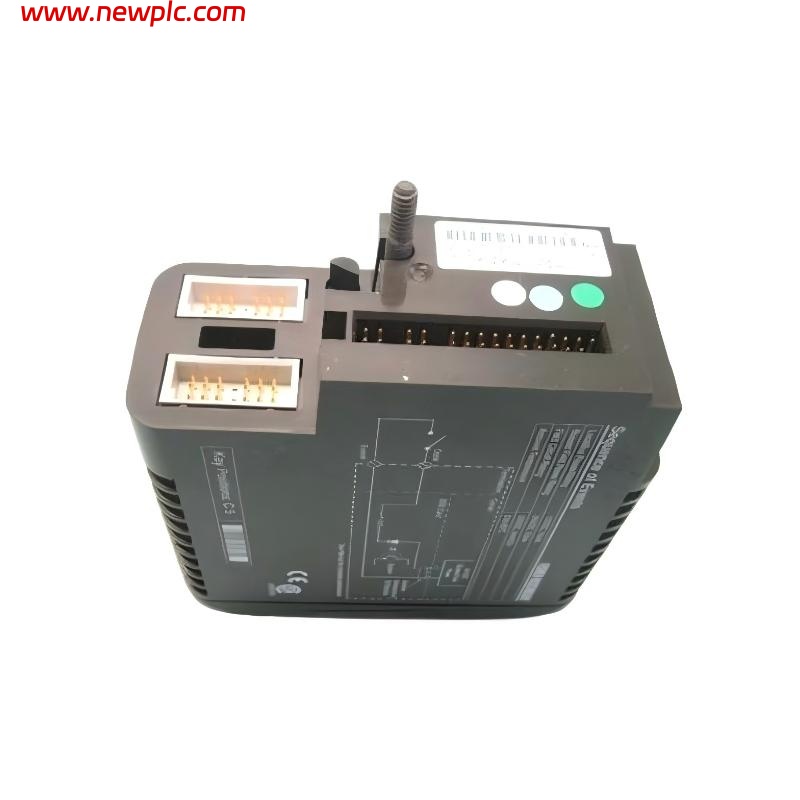

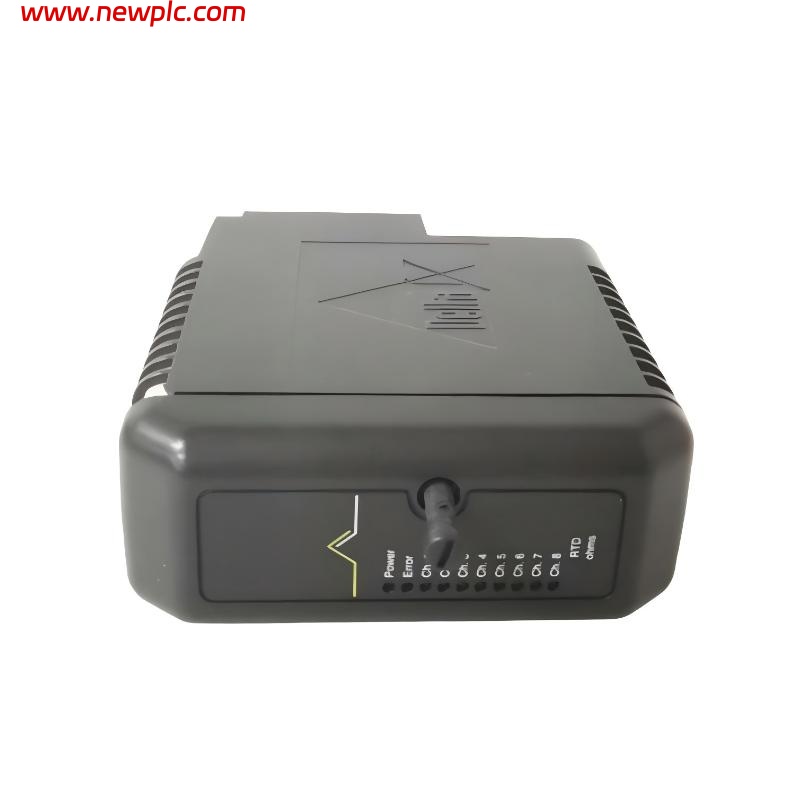

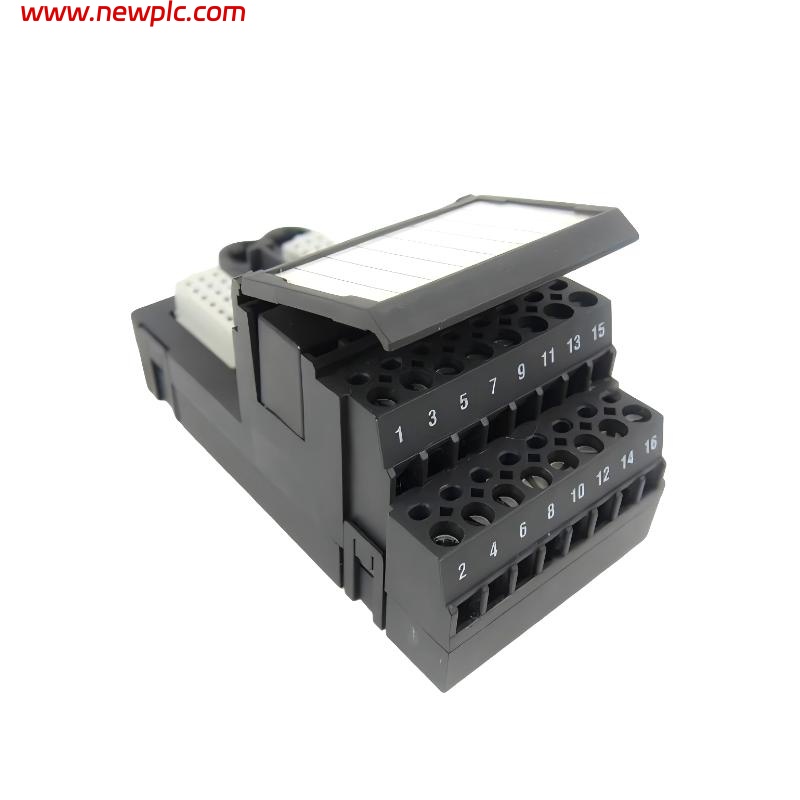

| Product Type | Output Module with Terminal Block |
| Assembly Components | KJ3221X1-BA1 + KJ4001X1-CE1 |
| Function | Provides analog output interfacing for field devices |
| Output Channels | 8 isolated analog output channels |
| Signal Type | 4–20 mA analog output |
| Output Load Resistance | 0–750 Ω |
| Accuracy | ±0.1% of full-scale typical |
| Power Supply Voltage | 24 VDC nominal |
| Communication Interface | DeltaV system-compatible fieldbus |
| Isolation | Channel-to-channel and channel-to-ground galvanic isolation |
| Response Time | ≤10 ms per channel |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DeltaV system carrier rail |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.231 kg |
| Application Environment | Industrial automation, oil & gas, and power generation systems |
FAQ
FAQ
Q1: What is the primary purpose of the VE4005S2B3 module?
A1: The VE4005S2B3 is designed to output analog signals to control field devices, providing precise 4–20 mA signal outputs for process control.
Q2: How many output channels are available on this module?
A2: The module features 8 isolated analog output channels to control multiple field devices simultaneously.
Q3: Is channel-to-channel isolation provided?
A3: Yes, each output channel is galvanically isolated to prevent interference and ensure signal integrity.
Q4: What kind of accuracy can be expected from this module?
A4: The VE4005S2B3 provides ±0.1% of full-scale accuracy, making it suitable for precise process control applications.
Q5: Can this module be integrated with DeltaV systems?
A5: Yes, it is fully compatible with DeltaV system architecture and communicates via the system’s fieldbus.
Q6: What type of signals does it generate?
A6: The module generates standard 4–20 mA analog output signals to drive actuators, valves, and other field devices.
Q7: Does the module support diagnostics?
A7: Yes, built-in diagnostics detect faults such as signal loss or device failure, enhancing system reliability.
Q8: In which industries is the VE4005S2B3 commonly applied?
A8: It is commonly used in process automation, power generation, oil and gas, and chemical industries for precise output control.
