Technical Specifications
| Parameter | Value |
|---|---|

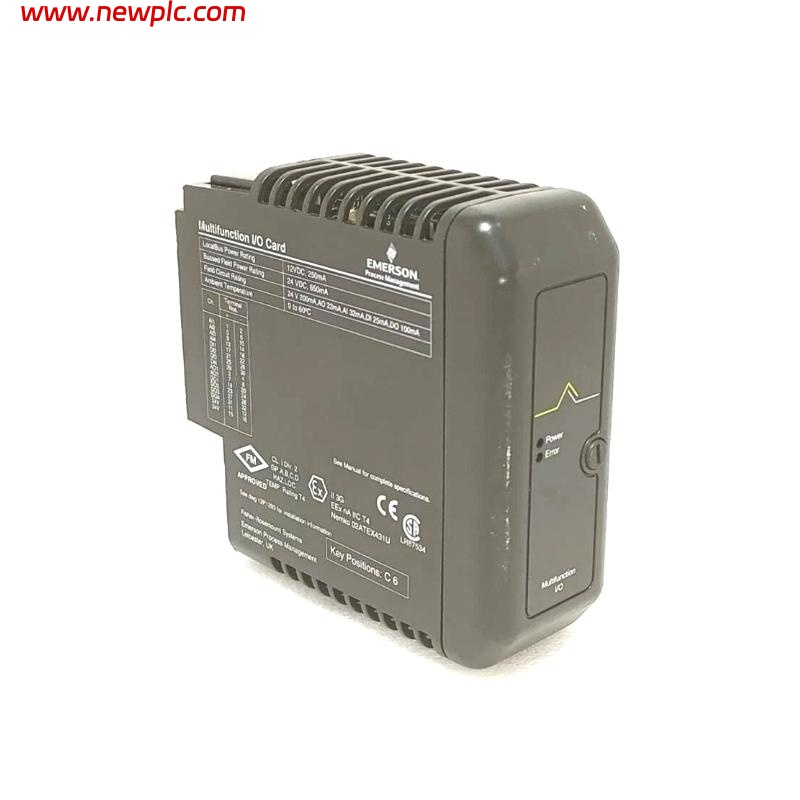

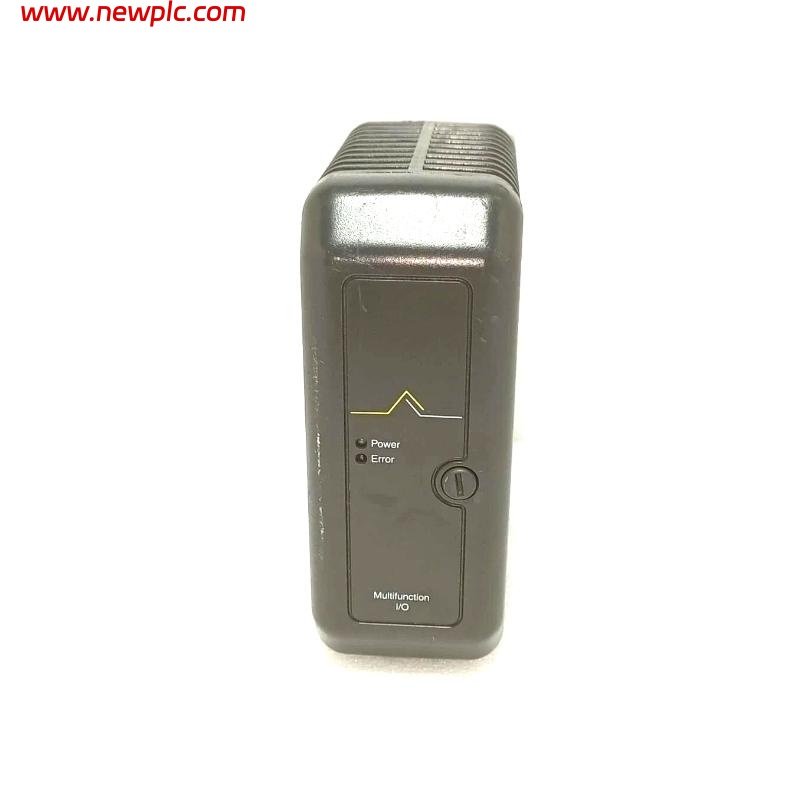

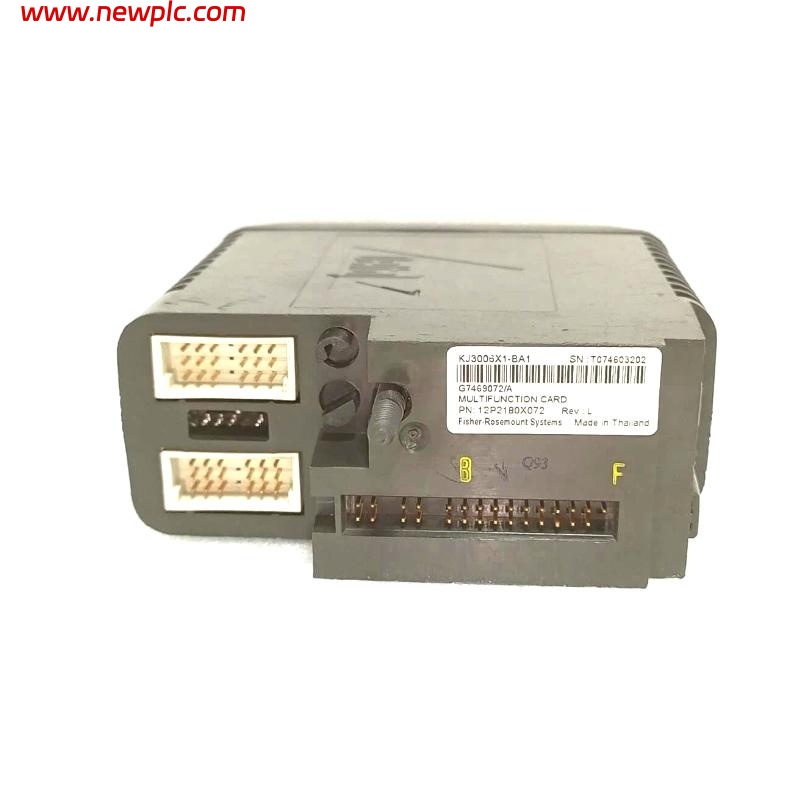

| Product Name | Emerson VE4015 DeltaV Pulse Count Input Card |
| Channels | 4 |
| Input Type | 24V DC, Dry Contact |
| Detection Level (ON) | >4.8V DC (>5 mA) |
| Detection Level (OFF) | <1.0V DC (<1 mA) |
| Input Impedance | 25 mA at 24V DC (960 Ohms) |
| Input Frequency (Max) | 50 kHz (sine/square wave) |
| Minimum Pulse Width | 10 µs |
| Input Accuracy | ±0.1% reading (0.1 Hz to 50 kHz) |
| Resolution | ±1 pulse, 32-bit counter |
| Isolation | 250V AC (system), 100V AC (channel-to-channel) |
| Wetting Voltage | 24V DC |
| LocalBus Current | 150 mA (max, 12V DC nominal) |
| Field Circuit Power | 25 mA at 24V DC (1 A resettable fuse) |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.36 kg |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Shock/Vibration | 10 g / 1 mm peak-to-peak from 5–16 Hz; 0.5 g to 150 Hz |
FAQ
FAQ
Q1: What is the maximum input frequency supported by the VE4015 Pulse Count card?
A1: It supports up to 50 kHz for both sine and square wave signals.
Q2: What is the minimum pulse width the card can detect?
A2: The card can detect pulse widths as short as 10 microseconds.
Q3: Does the VE4015 card provide channel-to-channel isolation?
A3: Yes, it offers 250V AC isolation from the system and 100V AC between channels.
Q4: Does the VE4015 require external power?
A4: It uses 24V DC for field power with a typical draw of 25 mA and includes a 1A resettable fuse.
Q5: What is the accuracy of the pulse input measurement?
A5: It maintains 0.1% reading accuracy in the range of 0.1 Hz to 50 kHz.
Q6: Is the VE4015 suitable for dry contact inputs?
A6: Yes, it supports 24V DC dry contact type inputs.
Q7: What are the physical dimensions of the VE4015?
A7: Its dimensions are 107 x 41 x 105 mm and it weighs 0.36 kg.
Q8: What environmental conditions is the card rated for?
A8: It operates between -40°C to 70°C, supports 5% to 95% humidity, and has an IP20 protection rating.
