Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE4022 |

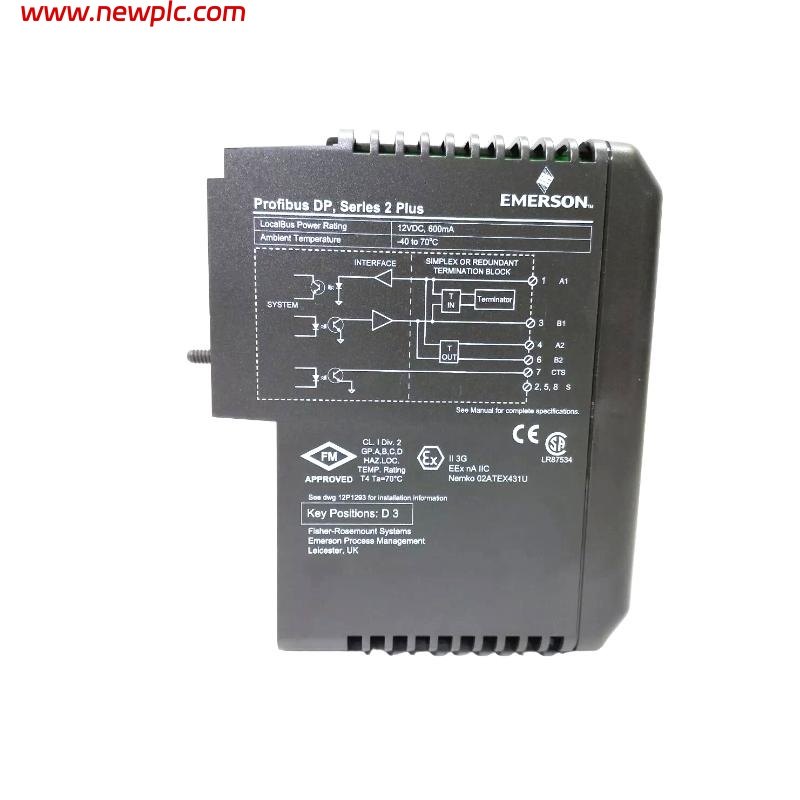

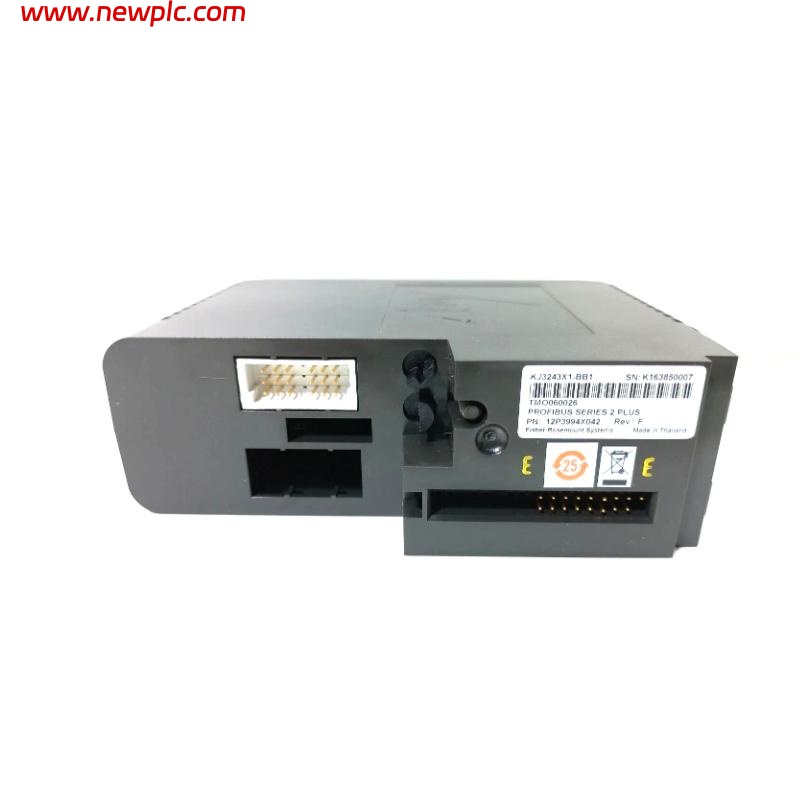

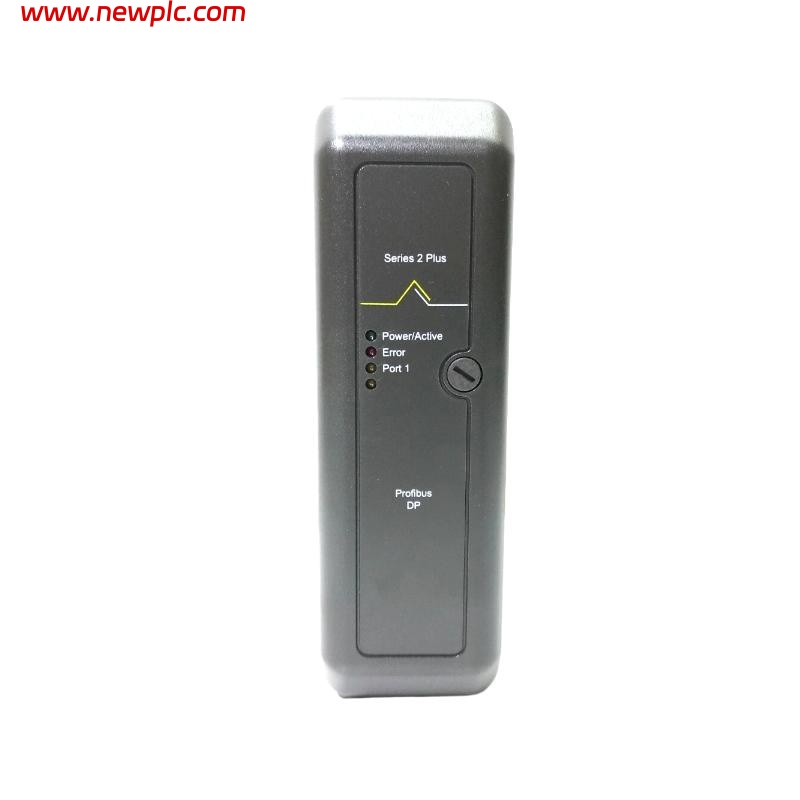

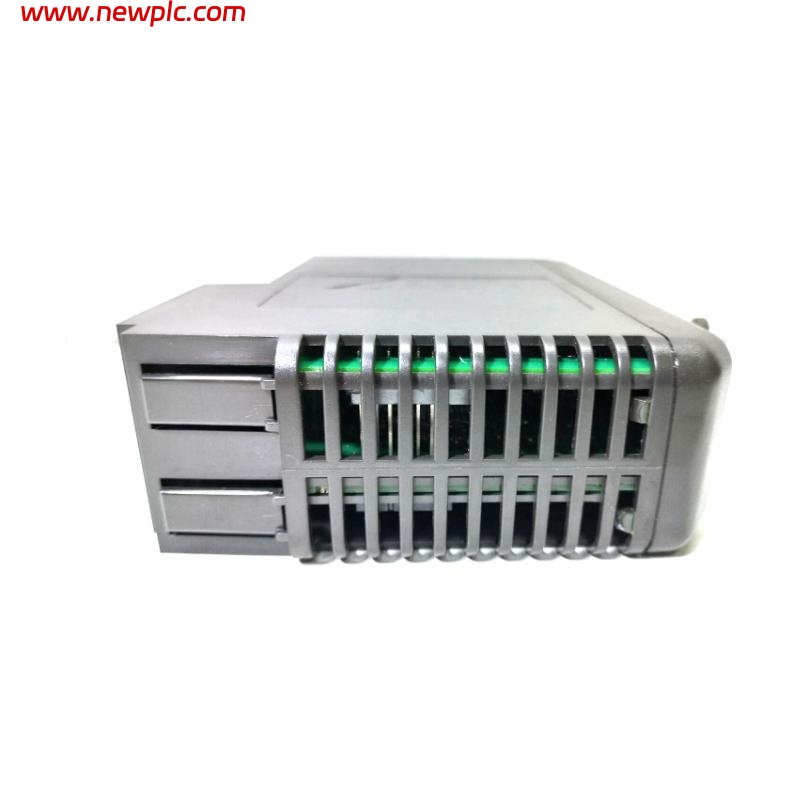

| Product Type | M-series Profibus DP Series 2 Plus Interface Card |
| Transmission Technology | RS485 (H2) |
| Bus Protocol | Profibus DP (Master-Slave) |
| Number of Slaves Supported | Up to 64 |
| Transmission Speed | 9.6 Kbit/s to 1.5 Mbit/s |
| Ports | 1 |
| Switchable Terminator | Yes |
| Redundancy Support | Yes (requires VE4038) |
| Diagnostics | Station, Module, and Channel-based |
| Configuration Support | GSD File Import |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Vibration Resistance | 1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz) |
| Shock Resistance | 10 g, ½ sine wave, 11 ms duration |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 G3 (conformal coated) |
| Certifications | CE, FM, CSA, ATEX, IECEx, Marine (ABS, DNV-GL, IACS E10) |
| Hazardous Locations | Class I, Div. 2, Groups A-D, T4 / Zone 2 (ATEX/IECEx) |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many Profibus DP slave devices does the VE4022 support?
A1: The VE4022 supports up to 64 slave devices on a single segment.
Q2: Does the VE4022 support redundant operation?
A2: Yes, redundancy is supported when used with VE4038 redundant card set.
Q3: What type of cable is required for the VE4022?
A3: The interface uses a two-wire, shielded twisted-pair RS485 communication cable.
Q4: Can the VE4022 be installed anywhere in the Profibus DP segment?
A4: Yes, the built-in terminator jumper allows flexible placement either at segment ends or inline.
Q5: What certifications does the VE4022 hold?
A5: The VE4022 is certified for CE, FM, CSA, ATEX, IECEx, and marine applications (ABS, DNV-GL).
Q6: What is the temperature range for the VE4022?
A6: Operating temperature is from -40 to 70 °C, storage from -40 to 85 °C.
Q7: Does the VE4022 provide diagnostic capabilities?
A7: Yes, it offers station-level, module-level, and channel-level diagnostics for fault detection.
Q8: How are Profibus DP slaves configured with VE4022?
A8: By importing GSD files into the DeltaV system, slave devices are automatically recognized and configured.
