Technical Specifications
| Parameter | Specification |
|---|---|

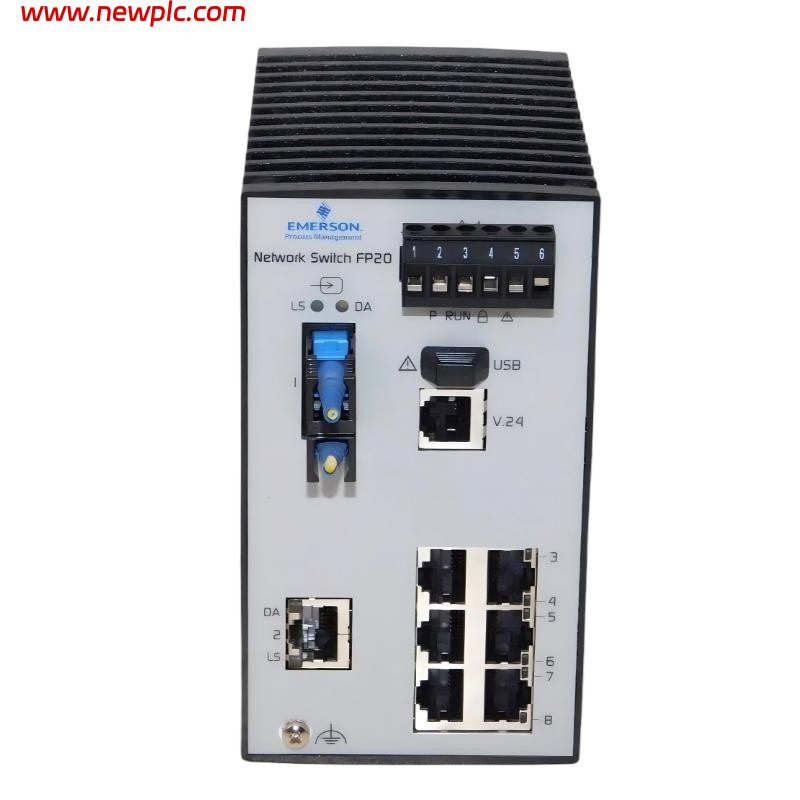

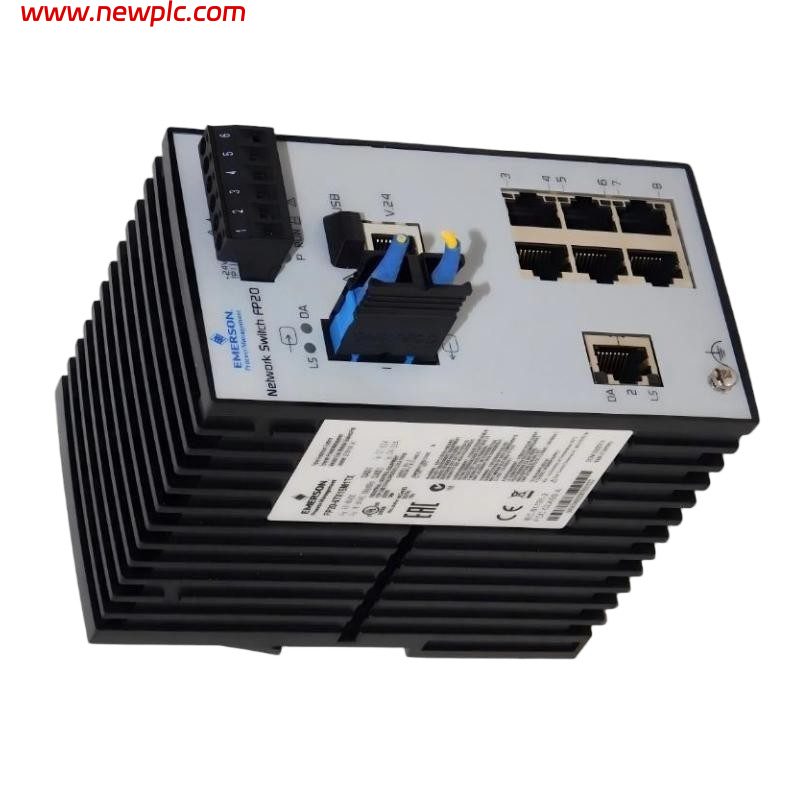

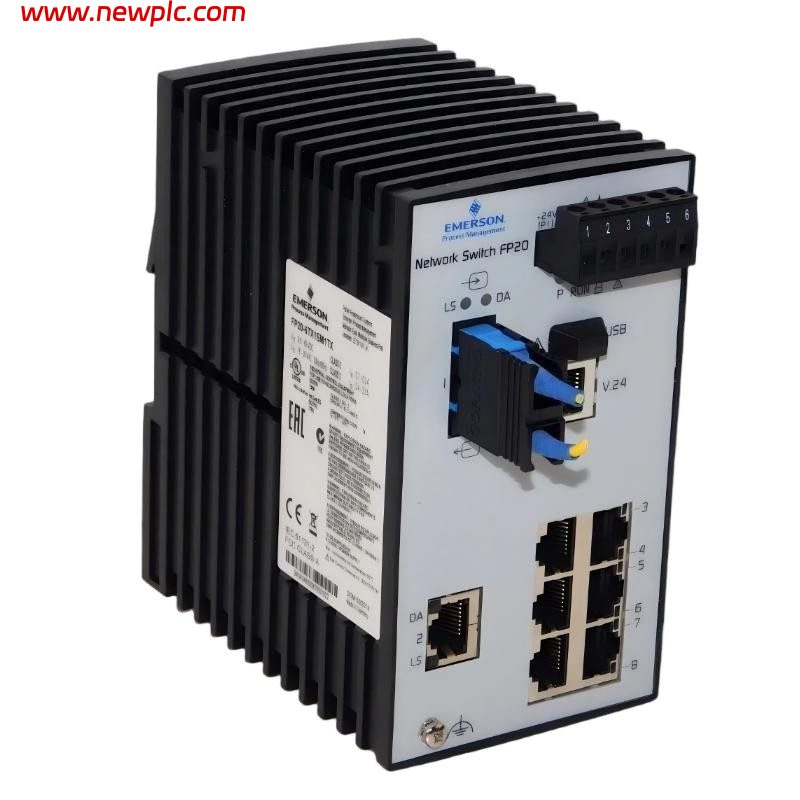

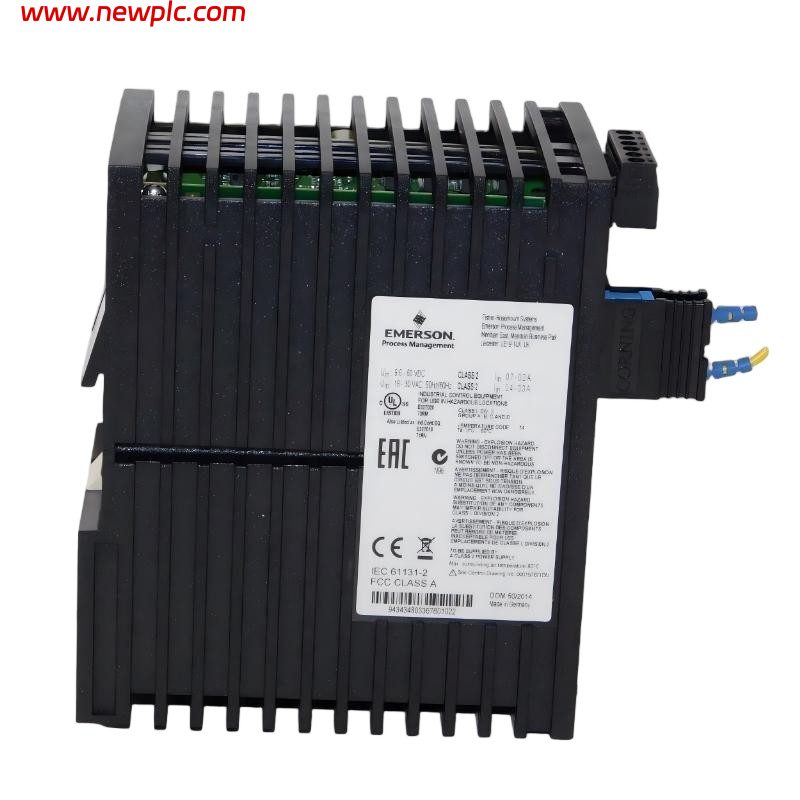

| Model Number | VE6014P4 |
| Manufacturer | Emerson |
| Product Series | DeltaV Control Network / System Hardware |
| Product Type | Ethernet Communication / Network Module |
| Application | DeltaV system network communication (controller / I/O / workstation connectivity) |
| Network Function | Industrial Ethernet switching / system communication interface |
| Port Type | Industrial Ethernet (typically 100 Mbps / 1 Gbps, system dependent) |
| Protocol Support | DeltaV proprietary control network protocols |
| Redundancy Support | Yes (DeltaV redundant network architecture) |
| Power Supply | 24 VDC (system dependent) |
| Mounting Type | Control cabinet / DeltaV rack |
| Hot-Swap Capability | Supported |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Protection Class | IP20 |
| Dimensions (L × W × H) | Approximately 130 mm × 107 mm × 47 mm |
| Weight | Approximately 0.4–0.8 kg |
FAQ
FAQ
Q1: Is VE6014P4 a field I/O module?
No. It is a network/system communication module, not used for direct field wiring.
Q2: Can it connect to sensors or transmitters directly?
No. Field devices must connect through I/O modules such as VE4201 or VE5005.
Q3: What is its main function?
It provides Ethernet-based communication within the DeltaV control system.
Q4: Does VE6014P4 support redundancy?
Yes, it supports redundant network architectures in DeltaV systems.
Q5: Where is it installed?
Inside a DeltaV control cabinet or system rack.
Q6: What network type does it use?
It uses industrial Ethernet with DeltaV proprietary communication protocols.
Q7: What is the operating temperature range?
-40°C to +70°C.
Q8: What are the dimensions and weight?
Dimensions: 130 mm × 107 mm × 47 mm, weight: 0.4–0.8 kg.
