Technical Specifications
| Parameter | Specification |
|---|---|

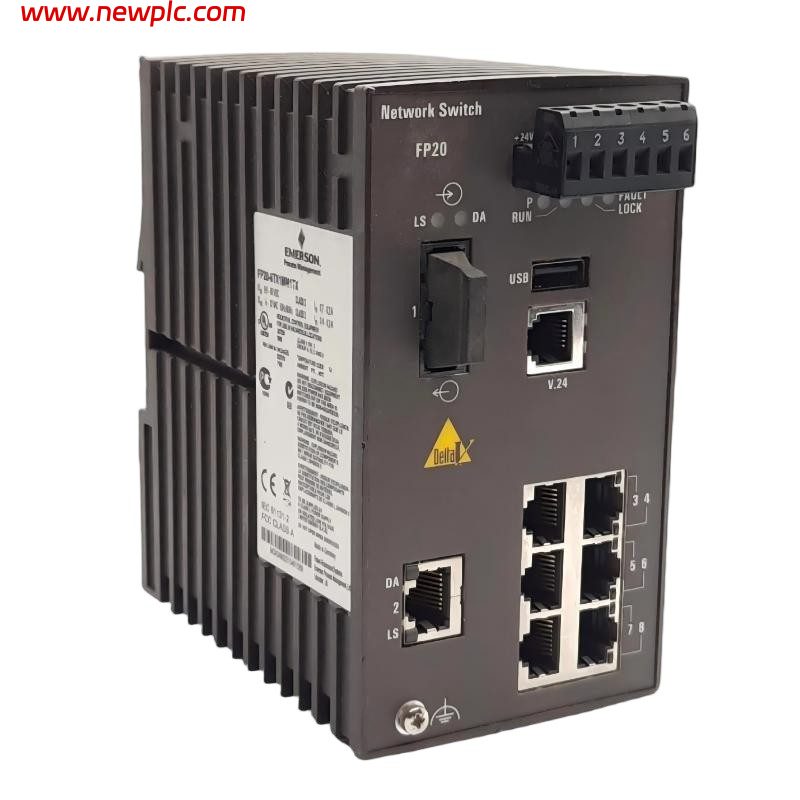

| Model Number | VE6022P1 |
| Manufacturer | Emerson |
| Product Series | DeltaV™ Control Network Hardware |
| Product Type | Industrial Ethernet Switch (Managed Control Network Switch) |
| Application | DeltaV system backbone communication (controllers, workstations, I/O network integration) |
| Port Configuration | Typically high-density Ethernet switch (model-dependent; commonly 24+ ports + uplinks in VE6022 family) |
| Network Function | Layer 2 managed switching (store-and-forward architecture) |
| Redundancy Support | Yes (DeltaV redundant network design compatible) |
| Power Supply | 100–240 VAC, 50/60 Hz (system dependent) |
| Power Consumption | Low-power industrial switch design (typically <20 W class) |
| Mounting Type | 19-inch rack mount |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | Approximately 440–483 mm × 44 mm × 250–310 mm (variant dependent) |
| Weight | Approximately 3–5 kg |
FAQ
FAQ
Q1: Is VE6022P1 an I/O module?
No. It is a network switch, not a field I/O module.
Q2: What is its main function?
It provides Ethernet communication for DeltaV control systems.
Q3: How is it different from VE6021 series?
VE6022 is generally a newer / higher-capacity switch family, depending on system architecture.
Q4: Can it connect field instruments directly?
No. Field devices connect through I/O modules, not switches.
Q5: Does VE6022P1 support redundancy?
Yes, it is designed for redundant DeltaV network topologies.
Q6: Where is it installed?
Inside a 19-inch control cabinet rack.
Q7: What is the power supply requirement?
Typically 100–240 VAC industrial power input.
Q8: What are its size and weight?
Approximately 440–483 × 44 × 250–310 mm, weight about 3–5 kg.
