Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Epro MMS6740 Programmable Logic Card |
| Inputs | 60 digital inputs, 24V logic, optocoupler isolated |
| Input Voltage Range | 0–48 V (Nominal: 0–24 V) |
| Input Signal Levels | 0–3 V = Low, 13–48 V = High |
| Input Resistance | > 3 kΩ |
| Output Relays | 16 single-pole switchover contacts, potential-free, galvanically isolated |
| Relay Output Voltage/Current | Max. 48 VDC / 1 A |
| Relay Reaction Time | Max. 10 ms |
| Logic Modules | 30 modules: AND, OR, 2-out-of-3, Negation, AND/AND/OR combinations |
| Configuration Interface | RS232 (Mini-DIN front port), RS485 bus interface |
| Power Supply | 18–31.2 VDC (redundant) |
| Internal System Voltage | +5V (galvanically separated) |
| Power Consumption | Max. 6 W |
| Front Indicators | 2 green LEDs (power), 16 yellow LEDs (relay state) |
| Operating Temperature | 0 to +65°C |
| Storage Temperature | -30 to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration / Shock | 98 m/s² (16 ms) according to IEC 68-2-29 |
| EMC Compliance | EN50081-1 / EN50082-2 |

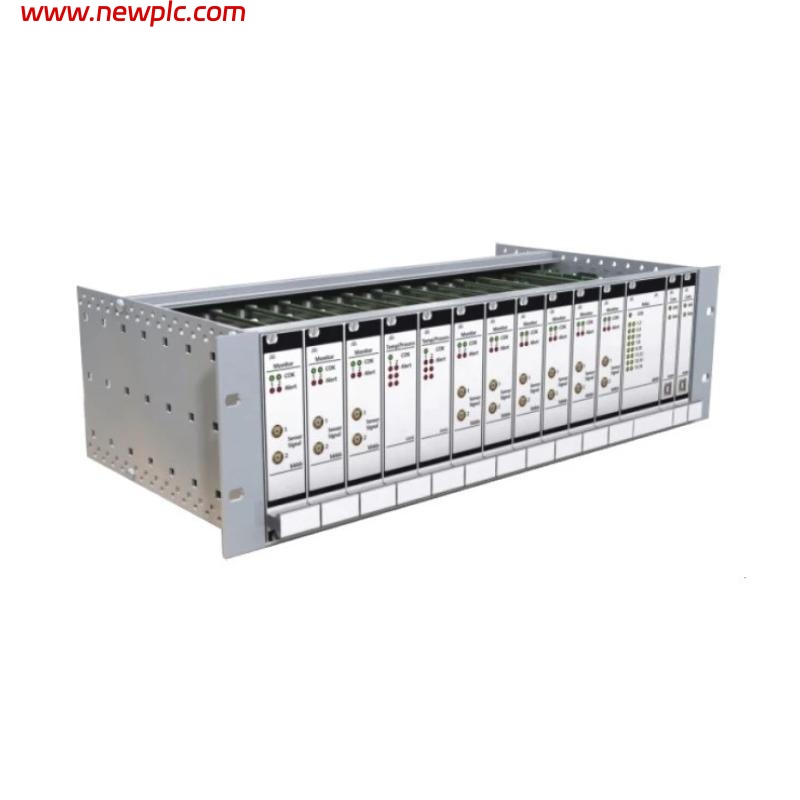

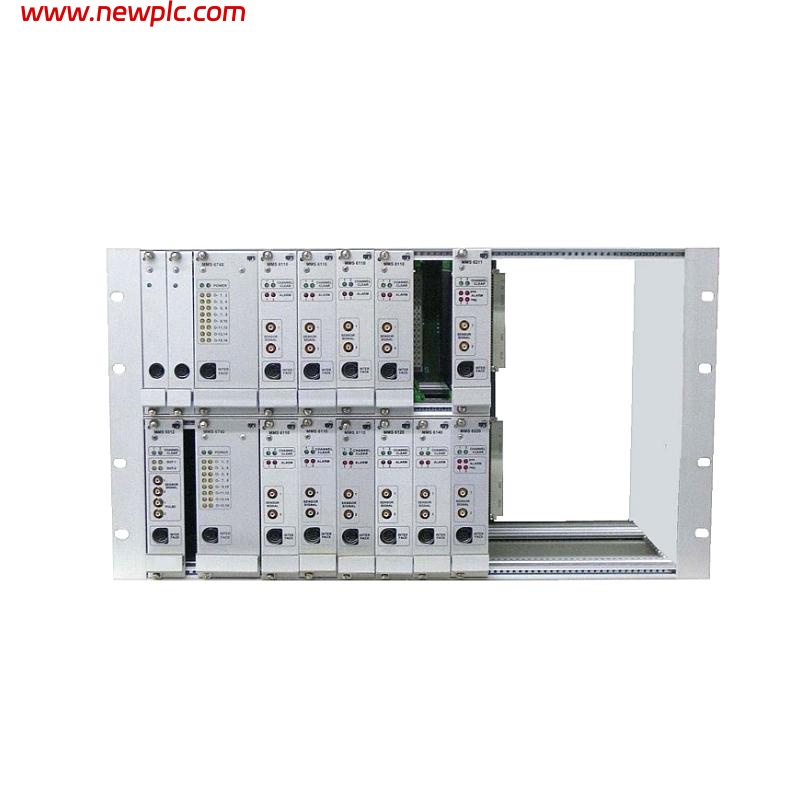

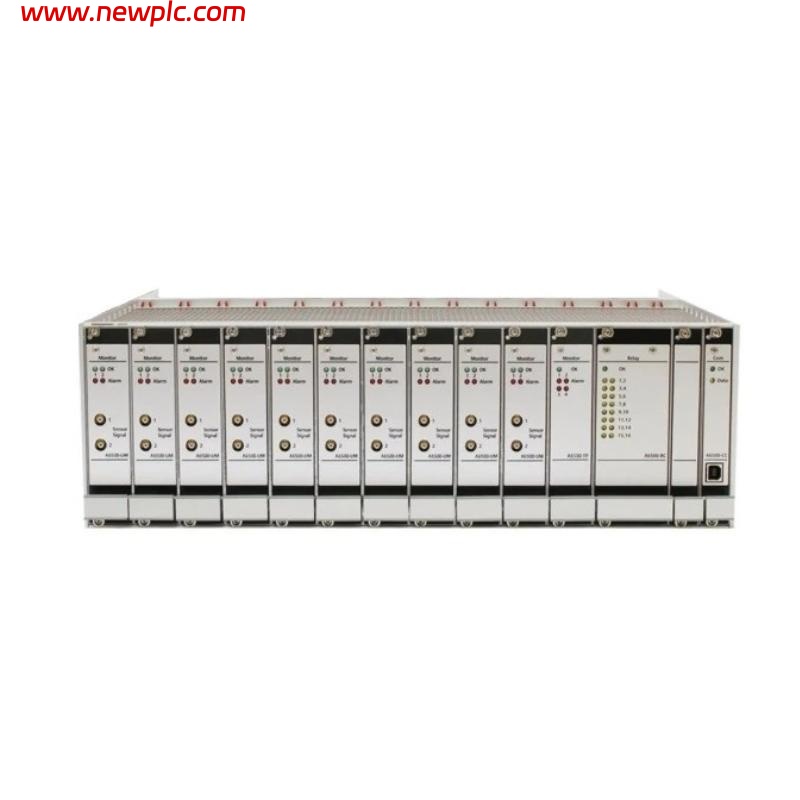

| Mounting | 19” system frame (e.g. IMR 6000/xx), sandwich design |
| Dimensions (W x H x L) | 50 x 128 x 160 mm |
| Weight | 0.42 kg (net), 0.56 kg (gross) |
| Order Number | 9100-00091 |
| Configuration Kit | MMS Para Kit, Order No. 9510-00027 |
FAQ
FAQ
Q1: How many inputs and outputs does the MMS6740 support?
A1: It supports 60 digital inputs and 16 relay outputs.
Q2: What type of logic functions can the MMS6740 perform?
A2: It supports AND, OR, 2-out-of-3, negation, and AND/AND/OR combinations via 30 logic modules.
Q3: What is the maximum switching capacity of the relay outputs?
A3: The relays support up to 48 VDC at 1 A with a maximum reaction time of 10 ms.
Q4: Is a system frame required to operate the MMS6740?
A4: Yes, it must be used with a system frame such as IMR 6000/xx; standalone operation is not supported.
Q5: How is the logic card configured?
A5: Configuration is done using the MMS 6910 software via RS232 or RS485 interfaces.
Q6: What are the environmental operating limits?
A6: Operating temperature is 0–65°C, storage is -30–85°C, and humidity is 5–95% non-condensing.
Q7: What indicators are available on the front panel?
A7: Two green LEDs for power status and sixteen yellow LEDs for relay status.
Q8: What are the mechanical dimensions and weight of the module?
A8: Dimensions are 50 x 128 x 160 mm, and net weight is approximately 0.42 kg.
