Technical Specifications

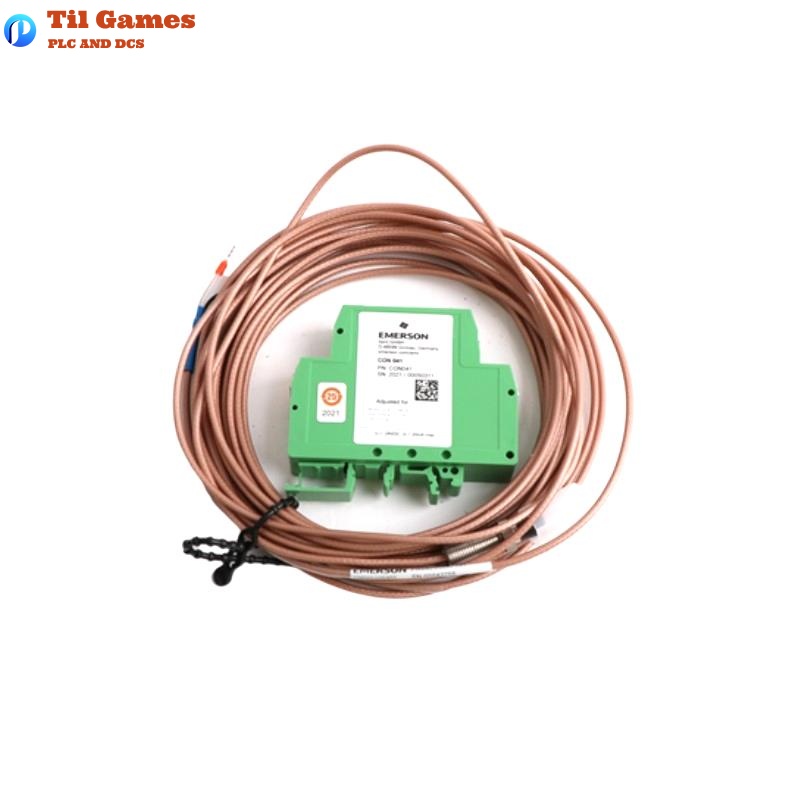

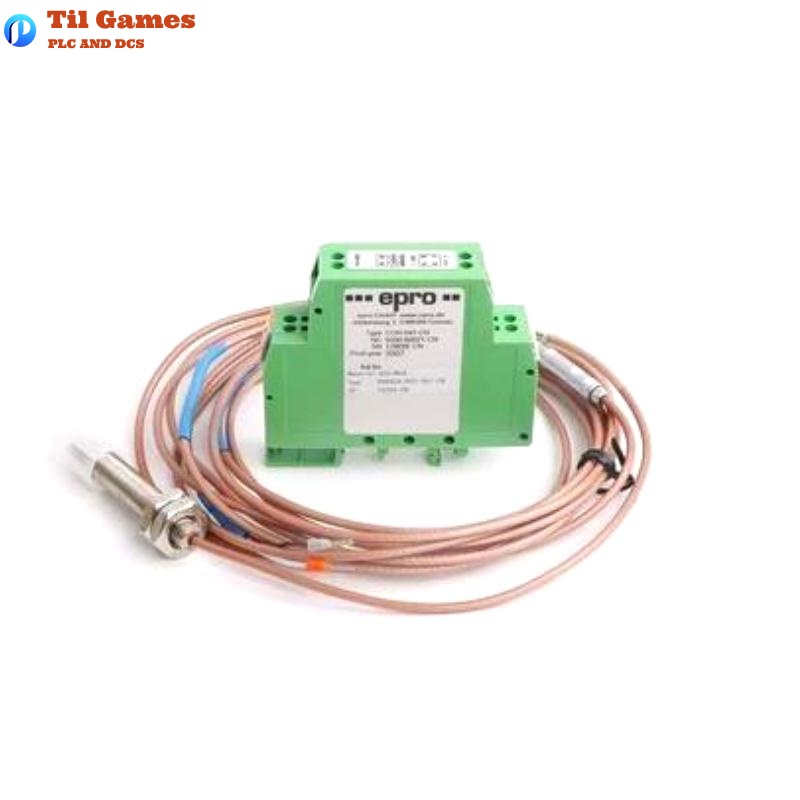

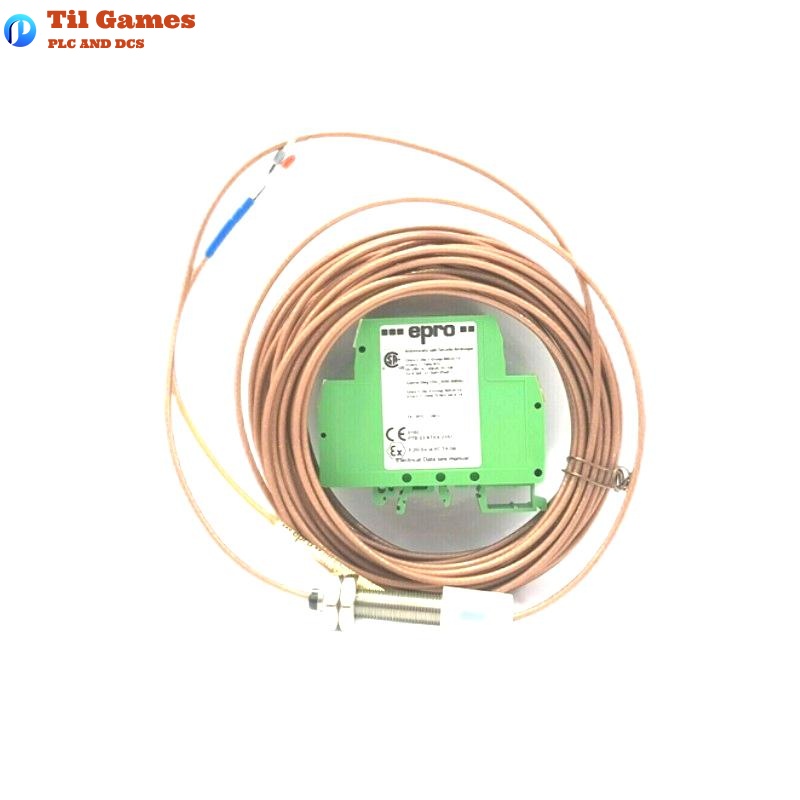

PR6423/002-121 Eddy Current Sensor
| Parameter | Value |
|---|---|
| Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (±5%) |
| Deviation from Linearity | ±0.025 mm |
| Minimum Shaft Diameter | 25 mm |
| Target Material | 42CrMo4 (Standard) |
| Protection Class | IP66 |
| Operating Temperature | -35°C to +180°C (Sensor incl. 1m cable) |
| Material | Tip: PEEK; Case: Stainless Steel; Cable: PTFE; Connector: Brass/Nickel |
| Weight | Approx. 0.16 kg (Sensor Head Ø 8 mm) |
| Case Thread | M10x1 or 3/8-24UNF |
| Cable Diameter (Standard/Armored) | 2.8 mm / 6 mm |
| Min. Bend Radius (Standard/Armored) | 25 mm / 35 mm |
| Parameter | Value |
|---|---|
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | < 15 µs |
| Operating Temperature | -30°C to +100°C |
| Protection Class | IP20 |
| Supply Voltage | -23V to -32V (Output -4V to -20V); -21V to -32V (Output -2V to -18V) |
| Mounting Method | DIN Rail |
| Housing / Weight | PA 6.6 / ~60 grams |
| Connection Type | Screw Terminals (Max. 1.5 mm²) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What applications is the PR6423 sensor suited for?
A1: It is used in steam, gas, hydro turbines, compressors, gearboxes, pumps, and fans to measure shaft displacement and eccentricity.
Q2: What is the operating temperature range of the sensor?
A2: -35°C to +180°C including the 1-meter cable.
Q3: Is the CON041 signal converter compatible with PR6423?
A3: Yes, CON041 is fully compatible with PR6423 for both standard and extended range versions.
Q4: What is the output voltage range of the sensor system?
A4: Depending on supply, output ranges are -2V to -18V or -4V to -20V.
Q5: Is the system certified for hazardous areas?
A5: Yes, the sensor and converter support ATEX, IEC-Ex, and CSA intrinsic safety certifications.
Q6: What is the sensor head diameter and its weight?
A6: The sensor head is 8 mm in diameter and weighs approximately 0.16 kg.

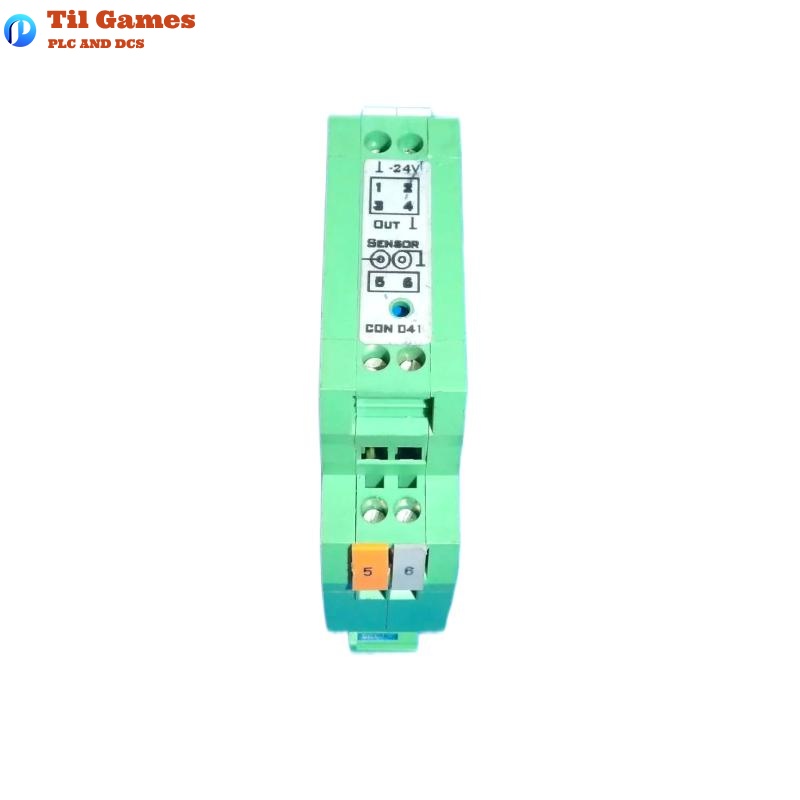

Q7: How is the CON041 converter mounted?
A7: It is designed for DIN rail mounting inside control panels.
Q8: What target materials does the PR6423 support?
A8: The standard target material is 42CrMo4 steel. Other materials are available upon request.
