Technical Specifications
| Item | Specification |
|---|---|
| Model | PR6423/003‑130 |

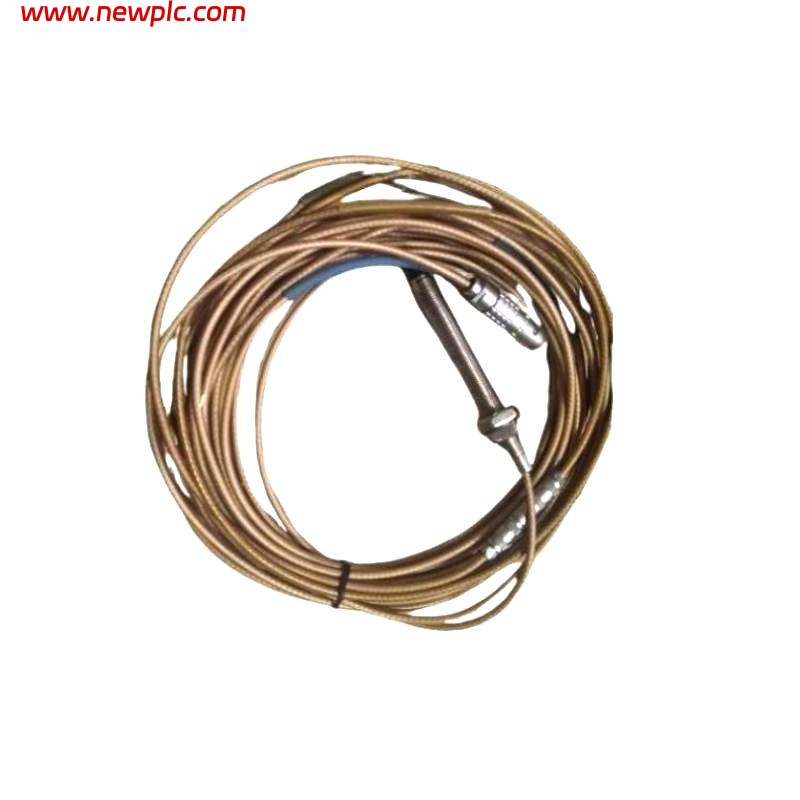

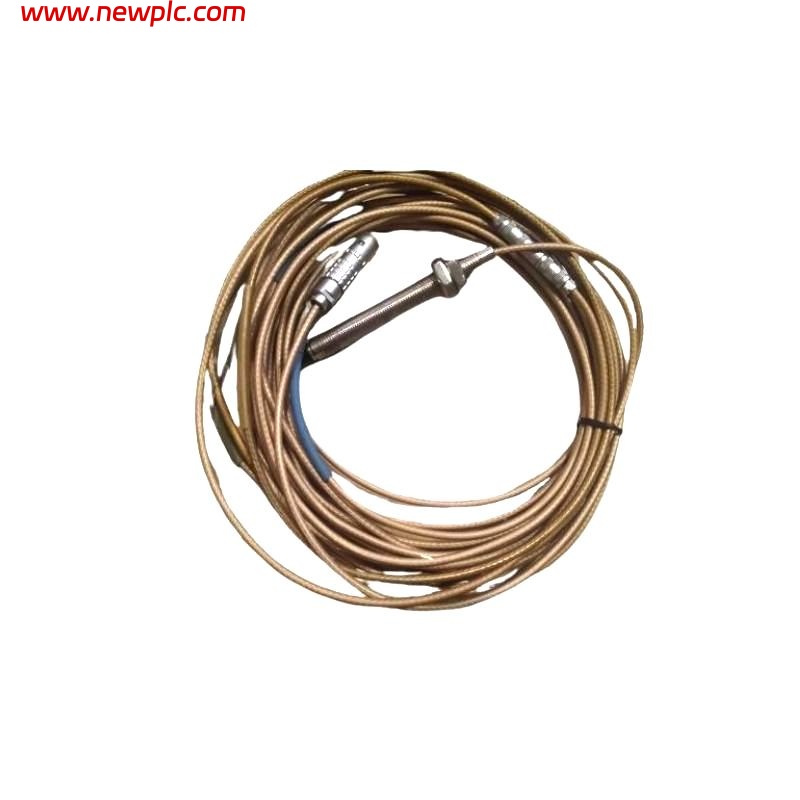

| Product Name | Eddy Current Sensor |
| Manufacturer | Epro (Emerson) |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy current induction, non‑contact measurement of metal target displacement or vibration |
| Linear Measurement Range | 2 mm (typical) |
| Initial Air‑Gap | 0.5 mm (typical) |
| Sensitivity | Approx. 8 V/mm (±5%) |
| Minimum Shaft Diameter | 25 mm (typical) |
| Operating Temperature Range | Probe with 1 m cable approx. ‑35 °C to +200 °C |
| Dimensions | Sensor head diameter 8 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What is the primary function of this sensor?
A1: It is used for non‑contact measurement of displacement or vibration of metal shafts or other metal components, providing precise feedback signals.
Q2: What is the probe diameter?
A2: 8 mm.
Q3: What is the measurement range?
A3: The typical linear measurement range is 2 mm.
Q4: What is the output form of the sensor?
A4: The probe outputs a voltage signal (sensitivity approx. 8 V/mm) which is then used in monitoring or control systems.
Q5: What is the operating temperature range?
A5: With 1 m cable, the probe can operate approximately from ‑35 °C to +200 °C.
Q6: What are its dimensions and weight?
A6: Sensor head diameter 8 mm; weight is 0.1 kg.
Q7: What are typical application scenarios?
A7: Commonly used for axial or radial displacement/vibration monitoring in rotating machinery such as turbines, generators, pumps and gearboxes.
Q8: What should be considered during installation?
A8: Ensure the probe is aligned with the metal target surface, keep initial air‑gap about 0.5 mm, secure the probe mount and avoid external disturbances.
