Technical Specifications
| Parameter | Specification |
|---|---|

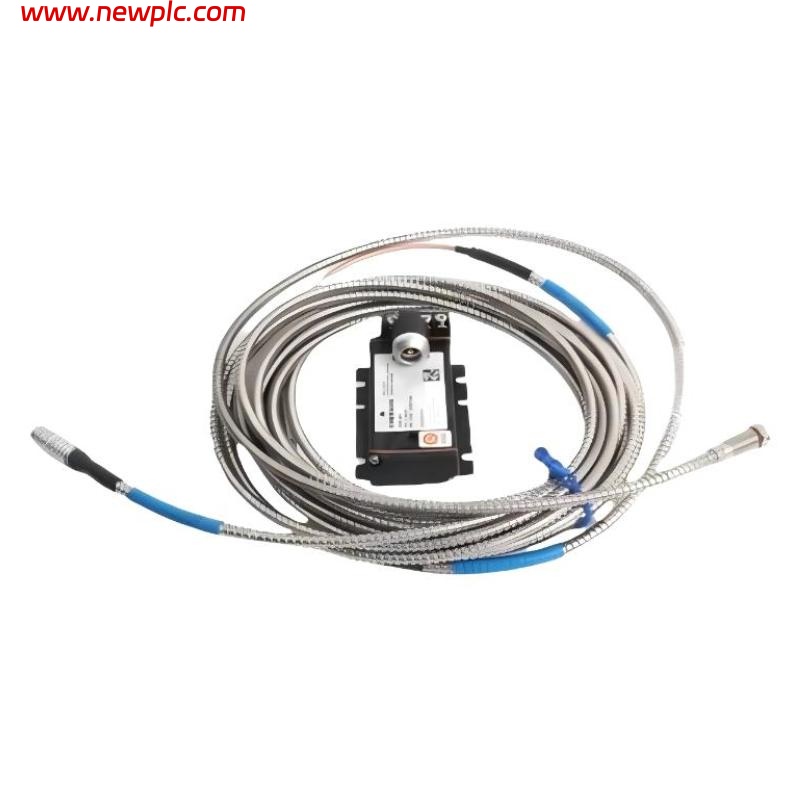

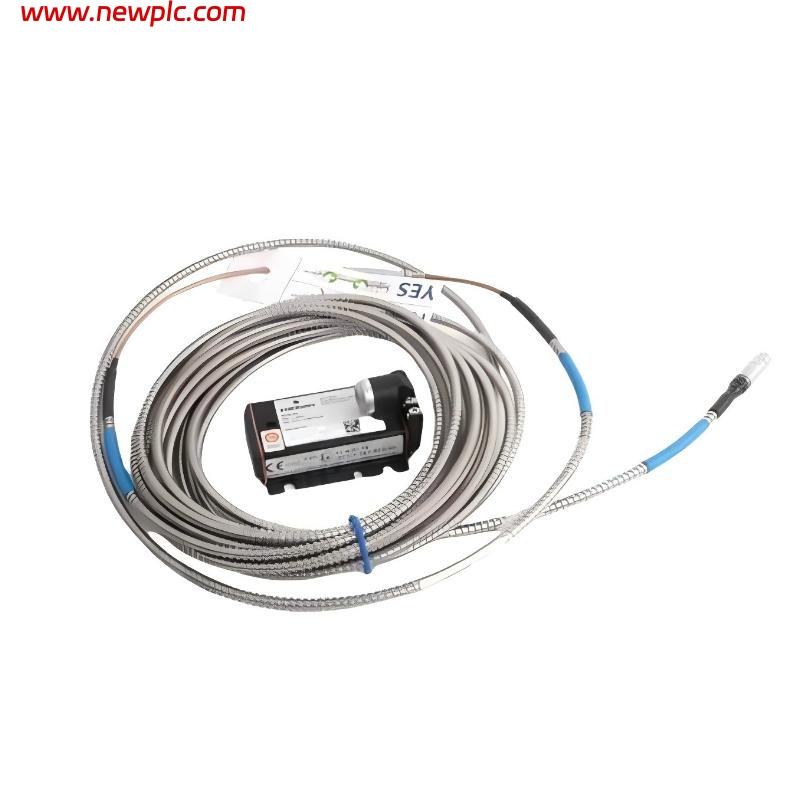

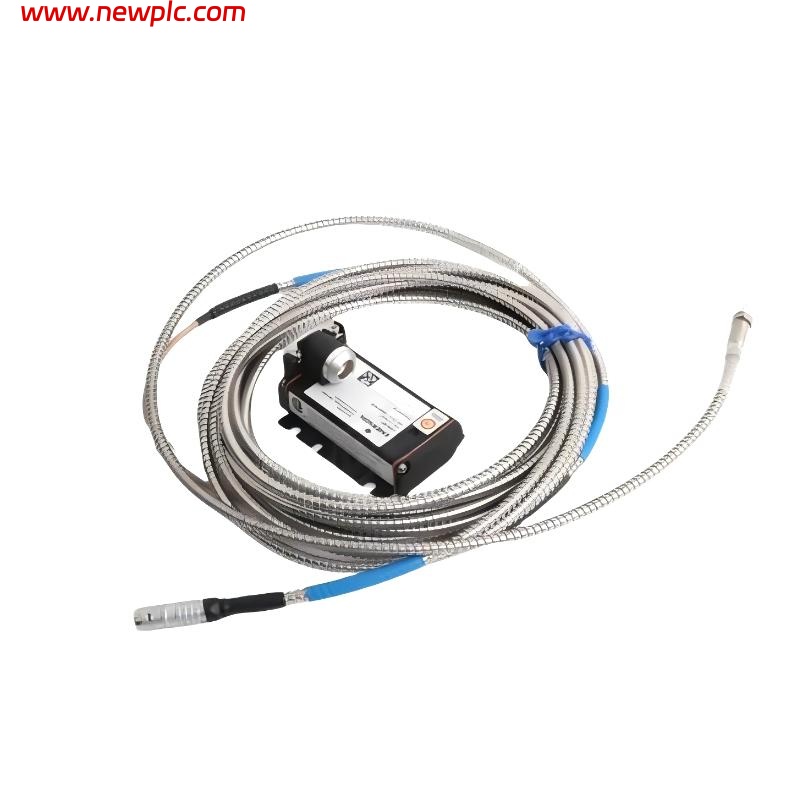

| Model Number | PR6423/010-020 |
| Brand | EPRO |
| Type | Eddy Current Sensor |
| Measurement Principle | Non-contact eddy current displacement measurement |
| Probe Diameter | 8 mm |
| Measurement Range | 0 to 2 mm |
| Sensitivity | 4 mV/μm |
| Frequency Range | 0 to 10 kHz |
| Linearity | ≤ ±1% of full-scale |
| Repeatability | ≤ ±0.5% of full-scale |
| Operating Temperature | -35°C to +180°C (-31°F to +356°F) |
| Storage Temperature | -40°C to +200°C (-40°F to +392°F) |
| Housing Material | Stainless steel |
| Output Signal | Differential voltage output |
| Power Supply | ±15 VDC via compatible CON module |
| Compatible Drivers | CON011, CON021 |
| Mounting Type | Threaded or clamp mount |
| Vibration Resistance | 20 g, 10–2000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Insulation Resistance | ≥10 MΩ @ 500 VDC |
| Protection Rating | IP67 |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
FAQ
FAQ
Q1: What is the main function of the Epro PR6423/010-020 sensor?
A1: It provides precise non-contact measurement of shaft displacement and vibration in rotating machinery.
Q2: What is the measurement range of this sensor?
A2: The sensor measures displacement from 0 to 2 mm.
Q3: Which signal conditioning modules are compatible with this sensor?
A3: It is compatible with Epro CON011 and CON021 modules for signal conditioning and output processing.
Q4: What materials can the sensor detect?
A4: The sensor is designed for conductive metallic targets such as steel and other ferromagnetic materials.
Q5: Can the sensor operate in harsh industrial environments?
A5: Yes, it has an IP67 rating, providing protection against dust, oil, and moisture.
Q6: How does the sensor handle vibration and shock?
A6: It is rated for 20 g vibration and 100 g shock, ensuring stable performance in industrial conditions.
Q7: How is long-term measurement accuracy maintained?
A7: Accuracy is ensured through robust stainless steel housing, temperature compensation, and precise factory calibration.
Q8: In what applications is the PR6423/010-020 typically used?
A8: It is commonly used in turbines, compressors, bearing monitoring, and predictive maintenance systems.
