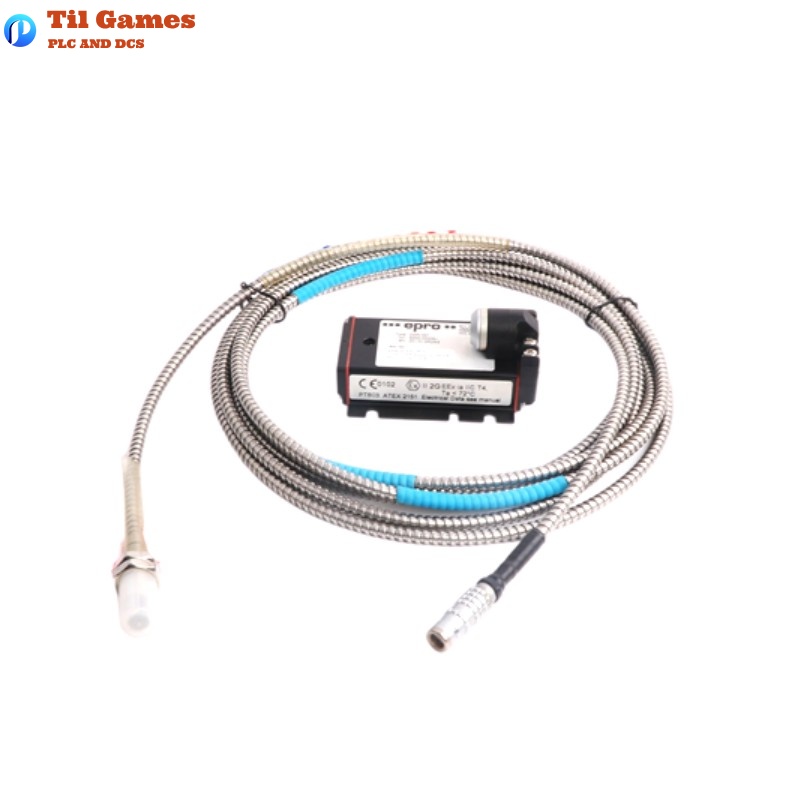

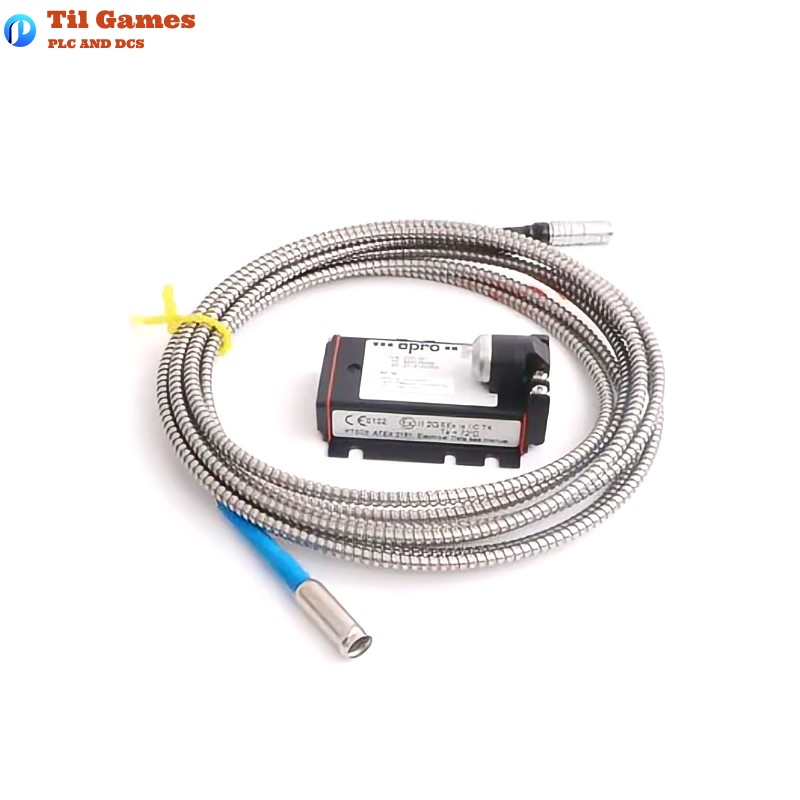

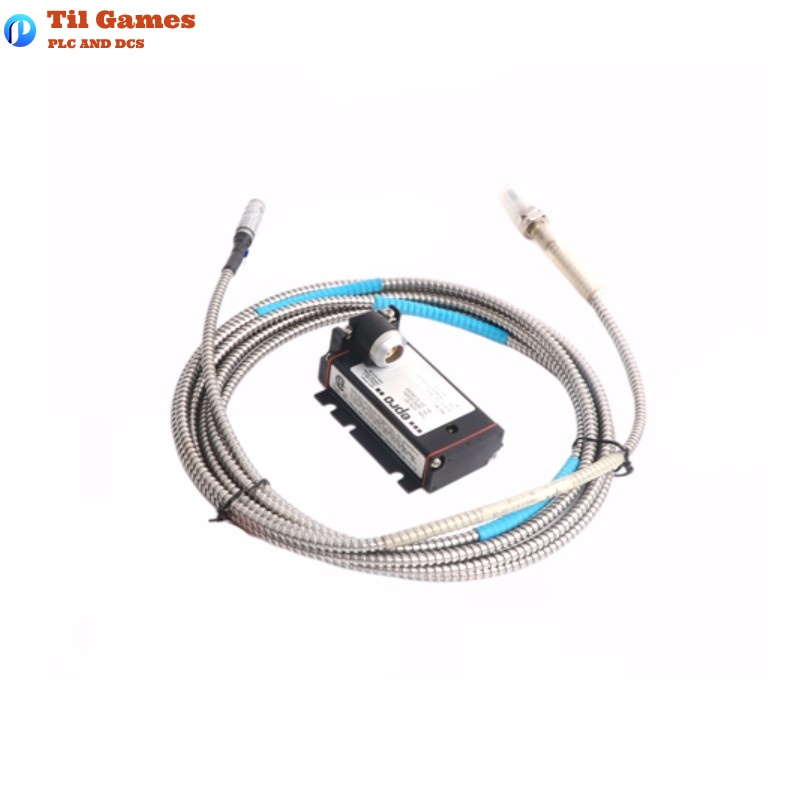

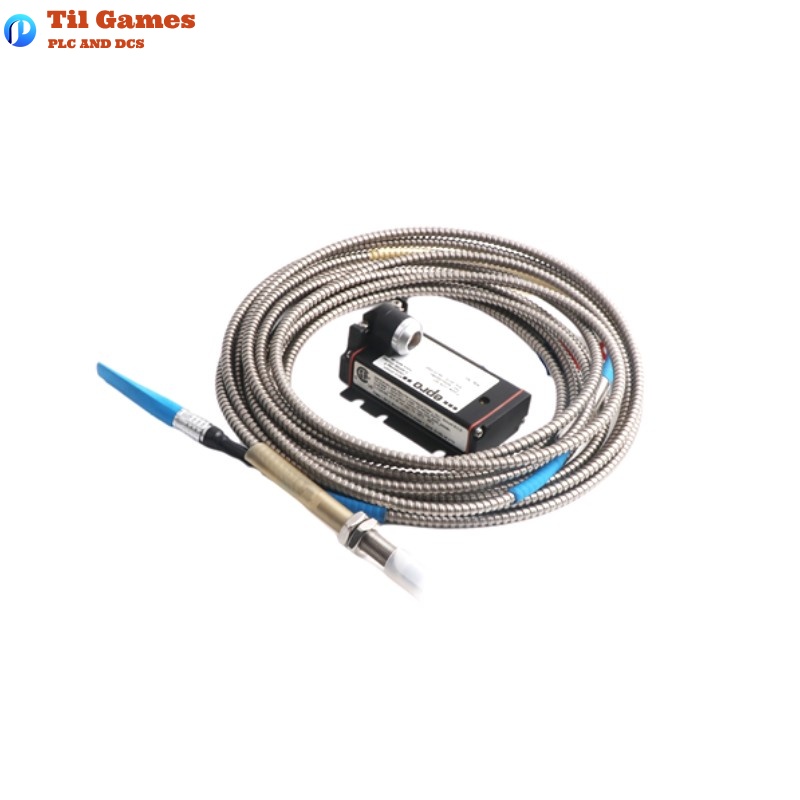

Epro PR6423/011-010 + CON021 Eddy Current Sensor + Signal Converter
Technical Specifications
PR6423/011-010 Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ±5%, Temp. 0 to 45°C |
| Linearity Deviation | ±0.025 mm (±1 mil), Temp. 0 to 45°C |
| Minimum Shaft Diameter | 25 mm (0.79 in) |
| Target Material | Ferromagnetic steel (42CrMo4, AISI/SAE 4140) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature | -35°C to +180°C (Sensor incl. 1m cable) |
| Cable Temperature Range | -35°C to +150°C |
| Material | PEEK Tip, Stainless Steel Housing, PTFE Cable, Nickel Brass Connector |
| Diameter (Sensor Tip) | 8 mm |
| Weight | Approx. 100 g (0.22 kg) |
| Thread Options | M10x1 or 3/8-24UNF |
| Certifications | CE, ATEX, IECEx, CSA, UL |
| Temperature Classes | T6 ≤ 64°C, T4 ≤ 114°C, T3 ≤ 160°C |
CON021 Signal Converter
| Parameter | Specification |
|---|---|
| Frequency Range (-3 dB) | 0 to 20000 Hz |
| Rise Time | < 15 μs |
| Supply Voltage | -23V to -32V (Output -4V to -20V) -21V to -32V (Output -2V to -18V) |
| Operating Temperature | -30°C to +100°C |
| Protection Class | IP20 |
| Mounting | Panel mount, 4 x M5 screws included |
| Housing Material | LMgSi 0.5 F22 (Magnesium-Aluminum Alloy) |
| Weight | Approx. 120 g (0.12 kg) |
| Input Connection | Self-locking Lemo plug |
| Output/Power Connection | Screw terminal (max. 1.5mm² wire) |
| Compatible Sensors | PR6422, PR6423, PR6424, PR6425, PR6426 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the typical applications of PR6423/011-010?
A1: It is used for measuring shaft vibration and displacement in turbines, compressors, gearboxes, and fans.
Q2: What are the available thread sizes for PR6423?
A2: The sensor is available with M10x1 and 3/8-24UNF thread options.
Q3: Which sensors are supported by CON021?
A3: The CON021 is compatible with PR6422, PR6423, PR6424, PR6425, and PR6426.
Q4: What is the operating temperature range of the system?
A4: Sensor: -35°C to +180°C; Converter: -30°C to +100°C.
Q5: Is PR6423 certified for hazardous areas?
A5: Yes, it holds certifications such as ATEX, IECEx, CSA, and UL for hazardous environments.
Q6: What is the output voltage range of the CON021 converter?
A6: -2V to -18V or -4V to -20V depending on the supply voltage.
Q7: What type of connector is used between the sensor and converter?
A7: A self-locking Lemo plug is used for reliable connection.
Q8: Is extended measurement range available?
A8: Yes, models like CON021/913-030 support extended measurement ranges beyond standard.
