Technical Specifications
| Parameter | Value |
|---|---|

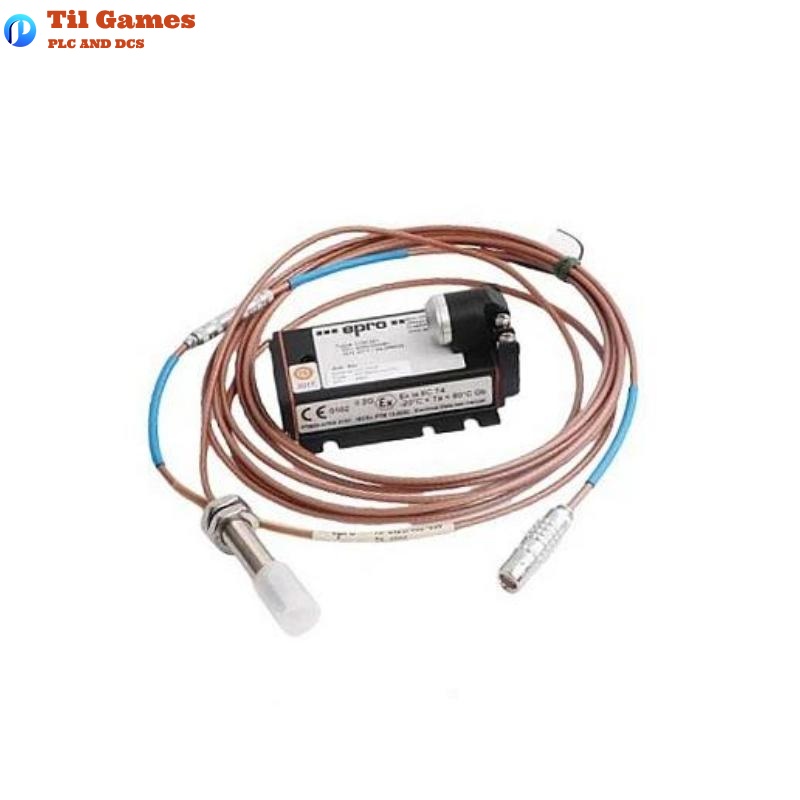

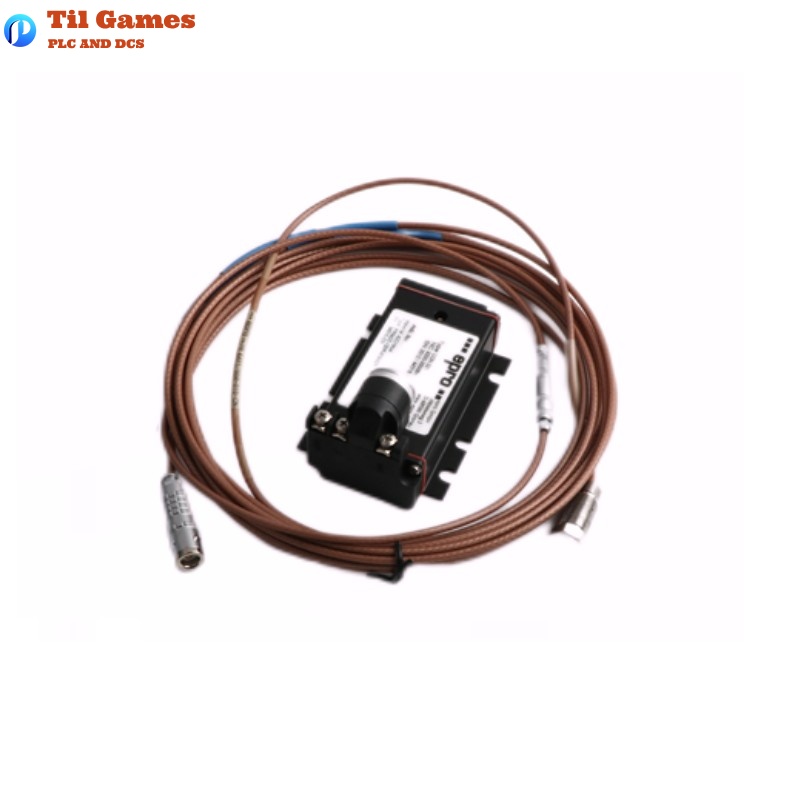

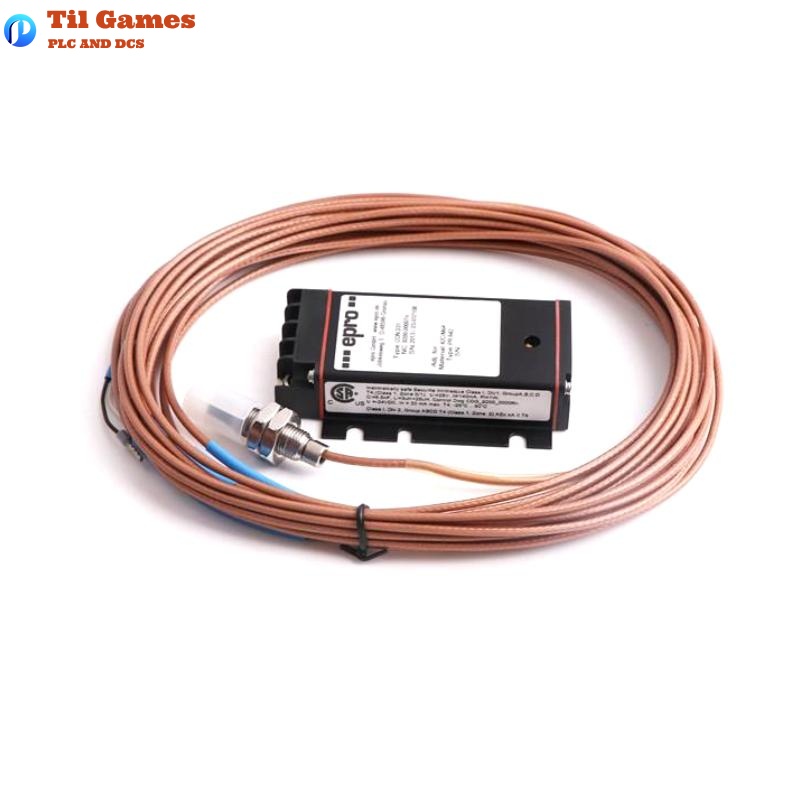

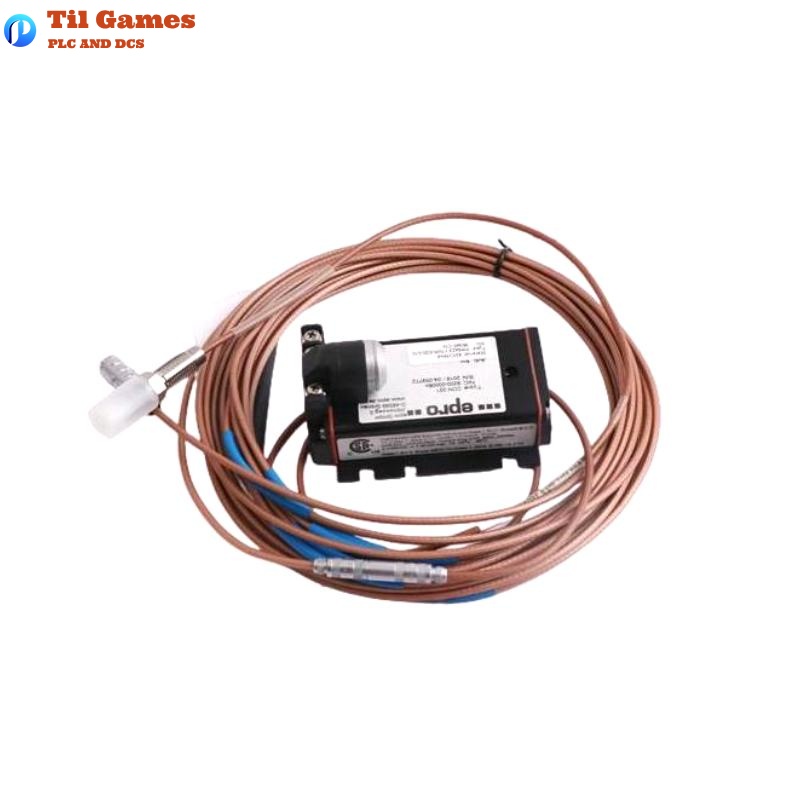

| Model | Epro PR6423/013-110 |
| Sensor Type | Eddy Current Sensor (Non-contact) |
| Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor | 8 V/mm (203.2 mV/mil) ±5% (0°C to +45°C) |
| Deviation from Best Fit Line (DSL) | ±0.025 mm (±1 mil) (0°C to +45°C) |
| Minimum Shaft Diameter | 25 mm (0.79″) |
| Target Material | Standard: 42CrMo4 (AISI 4140) |
| Protection Class | IP66 (IEC 60529) |
| Operating Temperature | Sensor with 1m cable: -35°C to +180°C |
| Cable & Connector: -35°C to +150°C | |
| Materials | Sensor Tip: PEEK, Case: Stainless Steel |
| Cable: PTFE, Connector: Nickel-plated Brass | |
| Weight | Approx. 0.1 kg (with 1-meter cable) |
| Probe Tip Diameter | 8 mm |
| Thread Options | M10x1 or 3/8-24 UNF |
| Standard Cable Diameter | 2.8 mm, Min Bend Radius: 25 mm |
| Armored Cable Diameter | 6 mm, Min Bend Radius: 35 mm |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL, RoHS compliant |
| Hazardous Area Ratings | Intrinsically Safe (ia), Non-sparking (nA) |
| Temperature Ratings in Hazardous Areas | T6: Ta ≤ 64°C; T4: Ta ≤ 114°C; T3: Ta ≤ 160°C |
FAQ
FAQ
Q1: What equipment is the Epro PR6423/013-110 sensor suitable for?
A1: It is used in critical rotating machinery such as steam turbines, gas turbines, hydro turbines, compressors, gearboxes, pumps, and fans.
Q2: What is the linear measurement range of the sensor?
A2: The linear measurement range is 2 mm (80 mils).
Q3: Is it suitable for hazardous areas?
A3: Yes, it complies with ATEX, IEC-Ex, CSA certifications for Intrinsic Safety (ia) and Non-sparking (nA) areas.
Q4: Can it measure both axial and radial displacement?
A4: Yes, the PR6423 is designed to measure both radial and axial shaft displacement, position, eccentricity, and speed.
Q5: What is the operating temperature range?
A5: The sensor operates between -35°C and +180°C; the cable and connector up to +150°C.
Q6: Can the cable length be customized?
A6: Yes, available cable lengths include 4.0m, 5.0m, 8.0m, 9.0m, 10.0m with up to +10% tolerance.
Q7: What material is the sensor made of? Is it corrosion-resistant?
A7: The sensor housing is made of stainless steel, offering high corrosion resistance for industrial use.
Q8: What is the weight of the sensor?
A8: The sensor weighs approximately 0.1 kg including 1 meter of cable.
