Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Model | Epro PR6424/010‑010 |
| Converter Model | CON021 |
| Probe Diameter | 16 mm |
| Recommended Air Gap | 2.7 mm |
| Sensitivity / Linearity | 4 V/mm ±1.5% |
| Static Measurement Range | ±2.0 mm |
| Dynamic Measurement Range | 0 – 1000 µm |
| Long Term Drift | <0.3% |
| Target Material | Ferromagnetic steel |
| Maximum Surface Velocity | 2.5 m/s |
| Shaft Diameter Requirement | ≥80 mm |
| Operating Temperature | Sensor: –35°C – +180°C, Converter: –30°C – +100°C |
| Temperature Error | <4% / 100 K |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.32 kg |
FAQ
FAQ

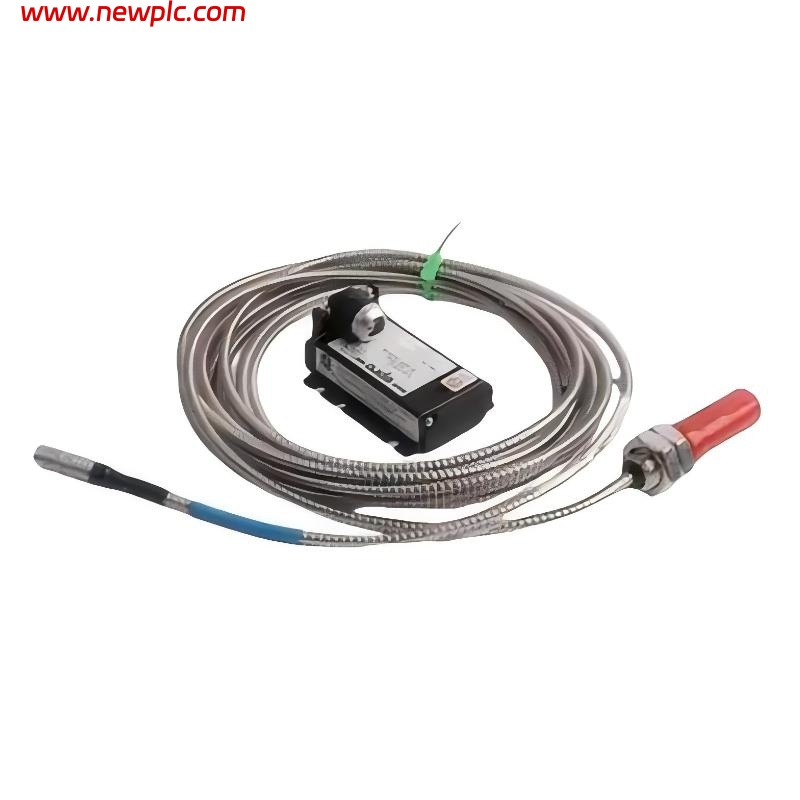

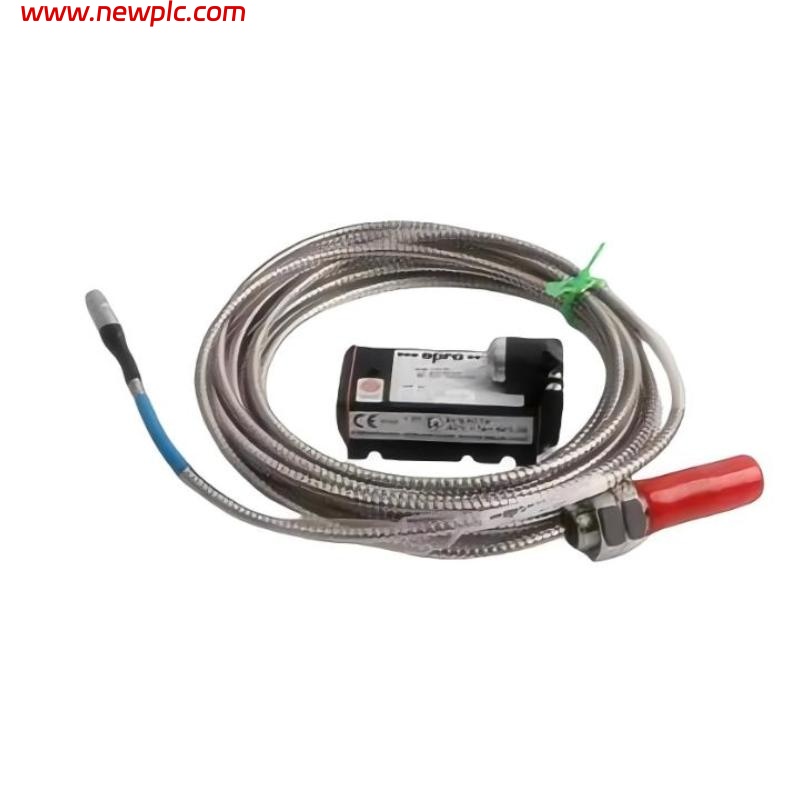

Q1: What is the PR6424/010‑010 + CON021 system?
A1: It is an eddy current non-contact displacement/vibration sensor system, with PR6424/010‑010 as the 16 mm probe and CON021 as the signal converter.
Q2: What is the measurement range of the sensor?
A2: Static range ±2.0 mm, dynamic range 0 – 1000 µm.
Q3: What is the recommended air gap?
A3: Nominal recommended air gap is approximately 2.7 mm.
Q4: What is the sensitivity and linearity?
A4: Sensitivity is about 4 V/mm, linearity error maximum ±1.5%.
Q5: What is the operating temperature range of the system?
A5: Sensor: –35°C to +180°C, Converter: –30°C to +100°C.
Q6: What target materials are suitable?
A6: Ferromagnetic steel, such as 42CrMo4.
Q7: What are the dimensions and weight?
A7: Sensor head diameter 16 mm, and weight is 0.2 kg.
Q8: What is the protection class?
A8: Sensor IP66, Converter IP20.
