Technical Specifications
| Item | Specification |
|---|---|

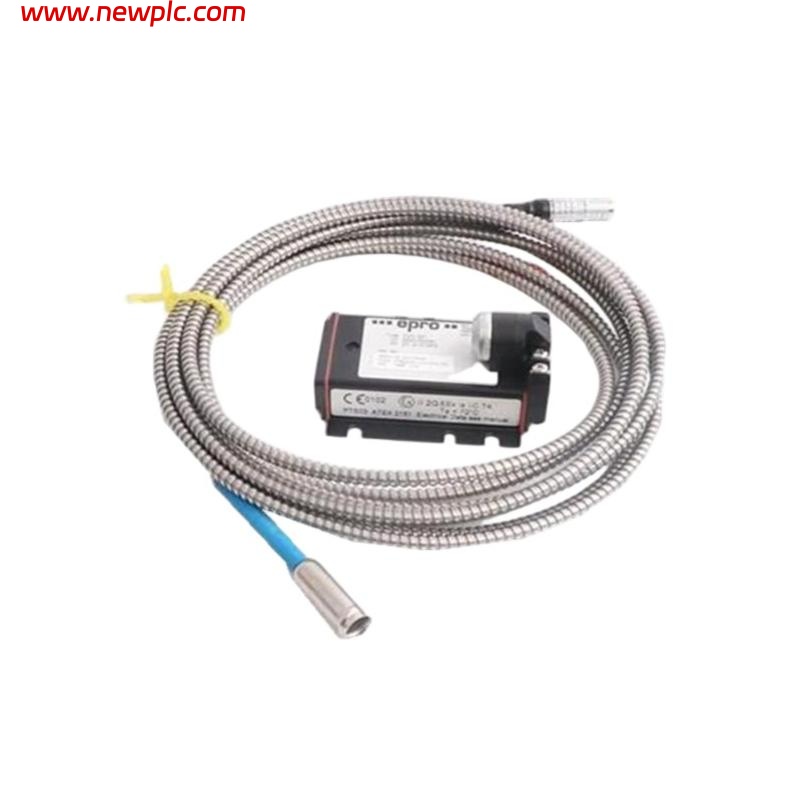

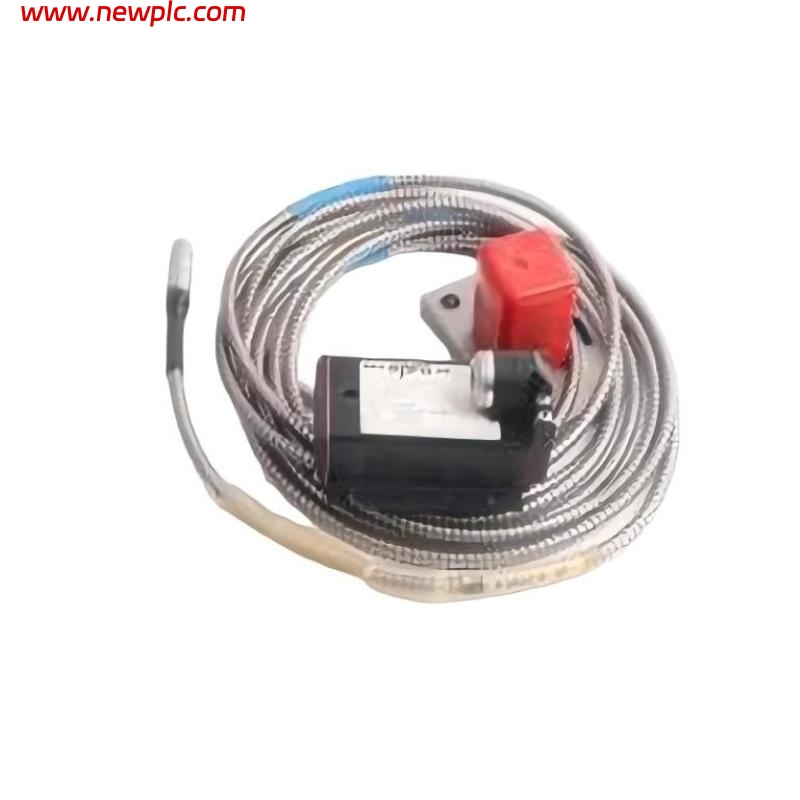

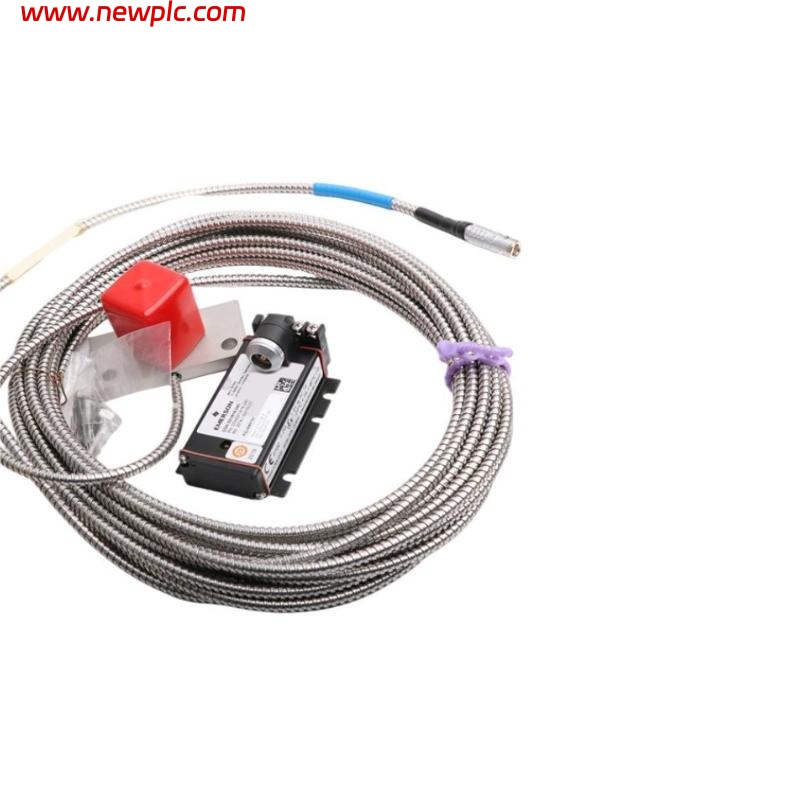

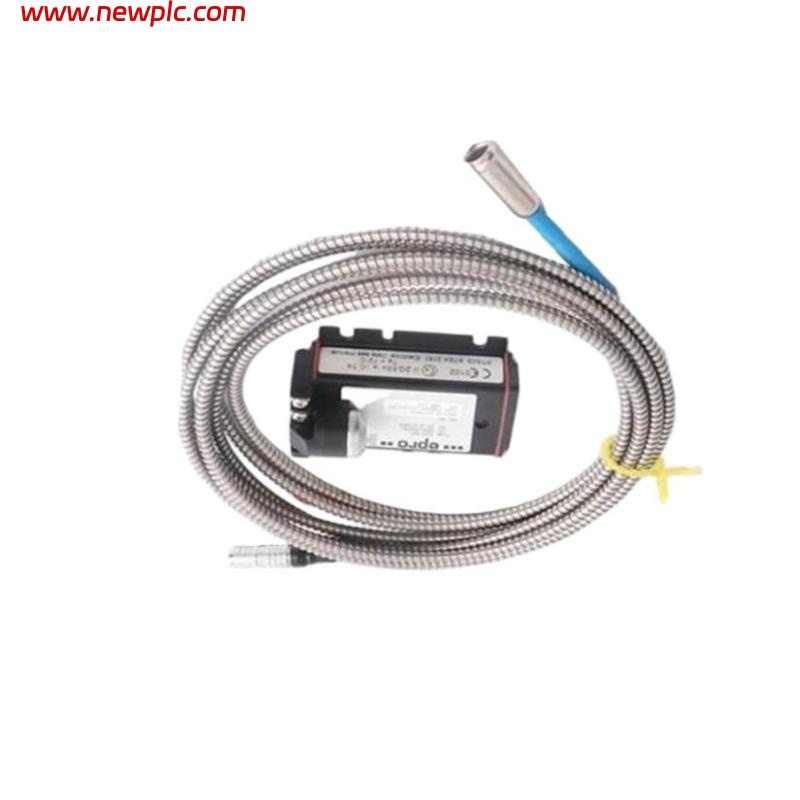

| Model | Epro PR6424/010-110 + CON021 |
| Sensor Type | Eddy Current Sensor |
| Probe Diameter | 16 mm |
| Measurement Range | Static ±2.0 mm, Dynamic 0–1,000 µm |
| Output Type | Voltage output |
| Sensitivity | 4 V/mm |
| Linearity Error | ±1.5% max |
| Nominal Air Gap | Approx. 2.7 mm |
| Calibration Target | Ferromagnetic steel (e.g., 42CrMo4) |
| Minimum Shaft Diameter | ≥ 80 mm |
| Maximum Surface Speed | ≥ 2,500 m/s |
| Operating Temperature | Sensor -35°C to +180°C; Converter -30°C to +100°C |
| Response Time | < 1 ms |
| Signal Converter | CON021 |
| Converter Frequency Range | 0–20,000 Hz |
| Converter Rise Time | < 15 µs |
| Converter Supply | -23 V to -32 V DC |
| Converter Output | -4 V to -20 V DC |
| Mounting Method | Threaded mounting |
| Connection | Includes CON021 connector cable |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.32 kg |
FAQ
FAQ
Q1: What is the purpose of the PR6424/010-110 + CON021 system?
A1: It is used for high-precision measurement of shaft displacement, eccentricity, and vibration in rotating machinery.
Q2: What is the measurement range of the system?
A2: Static ±2.0 mm, Dynamic 0–1,000 µm.
Q3: What is the sensitivity and linearity performance?
A3: Sensitivity is 4 V/mm with linearity error up to ±1.5%.
Q4: What is the recommended installation air gap?
A4: Nominal air gap is approximately 2.7 mm.
Q5: Which target material is suitable?
A5: Ferromagnetic steel, such as 42CrMo4.
Q6: What is the signal converter’s frequency response and rise time?
A6: Frequency range 0–20,000 Hz, rise time < 15 µs.
Q7: Can the system operate in extreme temperatures?
A7: Yes, sensor -35°C to +180°C, converter -30°C to +100°C.
Q8: Are there any mechanical requirements for installation?
A8: Target shaft diameter ≥ 80 mm, maintain ~2.7 mm air gap, and ensure proper connector and cable installation.
