Technical Specifications
| Item | Specification |
|---|---|

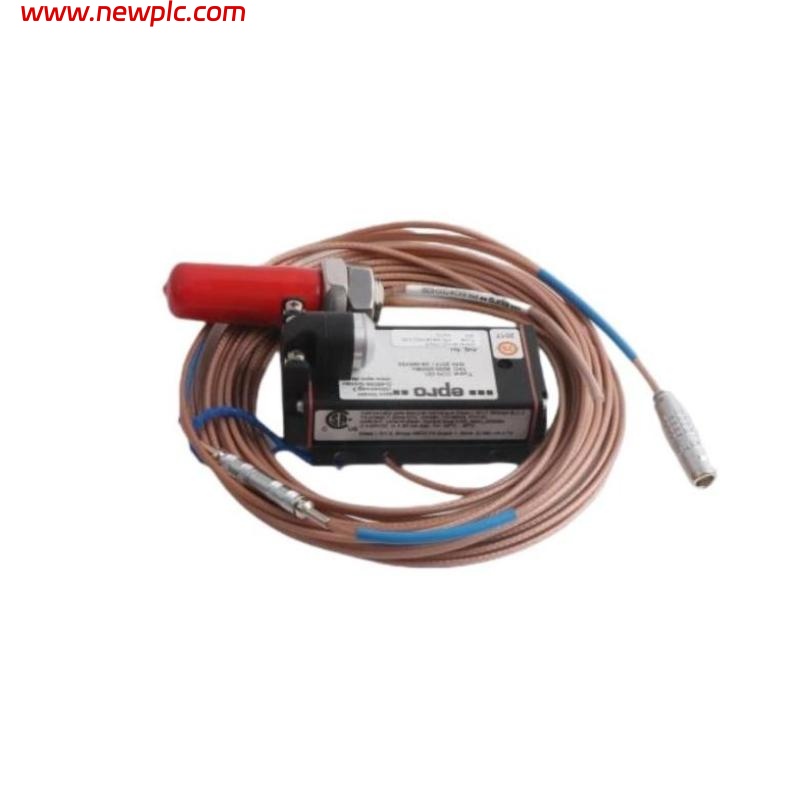

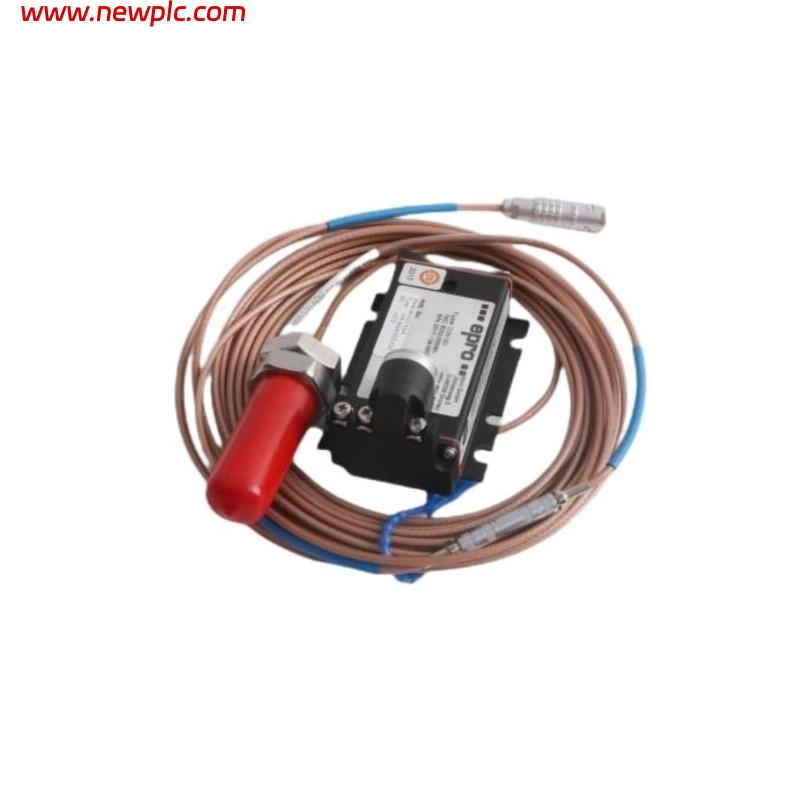

| Product Model | Epro PR6424/013-030 |
| Product Type | Eddy Current Displacement Sensor |
| Probe Diameter | 16 mm |
| Measurement Range | 4 mm to 5 mm (typical) |
| Sensitivity | 8 mV/μm |
| Linearity Error | ≤ ±1% of full scale |
| Frequency Response | 0 to 10 kHz |
| Response Time | < 1 ms |
| Power Supply | Provided by PR6423 or PR6426 driver |
| Output Signal | Voltage proportional to displacement |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Mounting Thread | M16 × 1 |
| Compatible Drivers | Epro PR6423, PR6426 |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What type of sensor is the Epro PR6424/013-030?
A1: It is a 16 mm eddy current displacement sensor designed for non-contact measurement of metal target displacement or vibration.
Q2: What is the measurement range of this model?
A2: The typical measurement range is 4 mm to 5 mm, depending on the driver and installation conditions.
Q3: How is the sensor powered?
A3: The sensor is powered through a driver unit such as PR6423 or PR6426.
Q4: What is the output signal type?
A4: It provides a voltage signal proportional to the measured displacement, suitable for vibration monitoring systems.
Q5: What is the protection rating?
A5: The sensor is rated IP67, allowing operation in harsh or humid industrial environments.
Q6: What is the operating temperature range?
A6: Operating temperature range is -35°C to +180°C, storage range is -40°C to +200°C.
Q7: What is the housing material?
A7: The housing is made of high-strength stainless steel, ensuring corrosion resistance and durability.
Q8: Which drivers are compatible with this sensor?
A8: It is compatible with Epro PR6423 and PR6426 driver modules.
