Technical Specifications
| Parameter | Description |
|---|---|

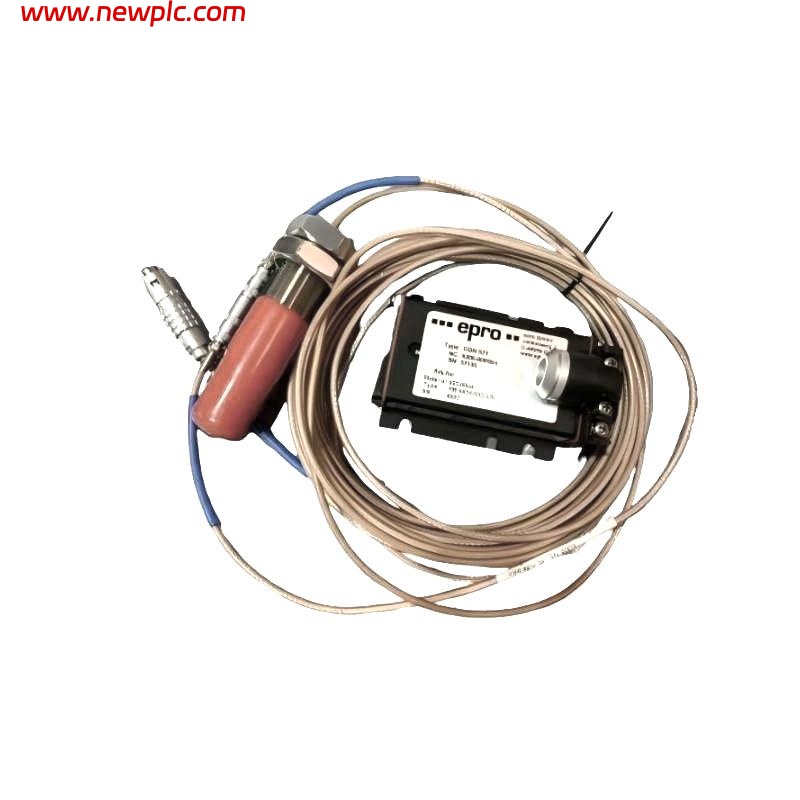

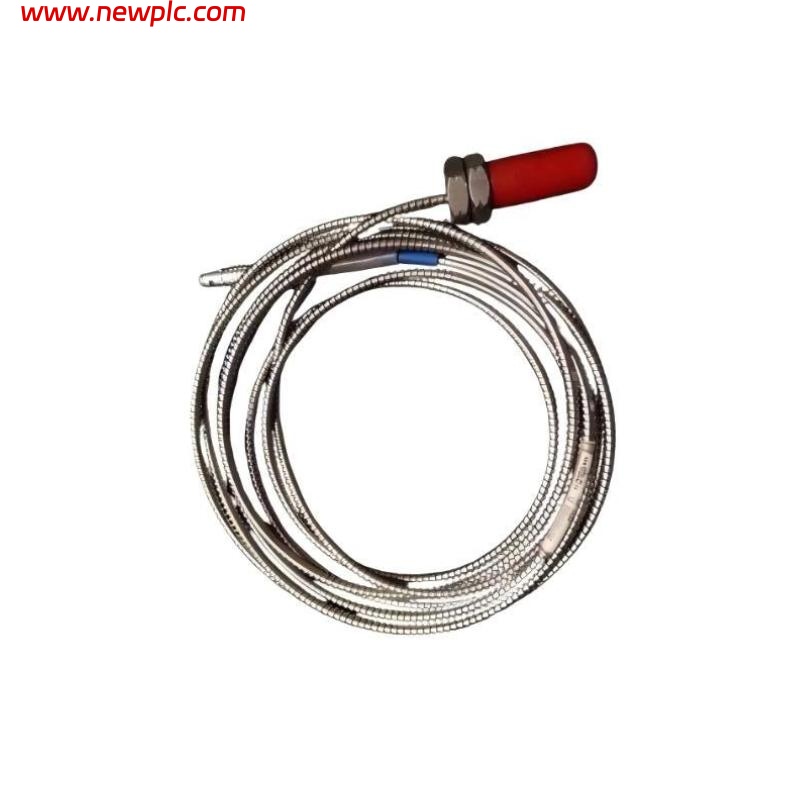

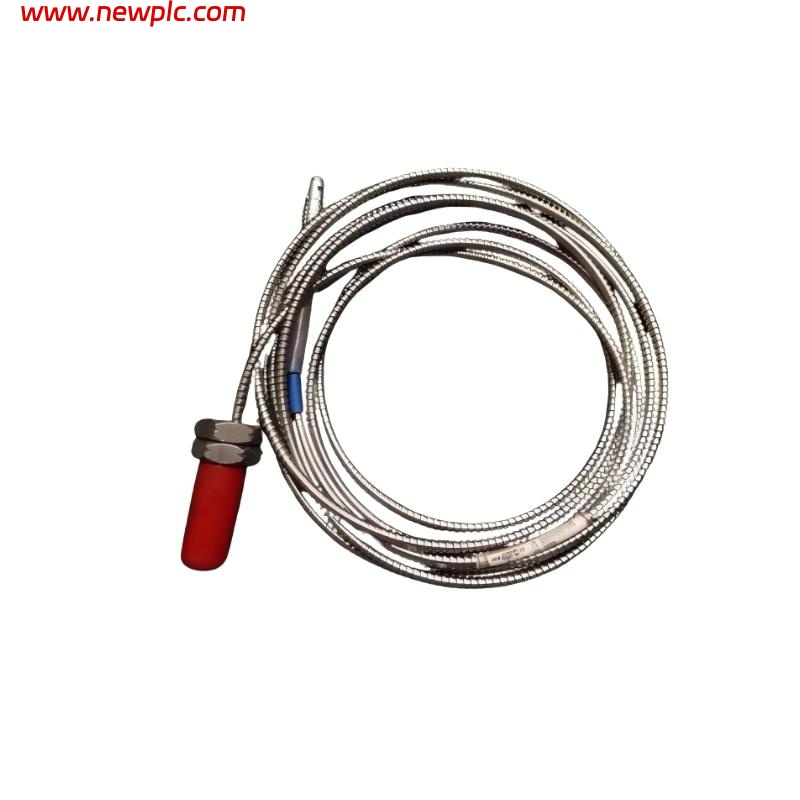

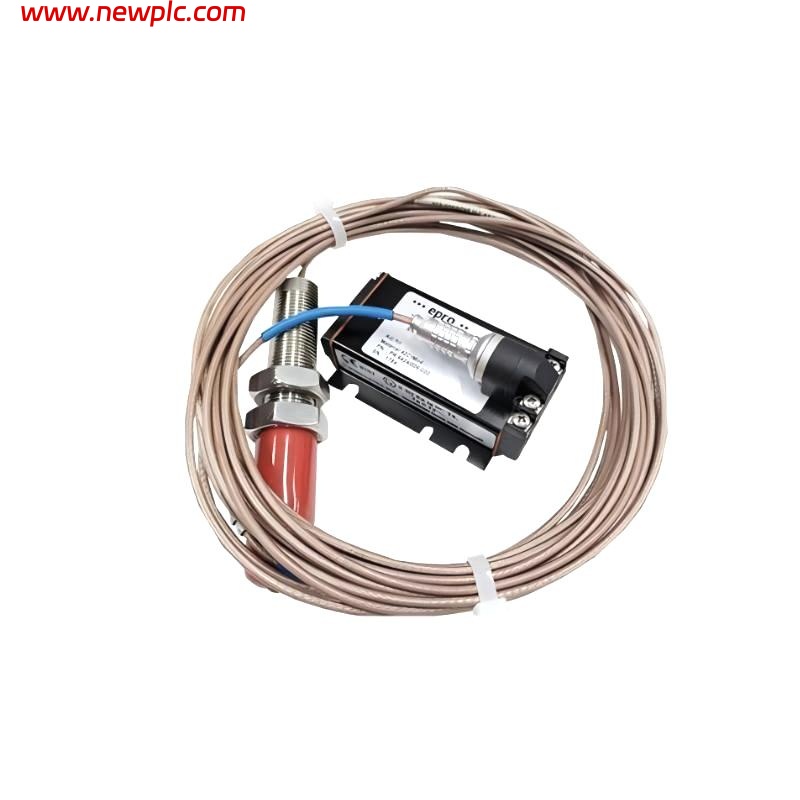

| Model | Epro PR6424/019-000 |
| Type | 16 mm Eddy-current non-contact displacement / vibration sensor |
| Measuring Principle | Eddy current |
| Static Measurement Range | ±2.0 mm |
| Dynamic Measurement Range | 0 – 1,000 μm |
| Sensitivity | Approx. 4 V/mm (typical) |
| Linearity | Within ±1.5% (typical) |
| Recommended Air Gap | Approx. 2.7 mm at center position |
| Target Material | Ferromagnetic metals (carbon steel, alloy steel) |
| Minimum Shaft Diameter | ≥ 80 mm |
| Maximum Surface Speed | Suitable for high-speed rotating machinery |
| Operating Temperature | –35 °C to +180 °C |
| Vibration / Shock Resistance | Industrial-grade anti-vibration design |
| Housing | Stainless steel |
| Cable | High-temperature-resistant insulated cable |
| Output | Requires compatible proximitor/converter module |
| Applications | Turbines, compressors, pumps, fans; shaft displacement and vibration monitoring |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What machinery is the PR6424/019-000 suitable for?
A1: Commonly used in turbines, compressors, pumps, and other rotating machinery for shaft displacement and vibration monitoring.
Q2: Is this sensor contact or non-contact?
A2: It is a non-contact eddy-current sensor and does not touch the shaft surface.
Q3: What is the measurement range?
A3: Static displacement ±2.0 mm; dynamic vibration range 0–1,000 μm.
Q4: Can the signal be used directly?
A4: No. A compatible proximitor or converter is required for signal processing.
Q5: What target material is required?
A5: Ferromagnetic metals such as carbon steel or alloy steel.
Q6: What is the operating temperature range?
A6: –35 °C to +180 °C.
Q7: What is the recommended installation air gap?
A7: About 2.7 mm for optimal linearity and sensitivity.
Q8: Can the probe or cable length be customized?
A8: Yes. Multiple length options are available depending on installation needs.
