Technical Specifications
| Parameter | Description |
|---|---|
| Model | PR6424/019-121 |

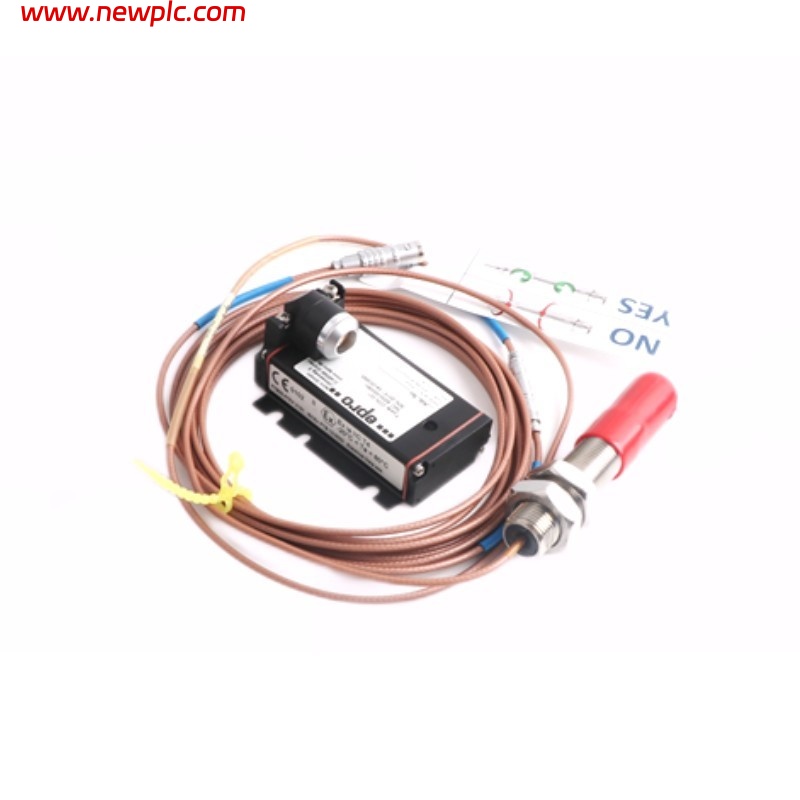

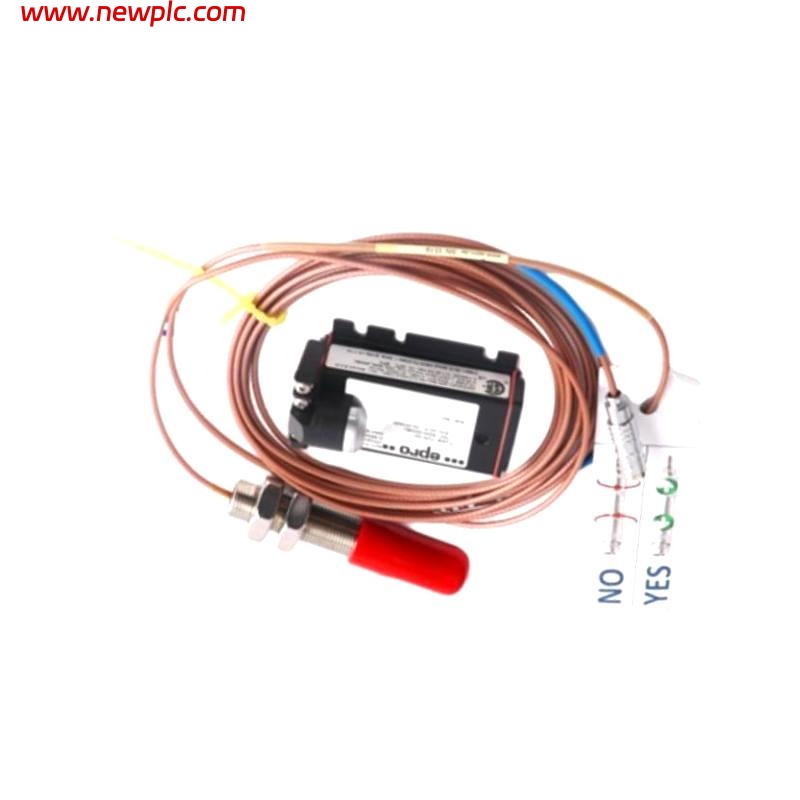

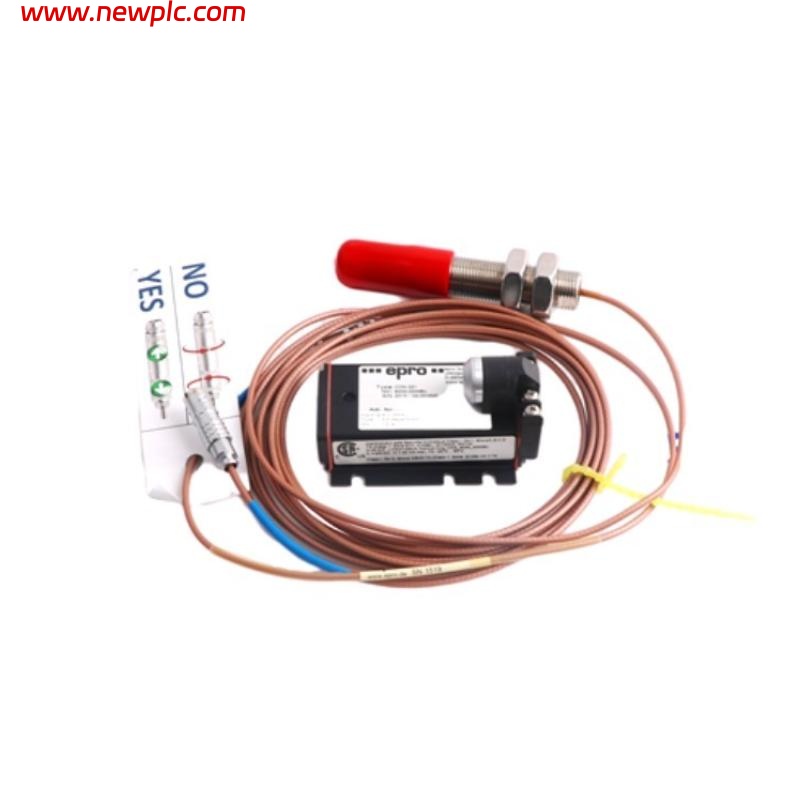

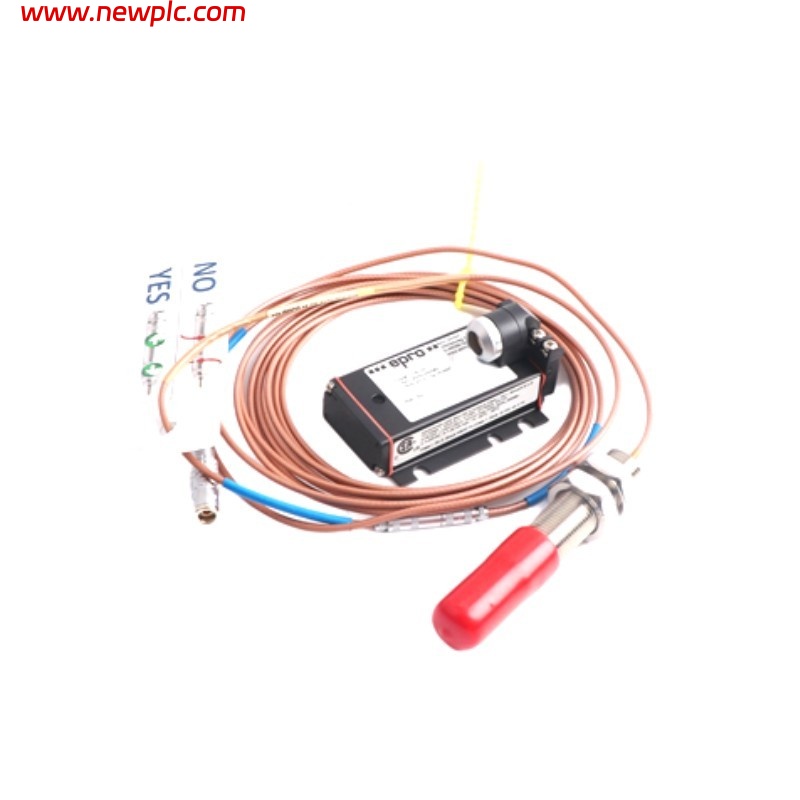

| Sensor Type | 16 mm eddy-current non-contact displacement / vibration sensor |
| Tip Diameter | 16 mm |
| Measuring Range | ±2.0 mm (static) |
| Dynamic Range | 0 – 1,000 μm (vibration/displacement) |
| Sensitivity | ~4 V/mm (typical) |
| Linearity Error | ≤ ±1.5% |
| Recommended Air Gap | ~2.7 mm (nominal) |
| Target Material | Ferromagnetic metal (e.g., alloy steel) |
| Minimum Shaft Diameter | ≥ 80 mm |
| Operating Temperature | –35°C to +180°C |
| Vibration / Shock Resistance | Industrial-grade resistance to vibration and shock |
| Housing Material | Stainless steel |
| Cable Type | Shielded, high-temperature cable |
| Output Signal | Eddy-current analog signal (requires compatible driver module) |
| Compatible Drivers | CON021 / CON031 / CON041 or equivalent |
| Application | Shaft displacement, vibration, eccentricity, and position monitoring in rotating machinery |
| Dimensions | Sensor head diameter 16 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What does the “121” code represent?
A1: It identifies a specific configuration, typically indicating a longer probe length (about 120 mm) or a special cable arrangement.
Q2: Is this sensor contact or non-contact?
A2: Non-contact; it measures through the air gap using eddy-current principle without touching the shaft.
Q3: What is the static and dynamic measurement range?
A3: Static ±2.0 mm; dynamic 0–1,000 μm.
Q4: What is the minimum shaft diameter required?
A4: Shaft diameter should be at least 80 mm for proper clearance and accurate measurement.
Q5: What air gap is recommended for installation?
A5: About 2.7 mm nominal for stable linear response.
Q6: What temperature and environmental conditions can the sensor withstand?
A6: It can operate from –35°C to +180°C and is resistant to industrial vibration and shock.
Q7: What output does the sensor provide and how is it used?
A7: It outputs an analog eddy-current signal; a compatible driver module is needed to convert it for monitoring systems.
Q8: For what machinery is this sensor suitable?
A8: Suitable for turbines, compressors, pumps, fans, and other rotating machinery to monitor shaft displacement, vibration, eccentricity, and axial/radial position.
