Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / EPRO |

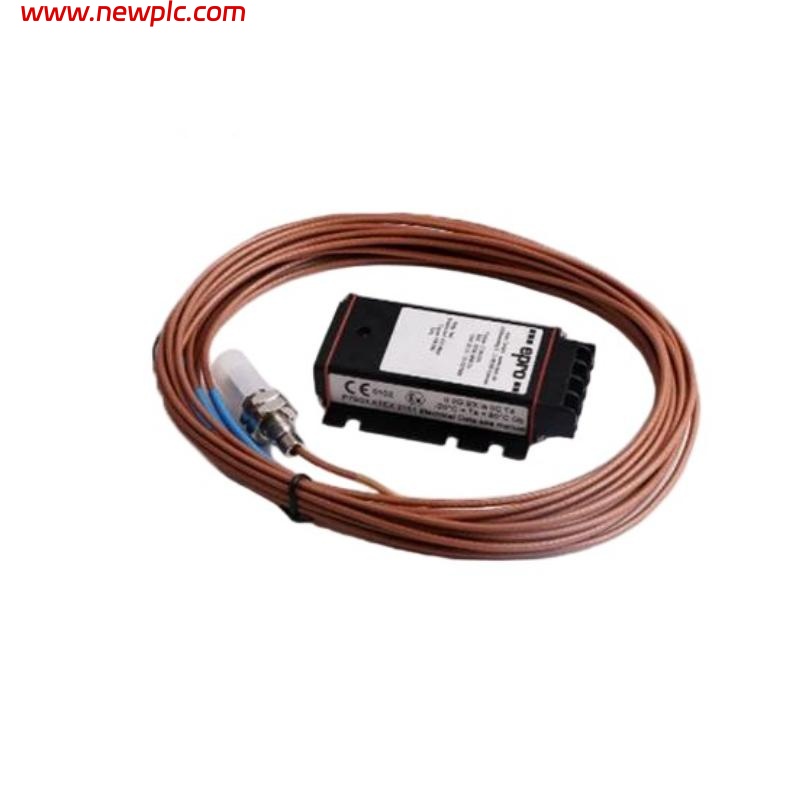

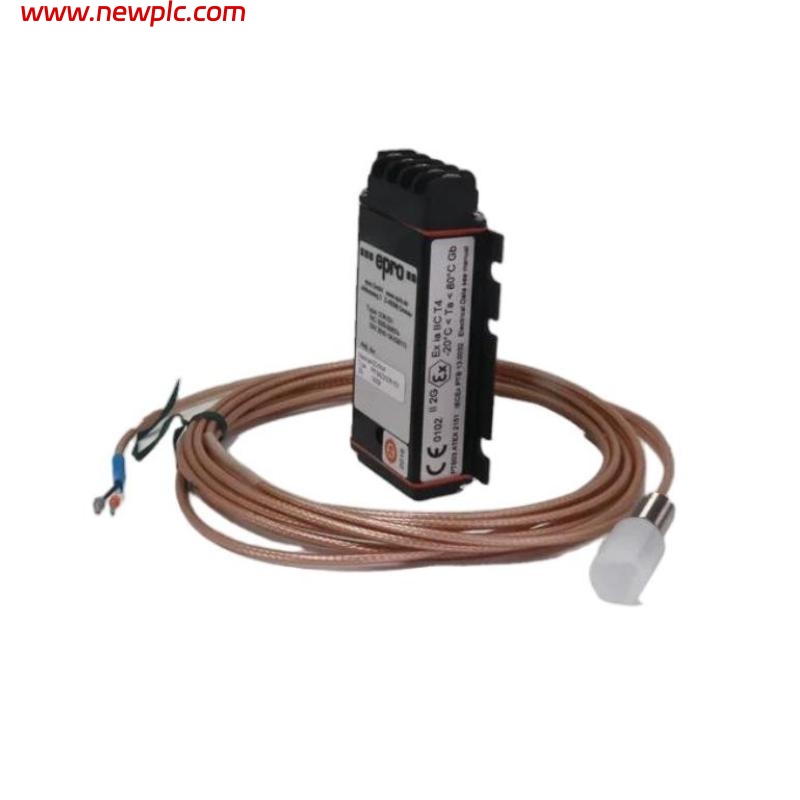

| Model Number | PR6424/113‑100 |
| Product Type | Eddy Current Displacement Sensor |
| Sensor Category | Non‑contact eddy current sensor |
| Measurement Principle | Electromagnetic induction for shaft vibration/displacement |
| Nominal Air Gap | ~2.7 mm |
| Sensitivity | ~4 V/mm (101.6 mV/mil), ±1.5 % typical |
| Static Measurement Range | ±2 mm |
| Dynamic Measurement Range | Up to 1000 µm |
| Target Material | Ferromagnetic steel shafts (e.g., 42CrMo4) |
| Recommended Shaft Diameter | ≥ 80 mm |
| Maximum Surface Speed | Up to 2500 m/s |
| Operating Temperature | −35 °C to +180 °C |
| Temperature Effect | < 4 % per 100 K |
| Pressure Resistance | Up to ~10 000 hPa |
| Shock Resistance | ~5 g at 60 Hz |
| Vibration Resistance | Compatible with industrial vibration environments |
| Output Interface | Used with signal conditioning/converter units |
| Connector Type | LEMO or equivalent industrial connector |
| Cable Type | Shielded sensor cable, PTFE insulation |
| Thread / Mount | M18 × 1.5 mounting thread |
| Sensor Length | Approx. 40 mm – 290 mm depending on cable variant |
| Weight (Sensor Only) | Approx. 0.20 kg |
| Typical Application | Turbine, compressor, pump, fan vibration/displacement monitoring |
| Industrial Standards | API 670 compatible performance levels |
| Compliance | Designed for harsh industrial environments |
FAQ
FAQ
Q1. What is the PR6424/113‑100 sensor used for?
It is a non‑contact eddy current displacement sensor used to measure shaft vibration, displacement, and eccentricity in rotating machinery.
Q2. What industries typically use this type of sensor?
Common industries include power generation, oil & gas, petrochemical, and heavy industrial machinery applications.
Q3. What measurement range does the sensor support?
The sensor provides a static displacement range of ±2 mm and a dynamic measurement capability up to about 1000 µm.
Q4. What sensitivity can be expected from this sensor model?
Sensitivity is approximately 4 V/mm with linearity within ±1.5 %.
Q5. What is the operating temperature range of the PR6424/113‑100?
It is designed to operate in environments from −35 °C up to +180 °C.
Q6. Does the sensor require a signal conditioner or converter?
Yes — this sensor typically interfaces with a compatible signal conditioning or converter module to produce a usable output.
Q7. What physical connection does the sensor use?
The sensor uses an industrial‑grade connector (often LEMO) and shielded PTFE cable for reliable electrical connection.
Q8. What size shaft is suitable for this sensor?
It is suitable for measuring shafts with a minimum recommended diameter of approximately 80 mm.
