Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | EPRO / Emerson |
| Model Number | PR6424/114‑000 |

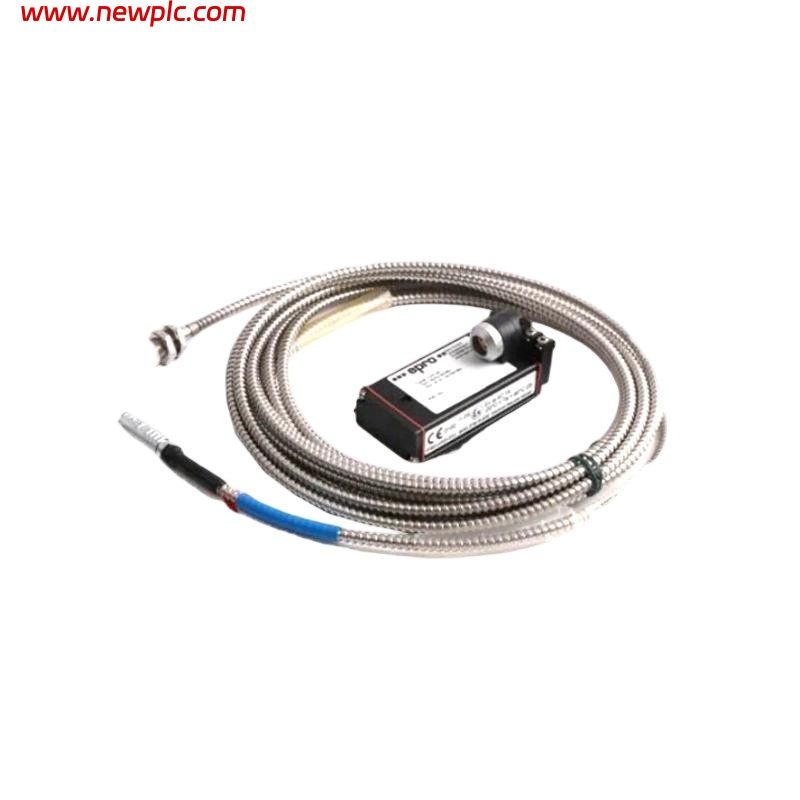

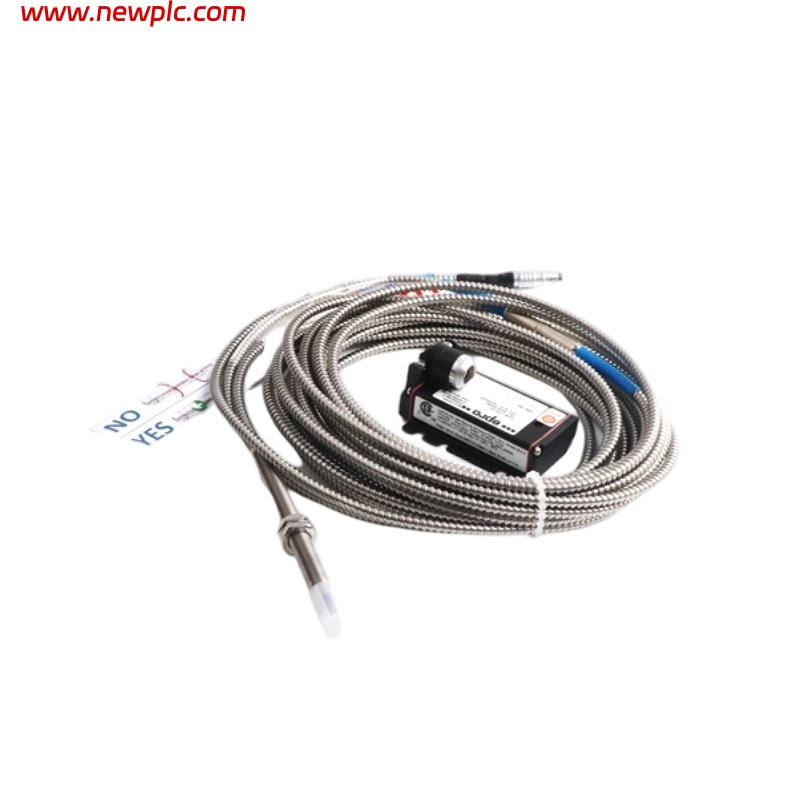

| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non‑contact eddy current (electromagnetic induction) |
| Static Displacement Range | ±2.0 mm |
| Dynamic Measurement Range | 0–1000 µm |
| Sensitivity / Linearity | ~4 V/mm, ≤ ±1.5 % |
| Nominal Air Gap | ~2.7 mm |
| Target Material | Ferromagnetic steel (e.g., 42 Cr Mo4) |
| Recommended Shaft Diameter | ≥ 80 mm |
| Operating Temperature | −35 °C to +180 °C |
| Temperature Effect | < 4 % per 100 K |
| Pressure Resistance | Up to ~10 000 hPa |
| Shock & Vibration Resistance | ~5 g @ 60 Hz |
| Thread Size | M18 × 1.5 |
| Physical Dimensions | Sensor head diameter: 16 mm; Sensor body length: ~40 mm; Cable diameter: ~2.8 mm; Cable length: 1 m standard (longer optional) |
| Net Weight | ~0.20 kg including 1 m cable |
| Connector Type | Industrial connector (e.g., LEMO) |
| Housing Material | Stainless steel |
| Typical Applications | Shaft displacement, vibration, eccentricity, and speed measurement |
| Compliance | API 670 compatible |
FAQ
FAQ
Q1. What characteristic measurement does the PR6424/114‑000 perform?
It measures non‑contact radial or axial shaft displacement, vibration, eccentricity, and dynamic motion.
Q2. What measurement range can this sensor detect?
Typical static displacement is ±2.0 mm with dynamic response up to about 1000 µm.
Q3. What are the physical dimensions of the sensor?
Sensor head diameter: 16 mm; sensor body length: ~40 mm; cable diameter: ~2.8 mm; standard cable length: 1 m (longer lengths optional).
Q4. What range of shaft diameters is suitable?
It’s optimized for shafts with diameters of at least ~80 mm.
Q5. What environmental conditions can it handle?
It’s designed for industrial conditions with operating temperatures from −35 °C up to +180 °C and high resistance to shock and vibration.
Q6. Does this sensor require a signal converter?
Yes — it interfaces with an external signal conditioner or converter module to produce usable output for monitoring systems.
Q7. What material is the sensor housing made of?
Stainless steel for durability and protection in industrial environments.
Q8. What is the approximate weight of the sensor?
With a 1 m cable, the sensor weighs around 0.20 kg.
