Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current, Non-contact |

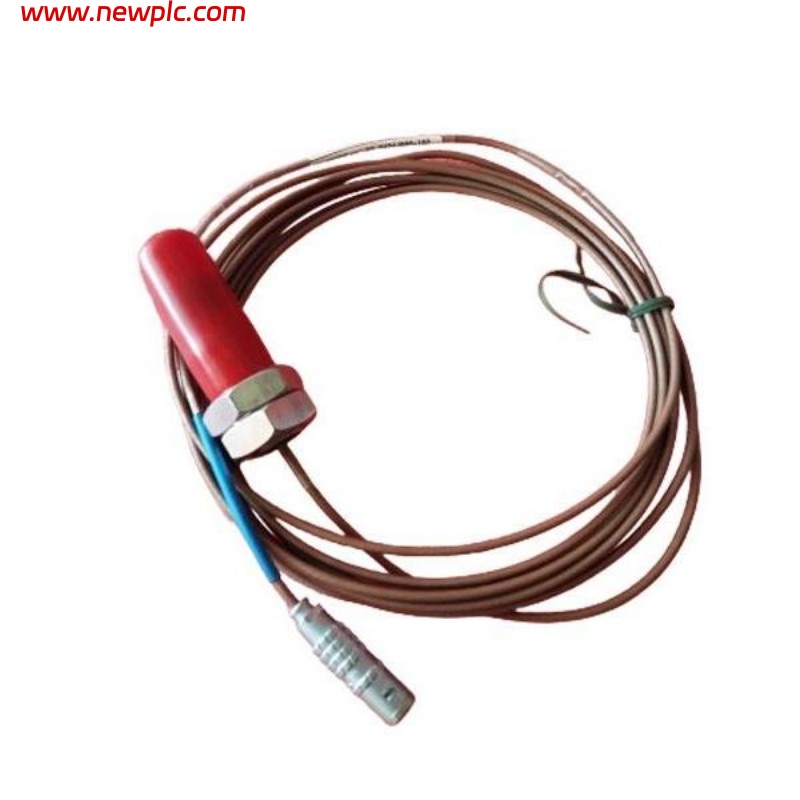

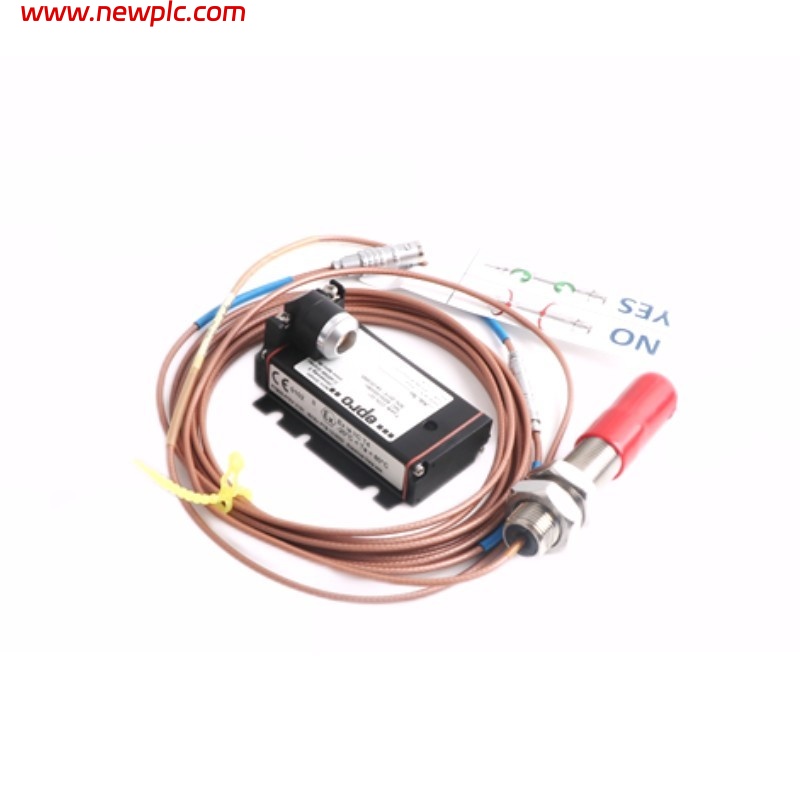

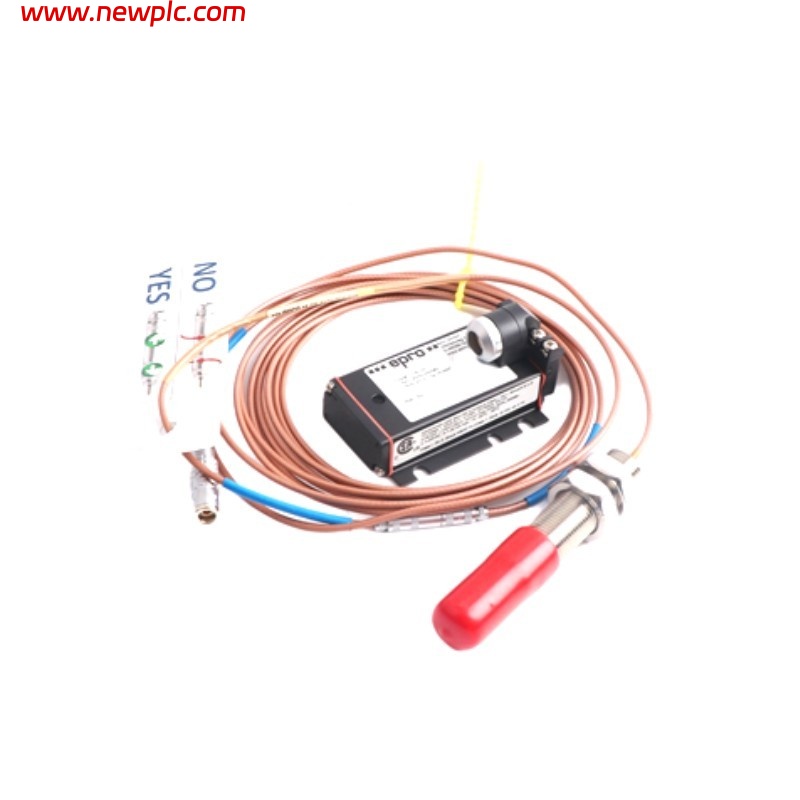

| Model | Epro PR6424/117-100 |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil) ≤ ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11”) Nominal |
| Static Range | ±2.0 mm (0.079”) |
| Dynamic Range | 0 to 1,000 μm (0 to 0.039”) |
| Long Term Drift | < 0.3% |
| Target Material | Ferromagnetic Steel (42 Cr Mo4 Standard) |
| Maximum Surface Speed | 2,500 m/s (98,425 ips) |
| Shaft Diameter Requirement | ≥80 mm |
| Operating Temperature Range | -35°C to +150°C (-31°F to +302°F) |
| Temperature Error | <4% / 100°K (API 670 Compliant) |
| Pressure Resistance (Sensor Head) | 10,000 hPa (145 psi) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C (77°F) |
| Material | Sleeve – Stainless Steel, Cable – PTFE |
| Dimensions | Probe Head Diameter: 16 mm |
| Weight | ~0.2 kg (including 1-meter cable, no armor) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Compliance Standards | EN 61326-1, EN 60079-0/11, IEC 60079, CSA-C22, ANSI/UL, etc. |
| Temperature Classification (Hazardous Areas) | T6 (≤84°C), T4 (≤114°C), T3 (≤160°C) (varies by standard) |
FAQ
FAQ
Q1: What is the typical sensitivity of the PR6424/117-100 sensor?
A1: The sensor has a sensitivity of 4 V/mm (101.6 mV/mil) with linearity of ±1.5%.
Q2: What is the suitable shaft diameter for this sensor?
A2: The PR6424 is designed for shafts with diameters ≥80 mm.
Q3: What type of target material is required?
A3: The sensor requires a ferromagnetic steel surface, specifically 42 Cr Mo4 standard.
Q4: What is the maximum allowable surface speed?
A4: The sensor can operate with surface speeds up to 2,500 m/s.
Q5: What is the pressure resistance of the sensor head?
A5: It can withstand pressures up to 10,000 hPa (145 psi).
Q6: Is the PR6424 suitable for hazardous environments?
A6: Yes, it holds multiple hazardous area certifications including ATEX, IEC-Ex, and CSA.
Q7: What is the operating temperature range?
A7: The sensor functions reliably between -35°C and 150°C.
Q8: What is the weight and size of the sensor head?
A8: The sensor head has a diameter of 16 mm and weighs approximately 0.2 kg.
