Technical Specifications
| Parameter | Specification |
|---|---|

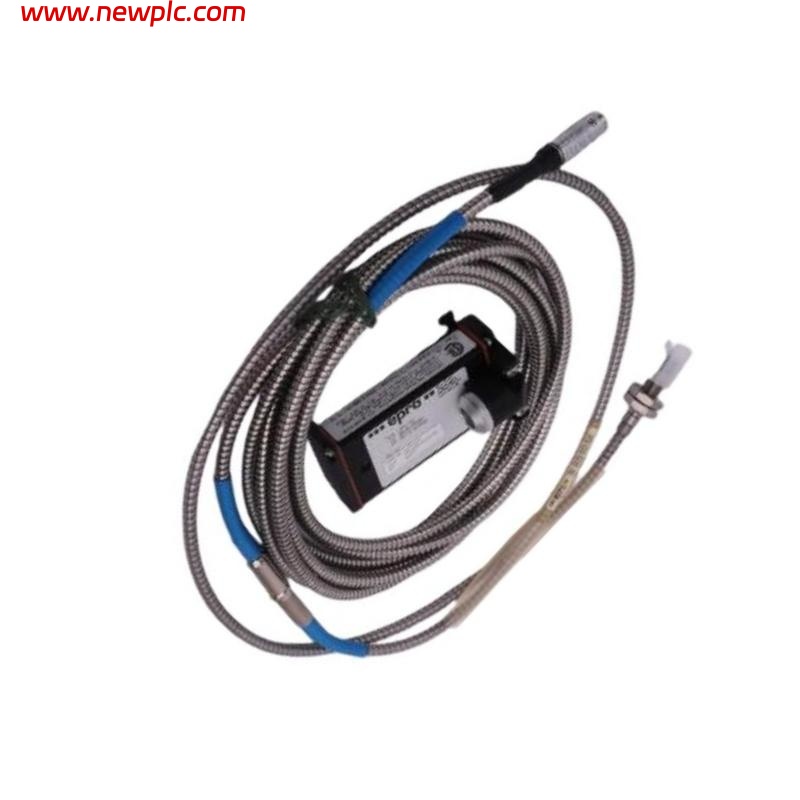

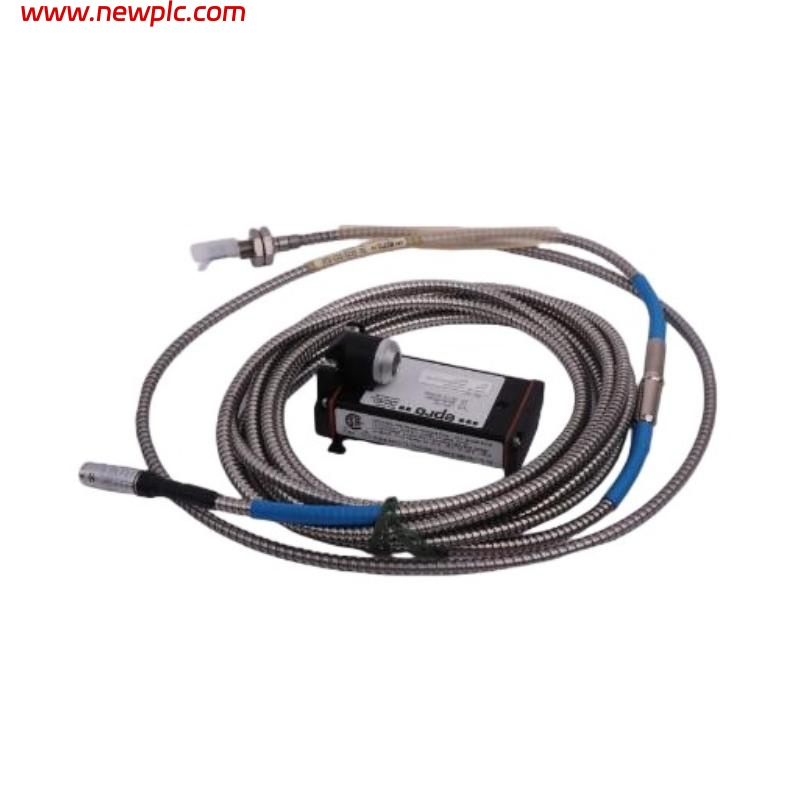

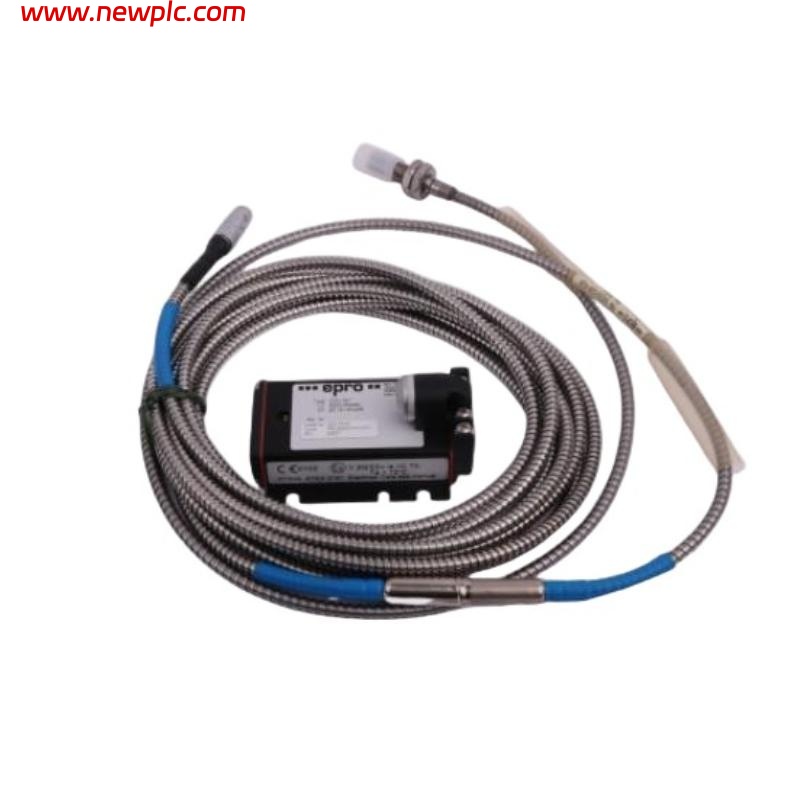

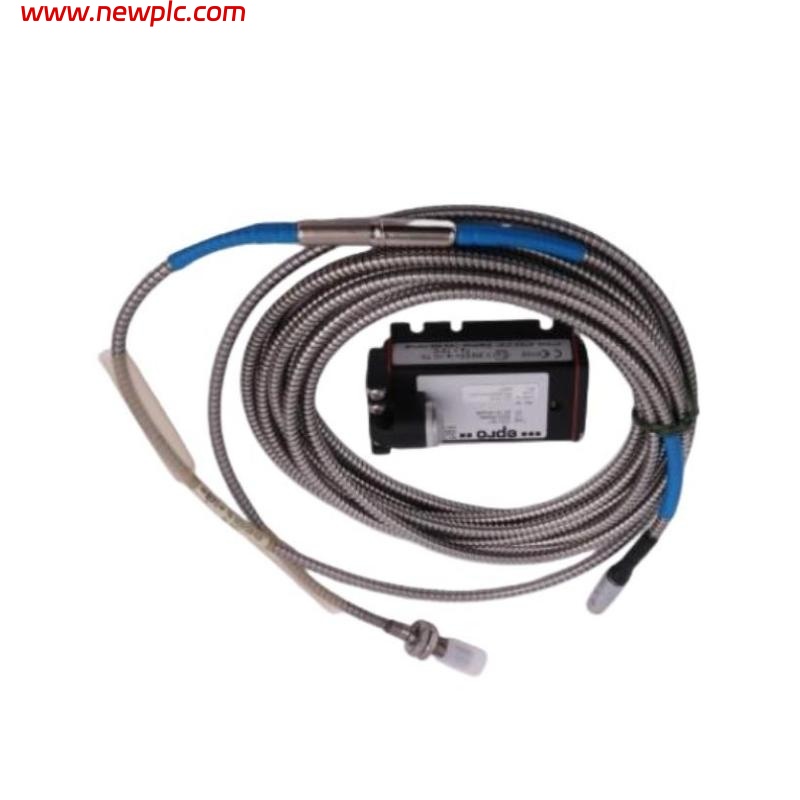

| Model | PR6425/005‑010 Eddy Current Sensor (requires signal converter) |
| Sensing Type | Eddy current non‑contact displacement/vibration measurement |
| Sensitivity | 4 V/mm ±2% |
| Air Gap (Nominal) | ~2.6 mm (0.10″) |
| Static Measurement Range | ±2.0 mm (±0.079″) |
| Dynamic Measurement Range | 0–1,000 µm (0–0.039″) |
| Target Material | Ferromagnetic steel (42 Cr Mo 4) |
| Linearity Error | ≤ ±2.0% |
| Max Surface Speed | Up to 2,500 m/s |
| Min Shaft Diameter | ≥ 80 mm |
| Operating Temp (Sensor) | 0–380 °C (32–716 °F) |
| Cable Temp (First Meter) | –40–380 °C (–40–716 °F) |
| Cable Temp (Remaining) | –40–200 °C (–40–392 °F) |
| Pressure Resistance | Up to 2,000 hPa (29 psi) |
| Shock/Vibration Resistance | 5 g @ 60 Hz @ 25 °C |
| Sleeve Material | Stainless steel |
| Cable Material | PTFE |
| Weight (Sensor + 1 m Cable) | ~500 g (17.64 oz) |
| Sensor Head Diameter | 16 mm |
| Total Sensor Body Length | ~69 mm (without cable) |
| Thread | M18 × 1.5 |
| Cable Length (Typical) | 4–10 m (configurable) |
FAQ
FAQ
Q1: What is the PR6425/005‑010 sensor used for?
It measures displacement and vibration without contact on rotating machinery parts for industrial monitoring.
Q2: What size is the sensor head?
The sensor head diameter is 16 mm.
Q3: How long is the sensor body (excluding cable)?
The sensor body is approximately 69 mm long.
Q4: What is the required shaft size for accurate measurement?
It needs a minimum shaft diameter of 80 mm.
Q5: What temperature ranges can the sensor operate in?
The sensor operates from 0 °C to 380 °C; cable has graded temperature limits.
Q6: Does the sensor include the signal converter?
No, a compatible converter (like CON021) is required to condition the sensor output.
Q7: What materials can it reliably measure?
It is optimized for ferromagnetic steel surfaces like 42 Cr Mo 4.
Q8: How heavy is the sensor with a typical cable length?
With 1 m of cable, it weighs around 500 g.
