Technical Specifications
| Parameter | Specification |
|---|---|

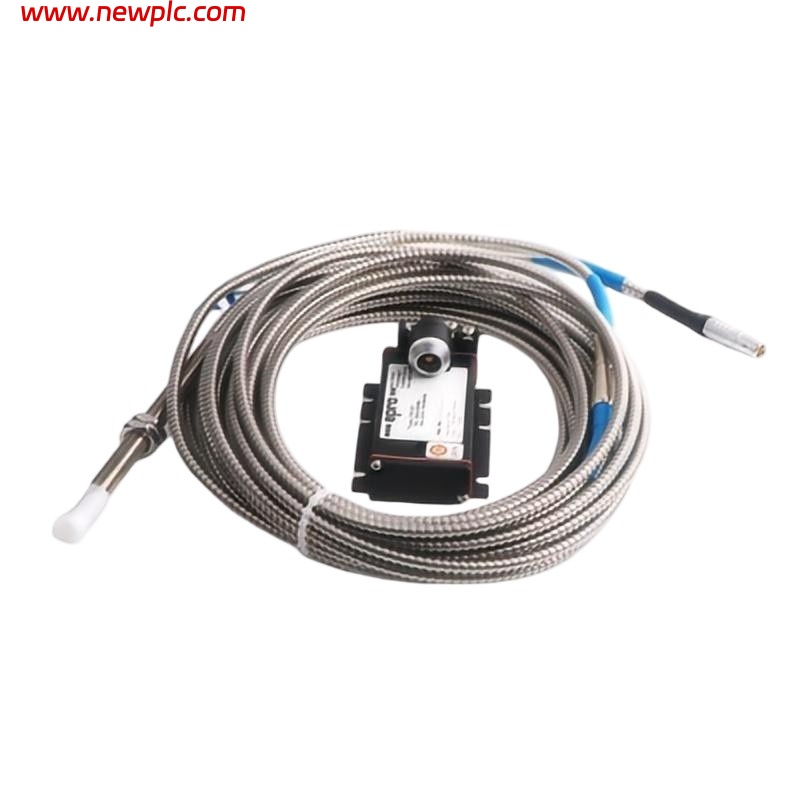

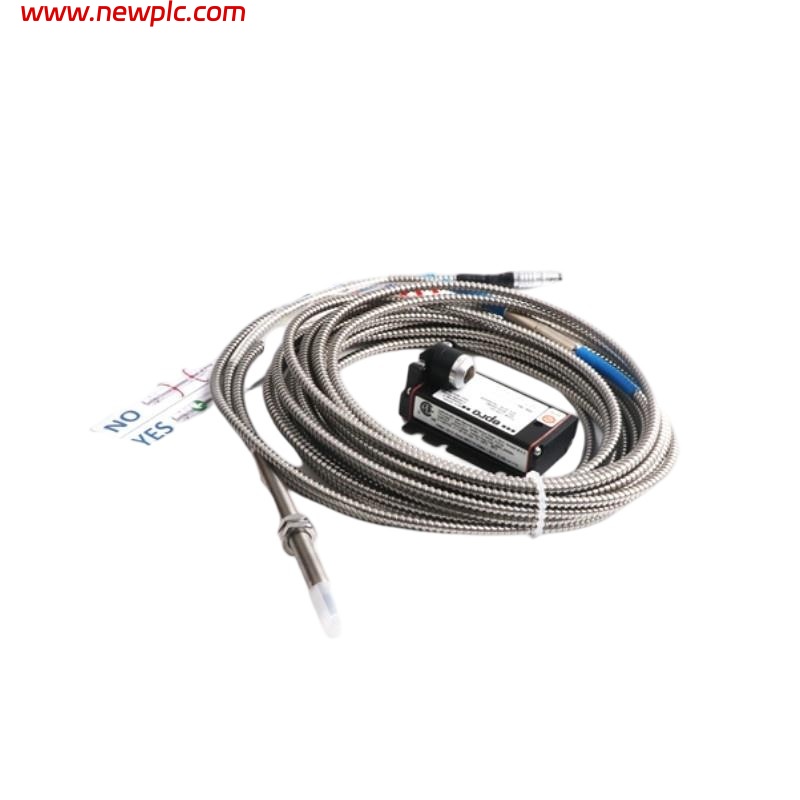

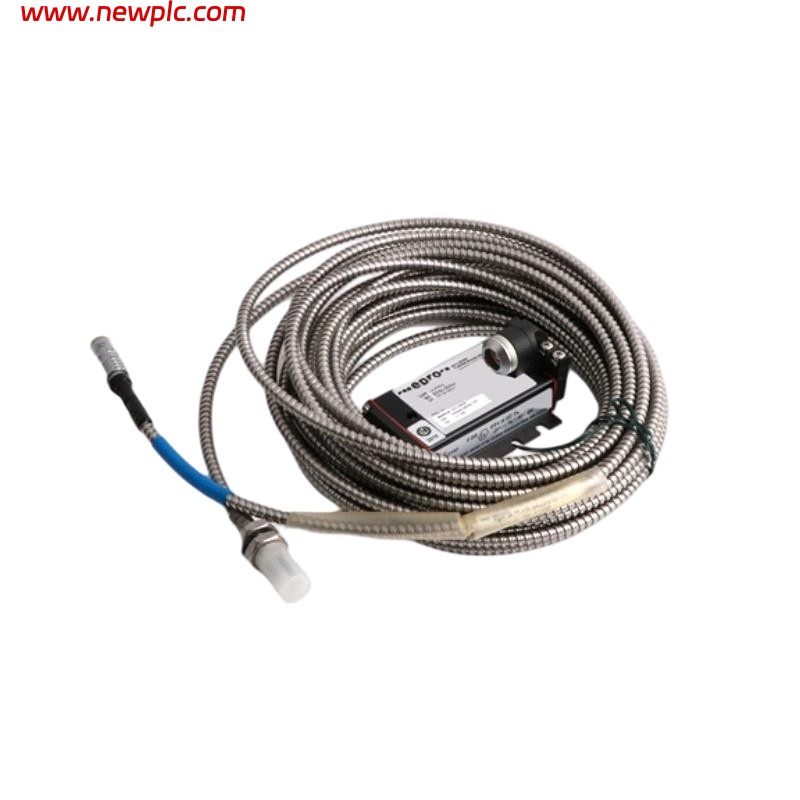

| Model | PR6425/010-130 Eddy Current Sensor |
| Sensor Type | Eddy current non-contact displacement and vibration sensor |
| Sensitivity | 4 V/mm (±2%) |
| Nominal Air Gap | Approx. 2.6 mm |
| Static Measurement Range | ±2.0 mm |
| Dynamic Measurement Range | 0–1000 µm |
| Measurement Range (Configured) | Up to 2 mm displacement monitoring |
| Linearity Error | ≤ ±2.0% |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140) |
| Maximum Surface Speed | Up to 2500 m/s |
| Minimum Shaft Diameter | ≥ 80 mm |
| Operating Temperature (Sensor) | 0 °C to 380 °C |
| Cable Temperature (First Meter) | −40 °C to 380 °C |
| Cable Temperature (Remaining Length) | −40 °C to 200 °C |
| Pressure Resistance | Up to 2000 hPa |
| Shock / Vibration Resistance | 5 g @ 60 Hz |
| Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Weight (Sensor with 1 m Cable) | Approx. 500 g |
| Dimensions | Ø16 mm × 69 mm probe body with M18×1.5 mounting thread |
FAQ
FAQ
Q1: What is the PR6425/010-130 sensor designed for?
It is used for non-contact measurement of vibration, shaft displacement, and position monitoring in rotating machinery.
Q2: What sensing technology does this probe use?
The sensor operates using eddy current technology to detect changes in distance between the probe and a conductive target.
Q3: What is the typical installation gap for the probe?
The recommended nominal air gap is about 2.6 mm for stable and accurate readings.
Q4: What materials are compatible with this sensor?
It performs best when measuring conductive ferromagnetic materials such as alloy steels like 42CrMo4.
Q5: What industrial applications commonly use this sensor?
Typical uses include monitoring turbines, compressors, pumps, generators, and other high-speed rotating equipment.
Q6: What temperature range can the probe tolerate?
The sensor can operate in environments up to approximately 380 °C.
Q7: What shaft diameter is recommended for reliable measurement?
A shaft diameter of at least 80 mm is recommended to ensure measurement accuracy.
Q8: Does this sensor require a signal converter?
Yes, it normally operates together with a compatible signal converter such as CON021 to provide conditioned output signals.
