Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Model | Epro PR6426/000‑041 |
| Probe Diameter | 32 mm |
| Recommended Air Gap | 5 mm |
| Sensitivity / Linearity | 2 V/mm ±1.5% |
| Static Measurement Range | ±4 mm |
| Dynamic Measurement Range | 0 – 2000 µm |
| Long Term Drift | <0.3% |
| Target Material | Ferromagnetic steel |
| Maximum Surface Velocity | 2.5 m/s |
| Shaft Diameter Requirement | ≥150 mm |
| Operating Temperature | –35°C – +180°C |
| Temperature Error | <4% / 100 K |
| Dimensions | Sensor head diameter 32 mm |
| Weight | 0.8 kg |
FAQ
FAQ

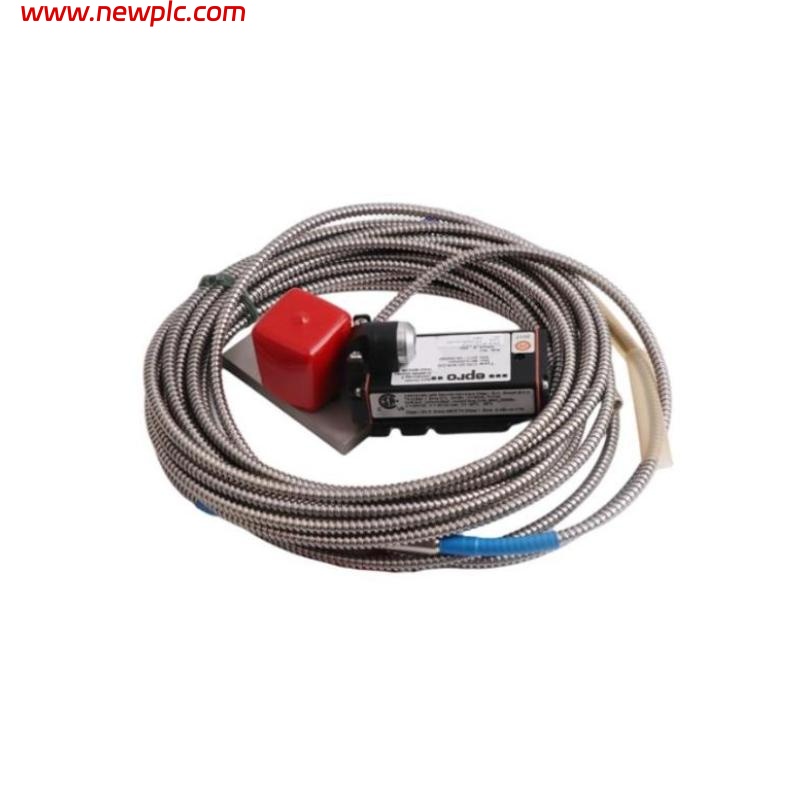

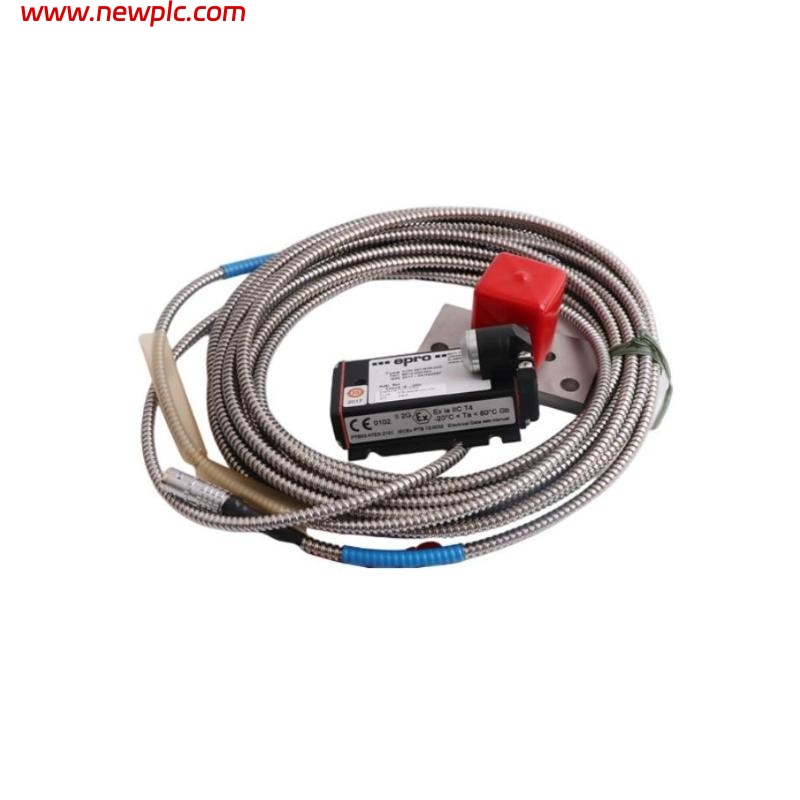

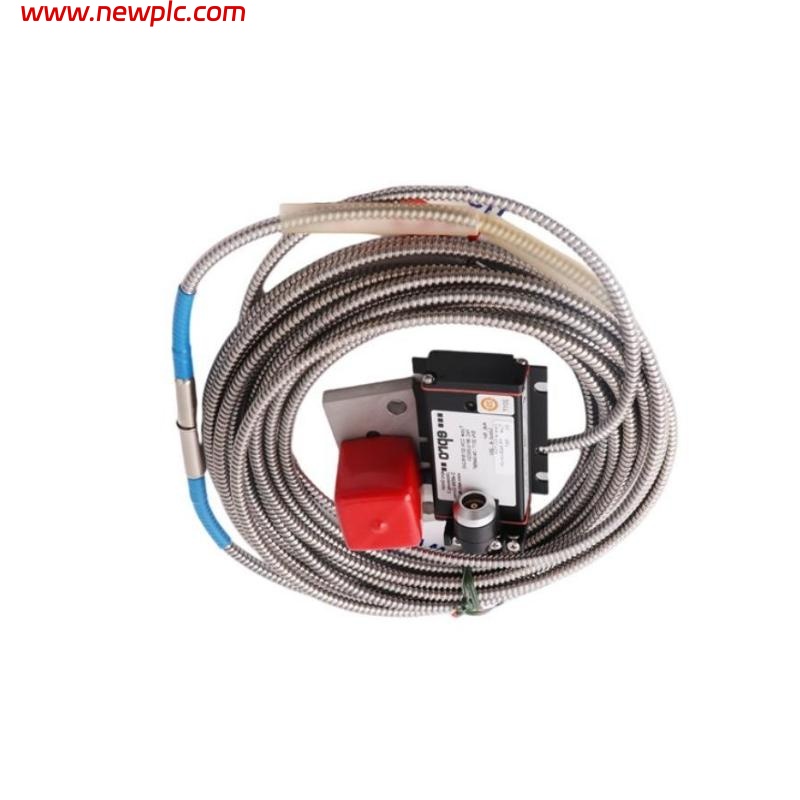

Q1: What is the PR6426/000‑041 sensor?
A1: It is a large-diameter eddy current non-contact displacement/vibration sensor with a 32 mm probe, suitable for measuring vibration and displacement of large shafts.
Q2: What is the measurement range?
A2: Static range ±4 mm, dynamic range 0 – 2000 µm.
Q3: What is the recommended air gap?
A3: Nominal recommended air gap is approximately 5 mm.
Q4: What is the sensitivity and linearity?
A4: Sensitivity is about 2 V/mm, linearity error maximum ±1.5%.
Q5: What is the operating temperature range?
A5: –35°C to +180°C.
Q6: What target materials are suitable?
A6: Ferromagnetic steel, such as 42CrMo4.
Q7: What are the dimensions and weight?
A7: Sensor head diameter 32 mm, weight is 0.8 kg.
Q8: What is the protection class?
A8: IP66, dust and water resistant.
