Technical Specifications
| Parameter | Specification |
|---|---|

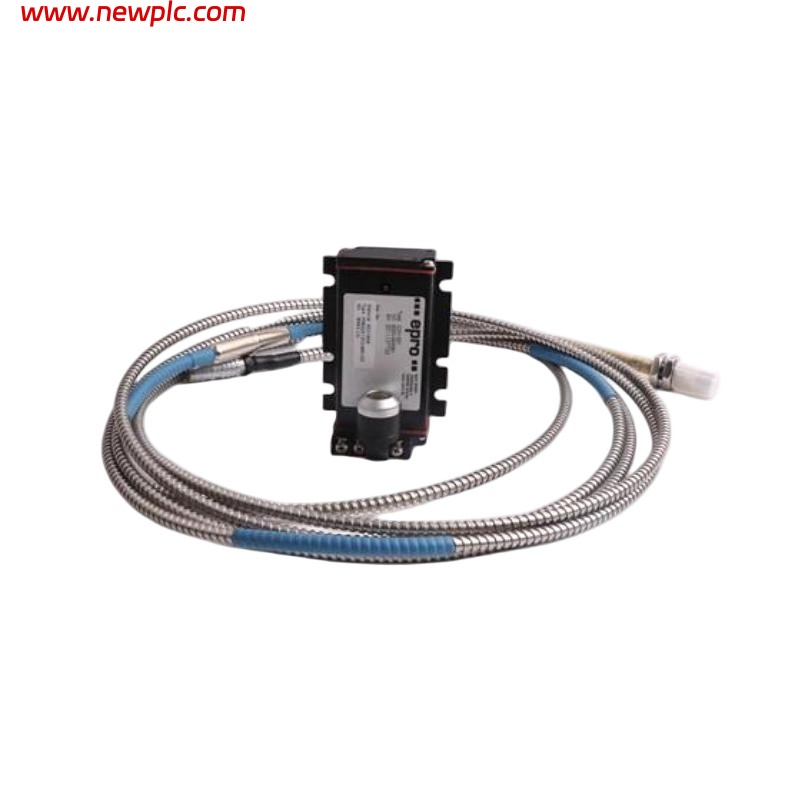

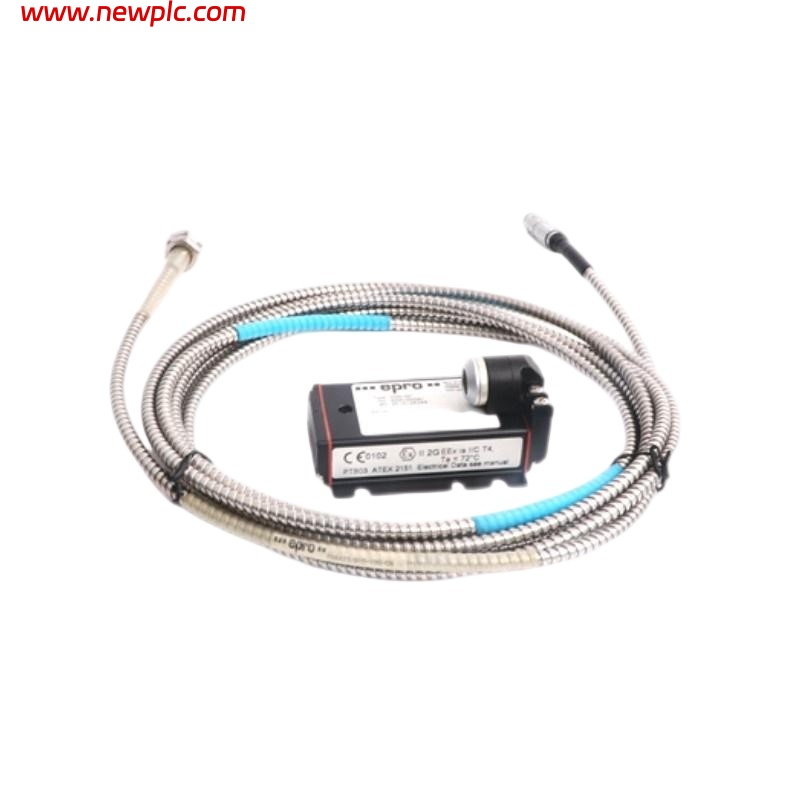

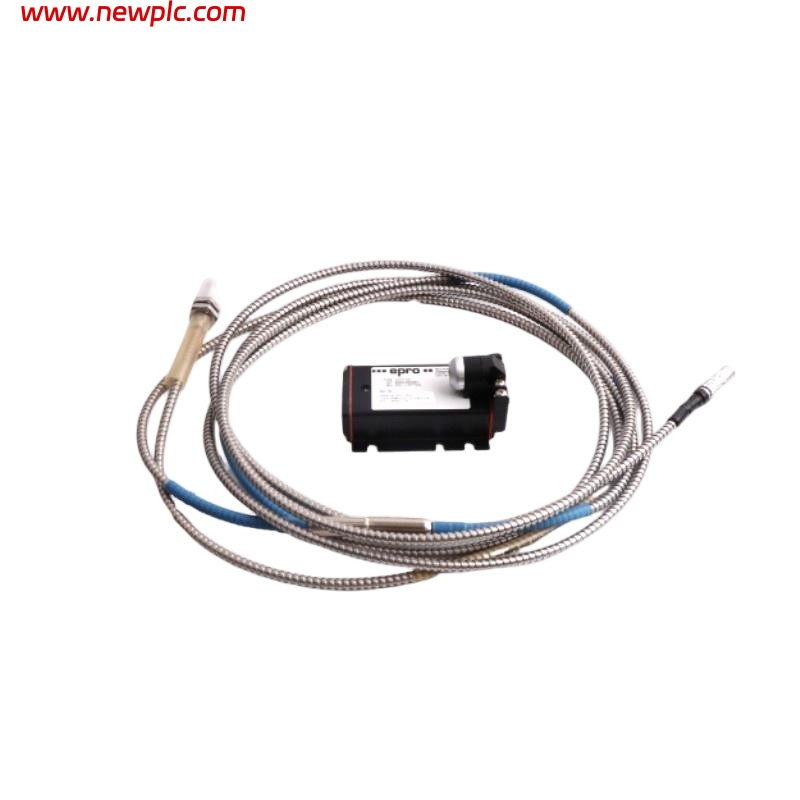

| Model | PR6426/010-020 Eddy Current Sensor |
| Sensor Type | Eddy current non-contact displacement and vibration sensor |
| Sensitivity | 2 V/mm (50.8 mV/mil) ±1.5% |
| Nominal Air Gap | Approx. 5.5 mm |
| Static Measurement Range | ±4.0 mm |
| Dynamic Measurement Range | ±4.0 mm |
| Long-Term Drift | < 0.3% |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140) |
| Maximum Surface Speed | Up to 2,500 m/s |
| Minimum Shaft Diameter | ≥ 200 mm |
| Operating Temperature (Sensor) | −35 °C to 180 °C |
| Temperature Excursion | Up to 200 °C (≤4 hours) |
| Maximum Cable Temperature | 200 °C |
| Pressure Resistance | Up to 6,500 hPa |
| Shock / Vibration Resistance | 5 g @ 60 Hz |
| Housing Material | Stainless steel sleeve |
| Cable Material | PTFE insulated cable |
| Weight (Sensor with 1 m Cable) | Approx. 800 g |
| Dimensions | Ø32 mm probe head × approx. 120 mm sensor body length with mounting plate about 80 mm × 40 mm |
FAQ
FAQ
Q1: What is the PR6426/010-020 sensor mainly used for?
It is used for non-contact monitoring of shaft vibration, displacement, and position in large rotating machinery such as turbines, compressors, pumps, and fans.
Q2: What measurement principle does the PR6426/010-020 use?
The probe operates using eddy current technology to detect distance changes between the probe tip and a conductive metal surface.
Q3: What is the typical measuring range of this sensor?
The sensor provides a linear displacement measurement range of approximately ±4.0 mm around the nominal air gap.
Q4: What materials are suitable for measurement?
It is optimized for conductive ferromagnetic materials such as alloy steel shafts like 42CrMo4.
Q5: What temperature conditions can the sensor withstand?
The probe operates from −35 °C to about 180 °C and can tolerate short temperature excursions up to 200 °C.
Q6: What shaft diameter is recommended for accurate measurement?
For reliable measurement accuracy, the shaft diameter should be at least 200 mm.
Q7: What industries typically use the PR6426/010-020?
It is commonly applied in power generation, petrochemical plants, oil and gas facilities, and turbomachinery monitoring systems.
Q8: Does the PR6426/010-020 require a signal converter?
Yes, it is normally used together with compatible signal converters such as CON011 or CON021 to provide conditioned monitoring outputs.
