Technical Specifications
| Parameter | Specification |
|---|---|

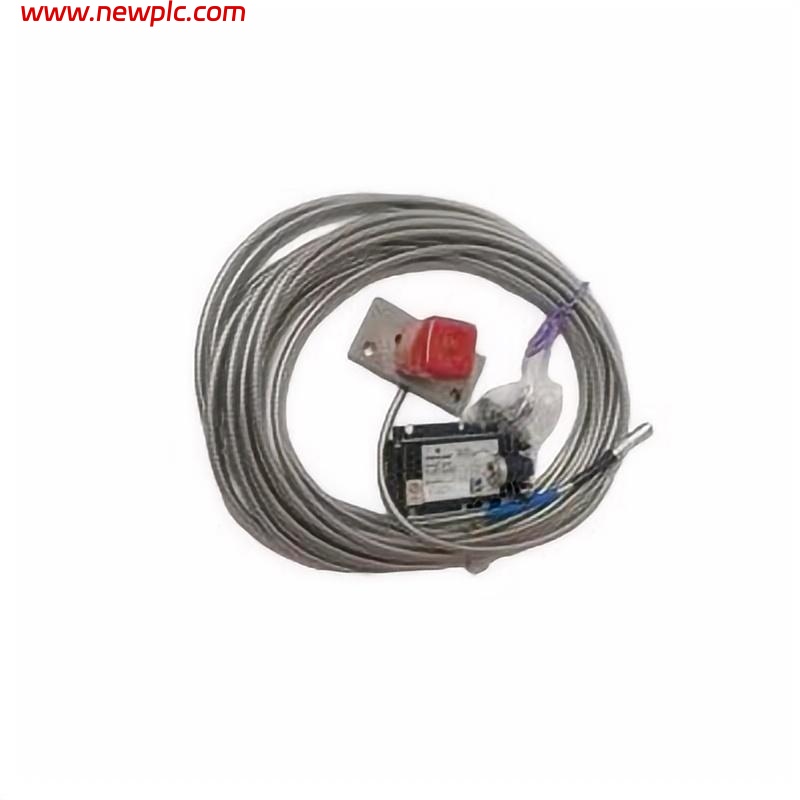

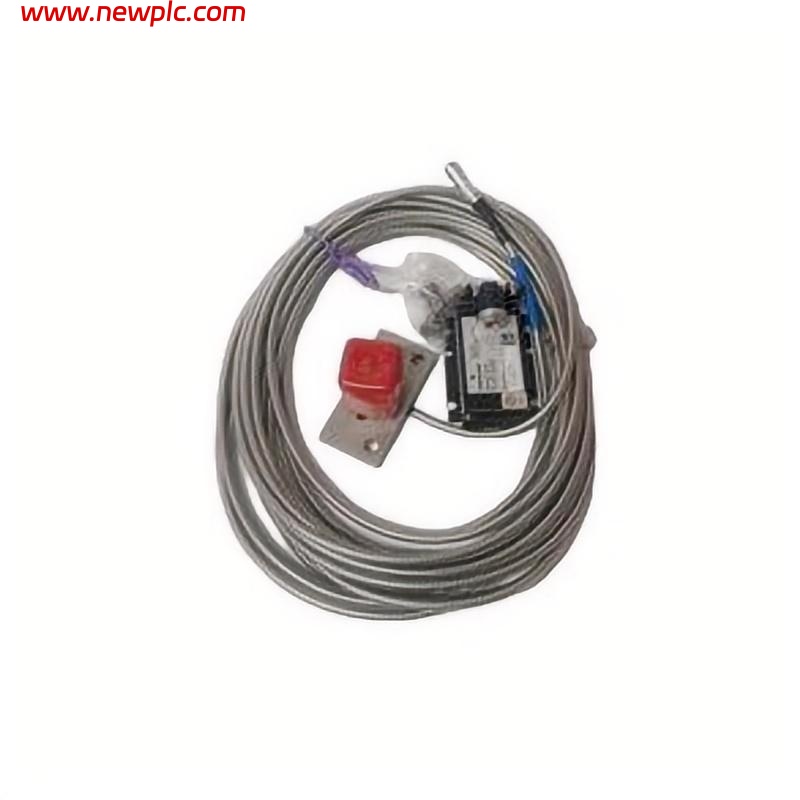

| Model | PR6426/010‑100 Eddy Current Sensor |
| Sensor Type | Eddy current non‑contact displacement and vibration sensor |
| Probe Diameter | 32 mm nominal sensing head |
| Sensitivity | 2 V/mm (50.8 mV/mil) ± 1.5 % |
| Nominal Air Gap | Approx. 5.5 mm (0.22″) |
| Static Measurement Range | ± 4.0 mm |
| Dynamic Measurement Range | ± 4.0 mm |
| Long‑Term Drift | < 0.3 % |
| Linearity Error | < ± 1.5 % after calibration |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4 / AISI 4140) |
| Minimum Shaft Diameter | ≥ 200 mm |
| Operating Temperature | −35 °C to +180 °C (short excursions up to +200 °C) |
| Cable Temperature | Up to +200 °C |
| Pressure Resistance (Sensor Head) | Up to ~6500 hPa |
| Shock / Vibration Resistance | 5 g @ 60 Hz |
| Housing Material | Stainless steel sleeve |
| Cable Material | PTFE‑insulated cable (armored options available) |
| Weight (Sensor with ~1 m Cable) | ~800 g (1.76 lbs) |
| Dimensions | Ø32 mm probe head × approx. 120 mm body length with mounting plate ~80 mm × 40 mm |
FAQ
FAQ
Q1: What is the PR6426/010‑100 sensor used for?
It is used for precise non‑contact measurement of shaft displacement and vibration in large rotating machinery like turbines, compressors, and pumps.
Q2: What measurement principle does this sensor use?
The probe operates using eddy current technology, detecting changes in electromagnetic field strength as distance to the target changes.
Q3: What is the typical measuring range of the PR6426/010‑100?
The sensor provides a linear displacement measurement range of approximately ±4.0 mm from the nominal air gap.
Q4: What materials can this sensor effectively measure?
It works best with conductive ferromagnetic materials such as alloy steel shafts like 42CrMo4.
Q5: What temperature environments can the sensor handle?
The sensor operates from about −35 °C to +180 °C and can tolerate short excursions up to around +200 °C.
Q6: What shaft size is recommended for accurate measurement?
For reliable results, the shaft diameter should be at least ~200 mm.
Q7: What environmental resistances does this sensor provide?
It is designed to withstand industrial shock/vibration levels of 5 g and sensor head pressure up to roughly 6500 hPa.
Q8: Does the PR6426/010‑100 require a signal converter?
Yes, the sensor typically pairs with compatible eddy current signal converters (such as CON011 or CON021) for conditioned output signals in monitoring systems.
