Technical Specifications
| Parameter | Specification |
|---|---|

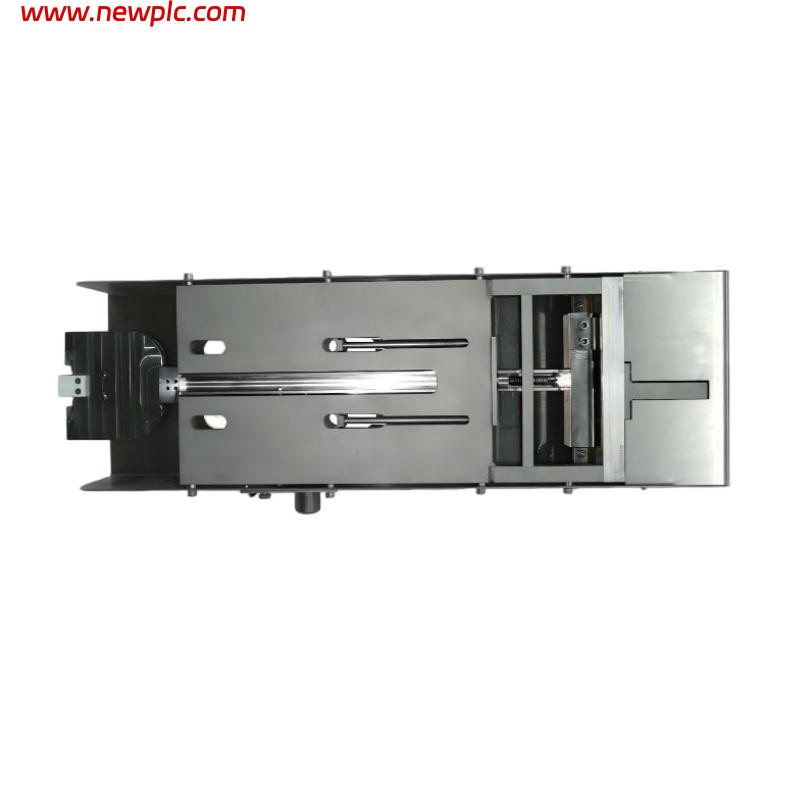

| Model | PR6470/222‑110 Eddy Current Pendulum Probe |
| Product Type | Pendulum mechanical interface for eddy current proximity sensors (used in axial displacement measurement) |
| Compatible Sensors | Designed to work with EPRO series sensors (e.g., PR6423, PR6424) |
| Pendulum Type | Type 15 Standard (extended range pendulum variant) |
| Measuring Range (Axial Displacement) | Up to ±15 mm nominal dynamic range depending on sensor and installation geometry |
| Material | Stainless steel pendulum body; corrosion‑resistant components |
| Operating Temperature Range | Typically −35 °C to +150 °C (varies with attached sensor type) |
| Vibration Resistance | Up to ~20 g peak (10–2000 Hz) depending on installation |
| Environmental Protection | Typical industrial construction (pendulum assembly may be rated IP65 when installed with sensor) |
| Weight | Approx. 4 kg (pendulum assembly) depending on configuration |
| Dimensions | Pendulum assembly approx. 365 mm × 65 mm × 113 mm (body footprint) |
| Mounting Method | Rigid flange or mechanical fulcrum installation |
| Typical Shaft Collar Size Range | 200 mm to 800 mm outer collar (for mounting geometry) |
FAQ
FAQ
Q1: What is the main purpose of the PR6470/222‑110?
It serves as a pendulum mechanical interface to transfer axial shaft movement to an eddy current proximity sensor when direct sensor mounting is not feasible.
Q2: Which sensors is it intended to work with?
PR6470/222‑110 operates with compatible EPRO eddy current sensors such as the PR6423 and PR6424 series.
Q3: What type of displacement measurement does this pendulum support?
It enables axial displacement measurement by converting physical shaft collar motion into a measurable signal via an attached sensor.
Q4: What is the typical measurement range?
The pendulum configuration allows axial displacement measurement up to ~±15 mm depending on the specific sensor and installation setup.
Q5: What temperatures can the pendulum assembly withstand?
The assembly typically works in industrial environments from about −35 °C to +150 °C, depending on the installed sensor.
Q6: How is the pendulum installed?
It is mounted via a rigid flange or mechanical fulcrum configuration to align with the shaft collar and an eddy current proximity sensor.
Q7: In what applications is PR6470/222‑110 used?
It’s commonly used in turbomachinery such as steam, gas, and hydro turbines, compressors, pumps, and other rotating equipment where direct sensor access is limited.
Q8: Does this product include the eddy current sensor itself?
No — the PR6470/222‑110 is a pendulum interface and must be paired with a compatible eddy current sensor and signal converter to produce a usable output signal.
