Technical Specifications
| Parameter | Specification |
|---|---|

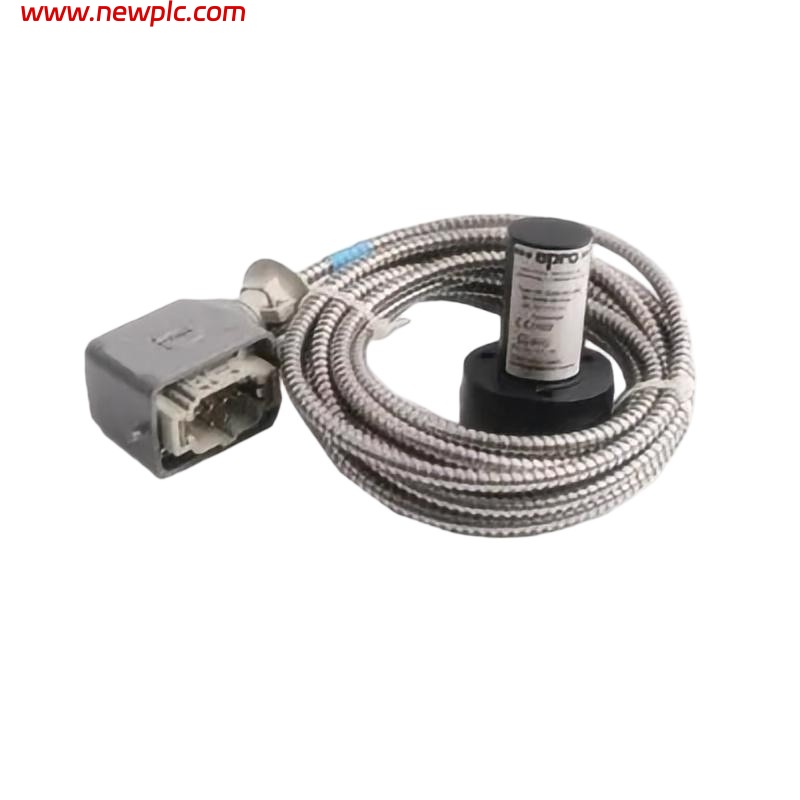

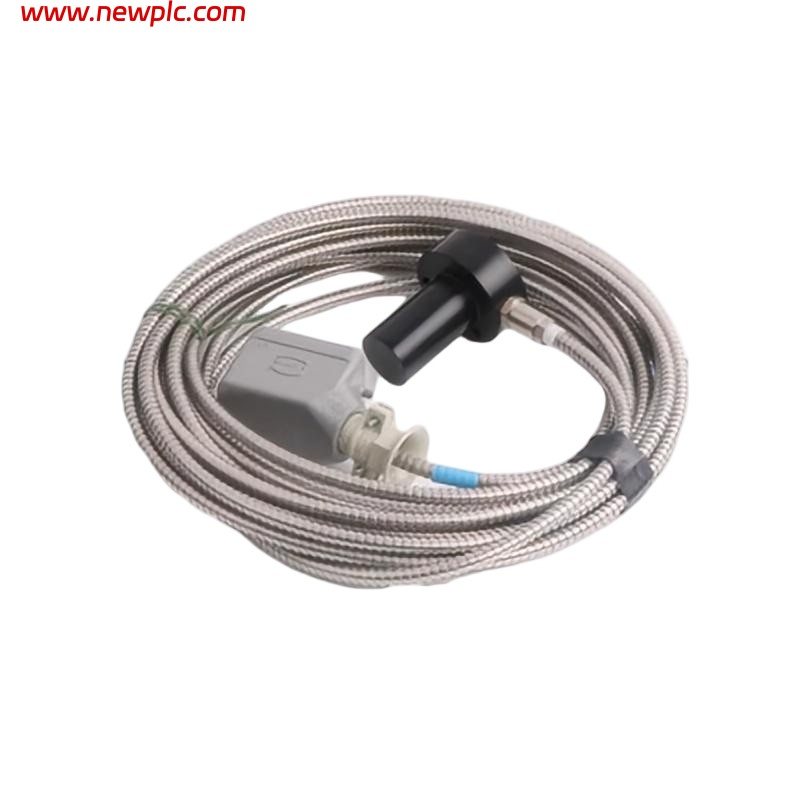

| Model | PR6480/041-000-CN Eddy Current Sensor |
| Sensor Type | Eddy current non-contact displacement sensor |
| Measurement Principle | Eddy current induction for non-contact distance measurement |
| Measurement Range | Up to 50 mm depending on installation and configuration |
| Accuracy | Approx. ±0.2 % of full scale |
| Repeatability | Approx. ±0.05 % of full scale |
| Dynamic Frequency Range | 0 – 20,000 Hz |
| Output Signal | Analog signal (commonly 4–20 mA through converter) |
| Supply Voltage (Converter System) | 24 V DC typical |
| Operating Temperature (Sensor & 1 m Cable) | −35 °C to +80 °C |
| Operating Temperature (Converter) | −10 °C to +50 °C |
| Storage Temperature | −40 °C to +85 °C |
| Housing Material | Stainless steel with EPDM O-ring sealing |
| Cable Material | Polyolefin insulated cable |
| Protection Class | IP20 (converter enclosure) |
| Shock / Vibration Resistance | 5 g at 60 Hz (25 °C) |
| Weight | Approx. 190–220 g |
| Dimensions | Approx. 120 mm × 40 mm × 35 mm (converter body) with compact probe assembly |
FAQ
FAQ
Q1: What is the PR6480/041-000-CN used for?
It is an eddy current sensor used for non-contact measurement of shaft displacement, position, eccentricity, and vibration in rotating machinery.
Q2: What type of machinery typically uses this sensor?
It is commonly installed on turbines, compressors, pumps, fans, and other turbomachinery where accurate shaft monitoring is required.
Q3: What measurement principle does the sensor use?
The device uses eddy current induction to detect changes in distance between the probe and a conductive target surface.
Q4: What is the maximum measurement range?
Depending on installation and configuration, the system can measure displacement up to approximately 50 mm.
Q5: What frequency response does the system support?
The dynamic performance covers a frequency range from 0 Hz to about 20 kHz, suitable for high-speed vibration monitoring.
Q6: What temperature conditions can the PR6480/041-000-CN operate in?
The sensor and its first meter of cable typically operate between −35 °C and +80 °C, while the converter operates between −10 °C and +50 °C.
Q7: What signal output does the system provide?
Through the signal converter, the sensor can deliver a standard 4–20 mA analog output used by monitoring or control systems.
Q8: Does the PR6480/041-000-CN require a signal converter?
Yes. It normally operates together with an eddy current signal converter such as CON021, which processes the probe signal into usable measurement data.
