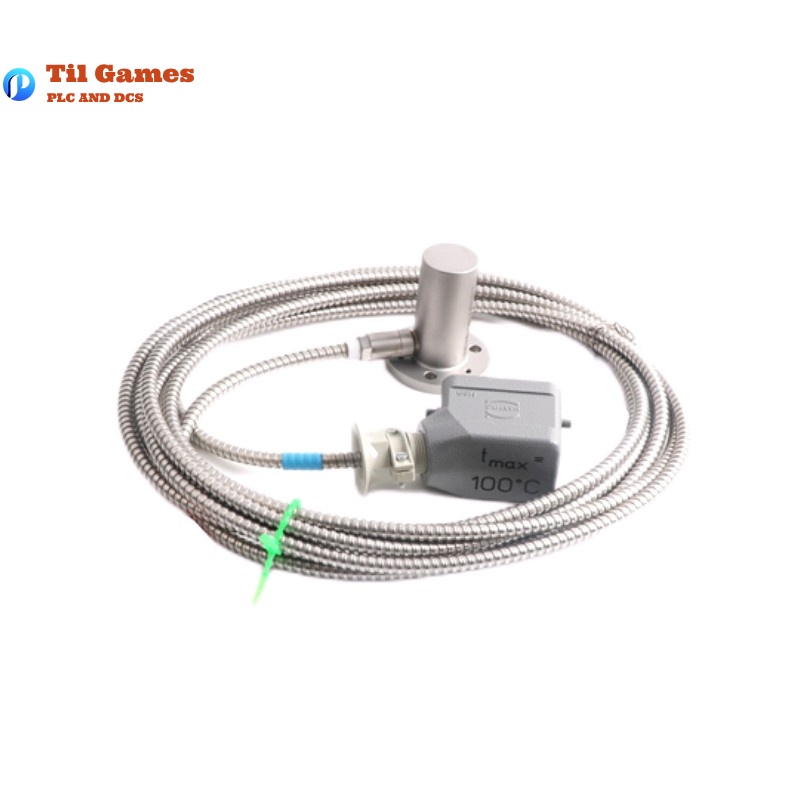

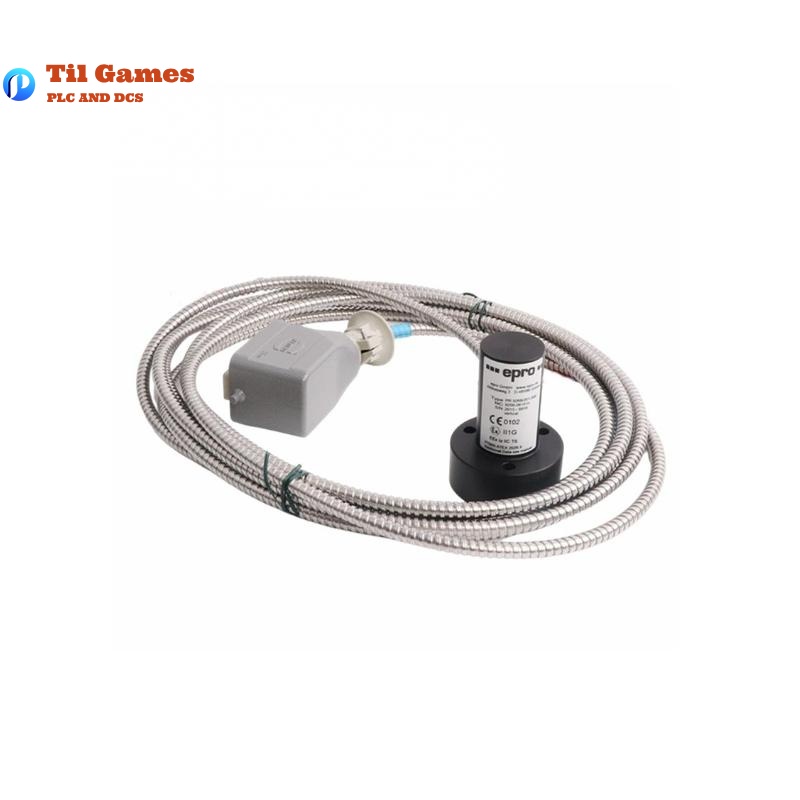

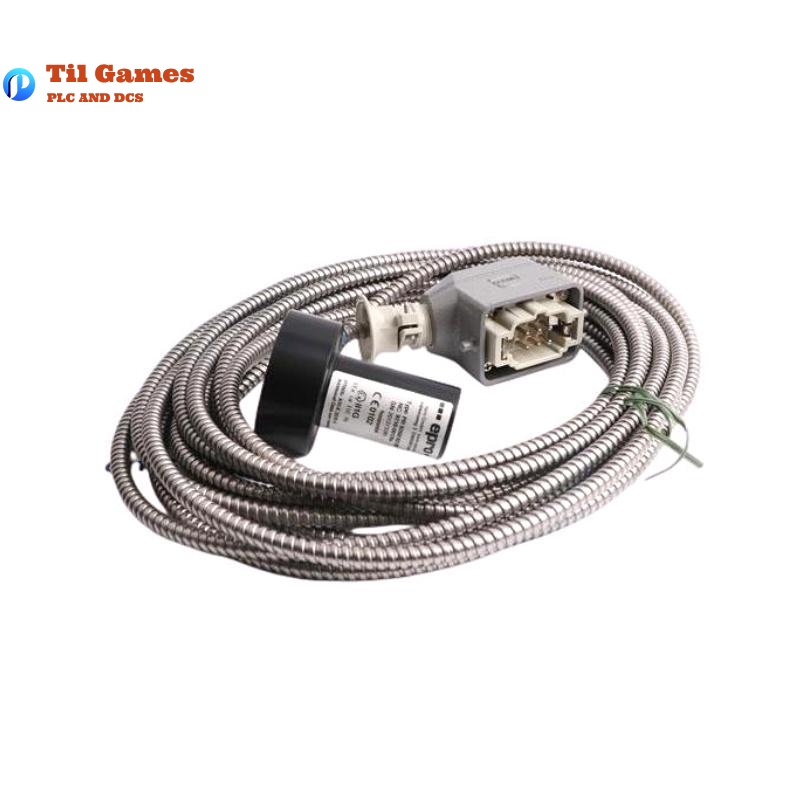

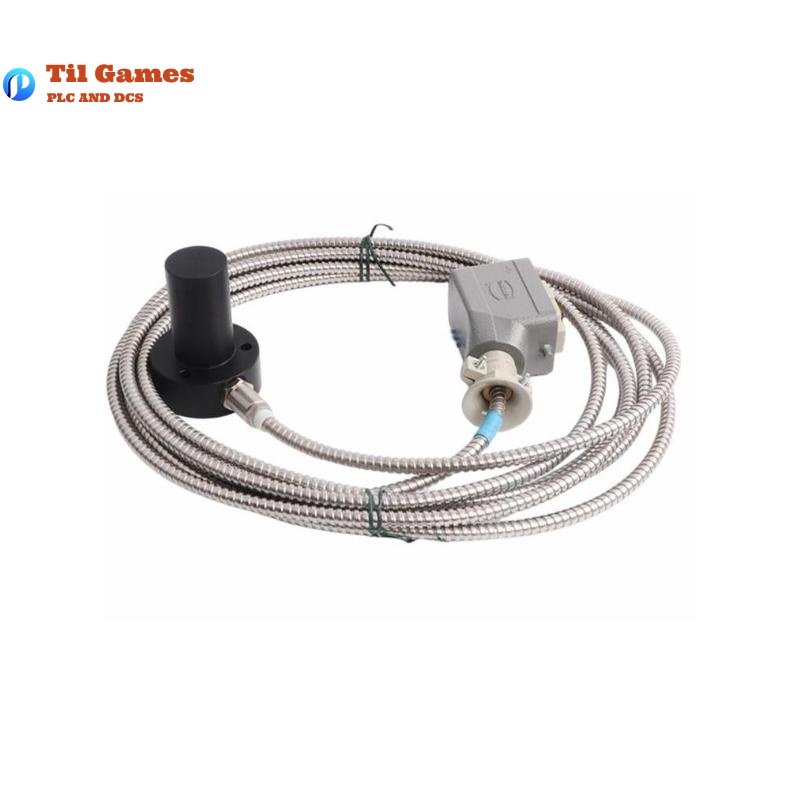

Technical Specifications (PR9268/601-000)
| Item | Specification |
|---|---|
| Sensitivity | 22.0 mV/mm/s ± 5% (Pin 3, 100Ω load) 16.7 mV/mm/s ± 5% (Pin 1, 50Ω load) 16.7 mV/mm/s ± 5% (Pin 4, 20Ω load) |
| Frequency Range | 10 to 1000 Hz |
| Natural Frequency | 8 Hz ± 1.5 Hz @ 20°C |
| Transverse Sensitivity | 0.10 @ 80 Hz |
| Vibration Amplitude | 3000 µm (mechanical limit), maximum 4000 µm |
| Amplitude Linearity | < 2% |
| Max Acceleration | 10g continuous (98.1 m/s²), 20g intermittent (196.2 m/s²) |
| Max Transverse Acceleration | 2g (19.62 m/s²) |
| Damping Factor | ~0.7 @ 20°C, ~0.5 @ 200°C |
| Resistance | 3270Ω ±10% (Pin 3), 3770Ω ±10% (Pin 1) |
| Inductance | ≤ 160 mH |
| Active Capacity | Insignificant |
| Protection Class | IP65 |
| Operating Temperature | -20°C to +200°C |
| Material | Stainless Steel |
| Relative Humidity | 0–100%, non-condensing |
| Power Supply | Self-powered |
| Cable Material | PTFE, 3x 0.5 mm² |
| Armor Material | Stainless Steel |
| Connector Type | Harting Die-cast Aluminum Plug |
| Dimensions (Diameter × Height) | 78 × 58 mm |
| Weight | 1.05 kg (with armored cable) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of machinery is this sensor suitable for?
A1: It is designed for critical rotating machinery such as steam, gas, and hydro turbines, compressors, pumps, and fans.
Q2: Does this sensor require an external power supply?
A2: No, it is a self-powered sensor and does not require an external power source.
Q3: What is the frequency response range of this model?
A3: The PR9268/601-000 covers a frequency range from 10 Hz to 1000 Hz.
Q4: What is the recommended mounting orientation?
A4: This model is intended for vertical installation, allowing ±60° deviation with current sinking configuration.
Q5: What is the maximum acceleration this sensor can handle?
A5: It can withstand 10g continuous and 20g intermittent peak-to-peak acceleration.
Q6: What is the protection rating and what environments is it suitable for?
A6: With an IP65 rating, it’s suitable for industrial environments with moisture, dust, or vibration.
Q7: Is this sensor certified for use in hazardous areas?
A7: Yes, it is certified for ATEX and IECEx intrinsic safety for hazardous environments.
Q8: What are the key advantages of PR9268/601-000 compared to other PR9268 variants?
A8: This version supports high temperatures (up to 200°C), has higher resistance and inductance, and is ideal for demanding applications in extreme environments.
