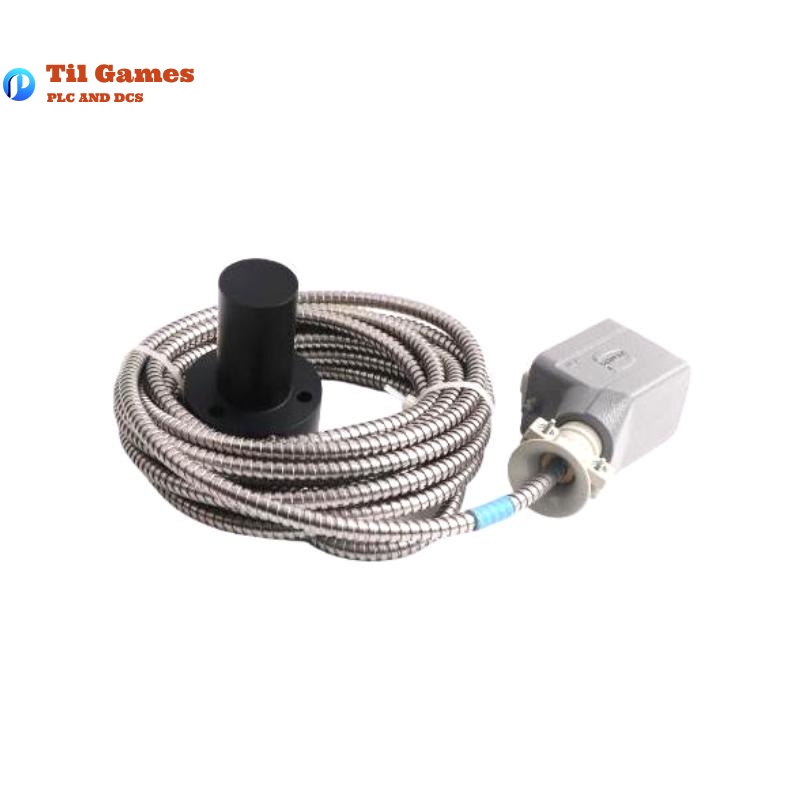

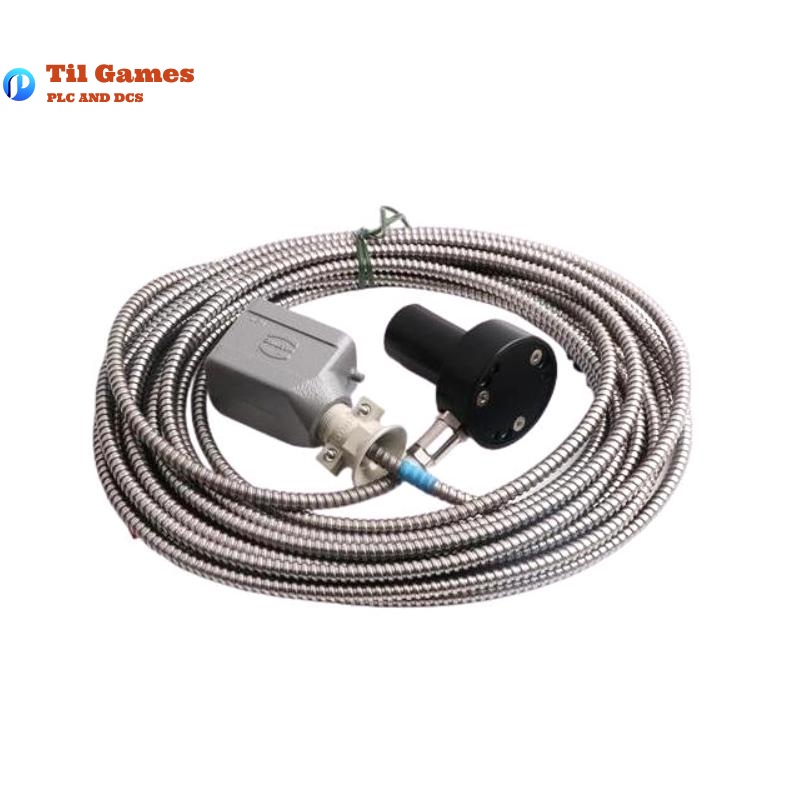

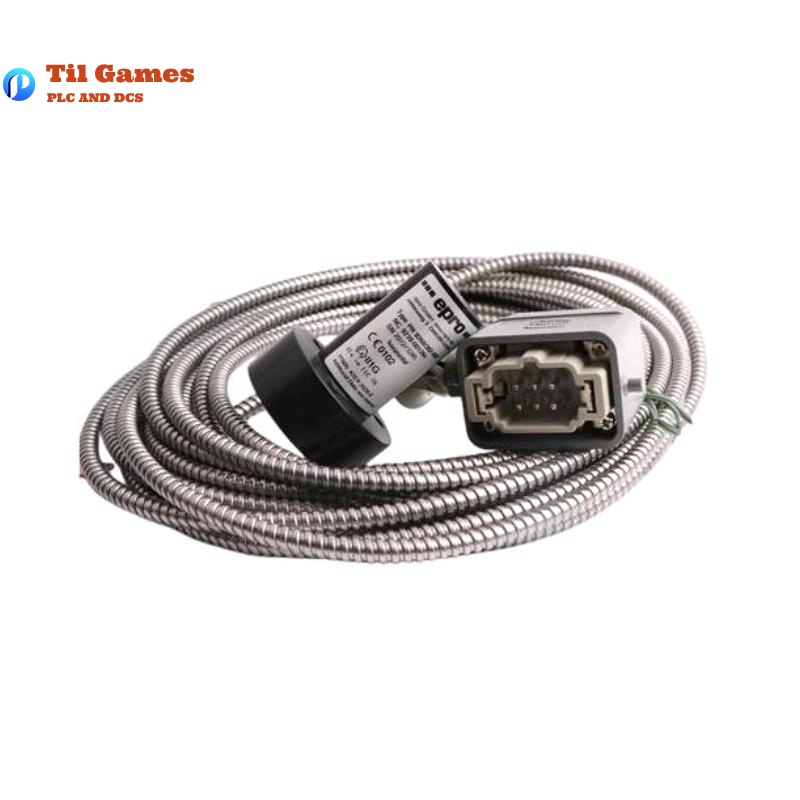

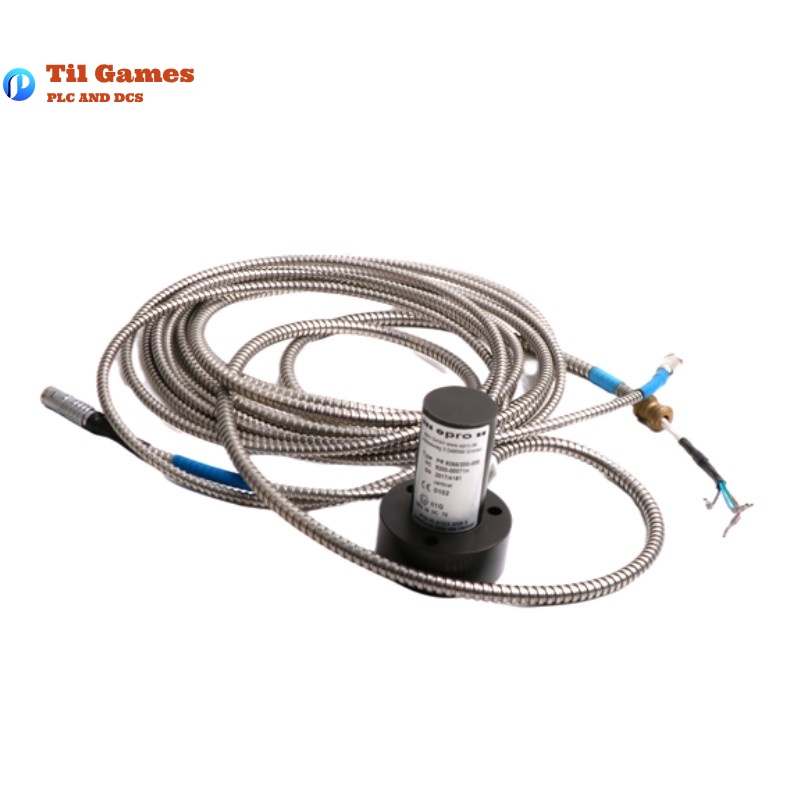

Epro PR9268/602-000 Mechanical Velocity Sensor

Frequently Asked Questions (FAQ)

Q1: What type of sensor is the PR9268/602-000?
A1: It is an electrodynamic mechanical velocity sensor for measuring absolute casing vibration on rotating machines.

Q2: What installation orientation is supported?
A2: It is designed for vertical installation and supports ±60° angular deviation with sinking current.

Q3: What is the sensitivity rating?
A3: Depending on the pin and load, it provides 22.0 or 16.7 mV/mm/s.

Q4: What is the operating temperature range?
A4: The sensor operates from -20°C to +200°C.

Q5: Does it have a protection class rating?
A5: Yes, it is rated IP65, making it suitable for harsh industrial environments.

Q6: What are the power requirements?
A6: The sensor is self-powered and does not require an external power source.

Q7: What is the maximum vibration amplitude it can withstand?
A7: It can handle up to 3000µm peak-to-peak, with a limit of 4000µm.

Q8: What are its dimensions and weight?
A8: The sensor measures 78×58 mm and weighs 1.05 kg.

Epro Mechanical Velocity Sensor PR9268/602-000
