Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro (Schneider Electric / Invensys) |

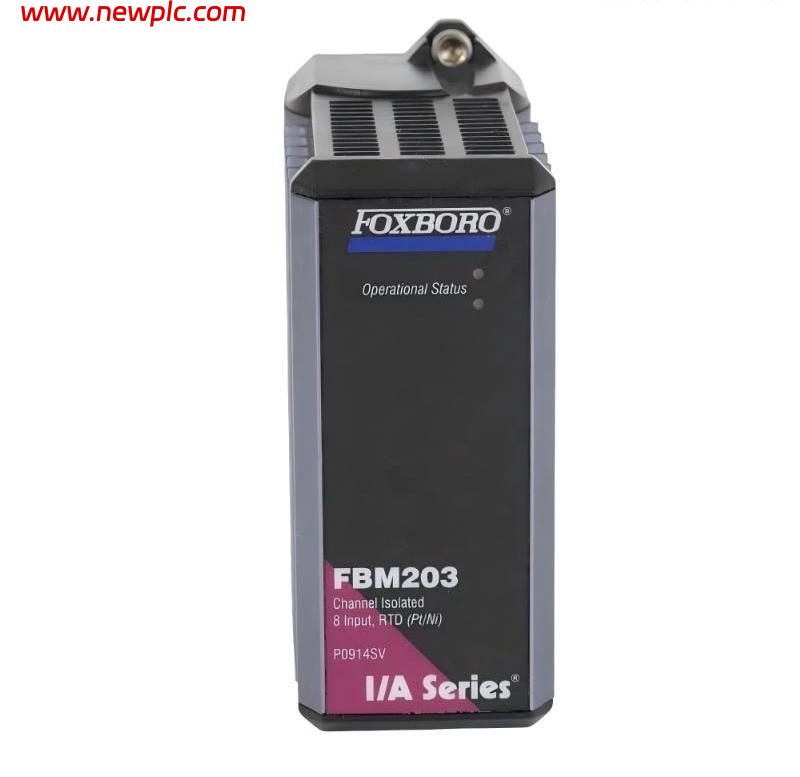

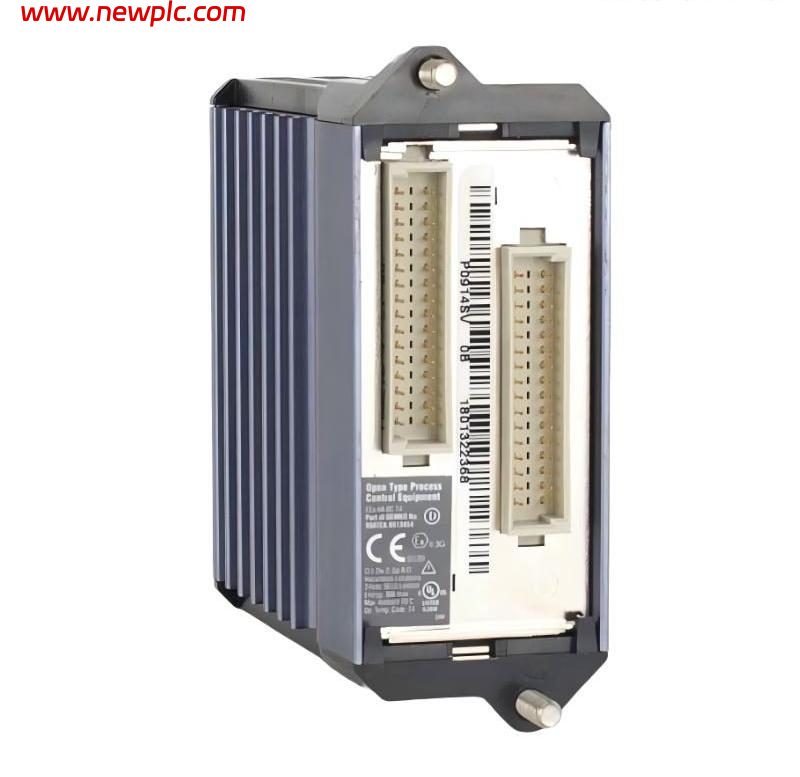

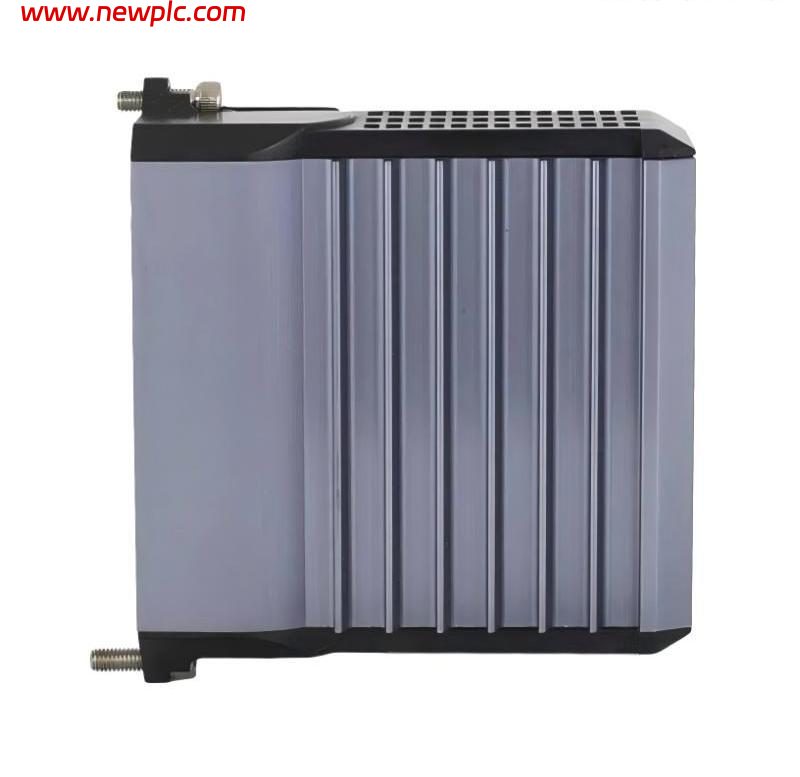

| Model | FBM203 |
| Product Number | P0914SV |
| Product Type | RTD Input Interface Module |
| System | Foxboro I/A Series / Standard 200 Series |
| Input Channels | 8 isolated RTD input channels |
| Input Configuration | 2-wire or 3-wire RTD |
| Supported RTD Types | Platinum and Nickel RTDs |
| Input Resistance Range | 0–320 Ω |
| Sensor Current | 0.19 mA DC nominal |
| Lead Resistance | 50 Ω maximum per lead |
| Channel Isolation | Galvanically isolated between channels and ground |
| Fieldbus Communication | 2 Mbps HDLC Module Fieldbus |
| Fieldbus | Redundant Fieldbus supported |
| Main Function | Converts RTD resistance signals from field temperature sensors into digital process data for the Foxboro control system |
| Mounting | Standard 200 Series baseplate |
| Operating Temperature | -20 to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (L × W × H) | 104 × 45 × 102 mm |
| Dimensions with Mounting Lugs | 104 × 45 × 114 mm |
| Approx. Weight | 0.3 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FBM203 P0914SV?
A: It is an RTD Input Interface Module used in Foxboro I/A Series and Standard 200 Series control systems.
Q2: How many RTD input channels does P0914SV provide?
A: The FBM203 provides 8 isolated and independent RTD input channels.
Q3: What type of RTD sensors are supported?
A: The standard FBM203 supports 2-wire and 3-wire RTD sensors, including common platinum and nickel RTD applications.
Q4: What is the input resistance range?
A: Each FBM203 channel supports an input range of 0 to 320 Ω.
Q5: Are the RTD input channels isolated?
A: Yes. Each analog input is galvanically isolated from the other channels and from ground, helping improve signal integrity in industrial environments.
Q6: How does P0914SV communicate with the control system?
A: The module communicates through the Foxboro 2 Mbps HDLC Module Fieldbus, with redundant Fieldbus operation supported.
Q7: What are the dimensions and weight of P0914SV?
A: The module measures approximately 104 × 45 × 102 mm (L × W × H), or 104 × 45 × 114 mm including mounting lugs, with an approximate weight of 0.3 kg.
Q8: Is P0914SV still the current part number?
A: P0914SV is the earlier part number. RH914SV is the newer/superseding part number for the FBM203 RTD Input Module.
