Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Foxboro |
| Product Number | FBM216 P0916BX |

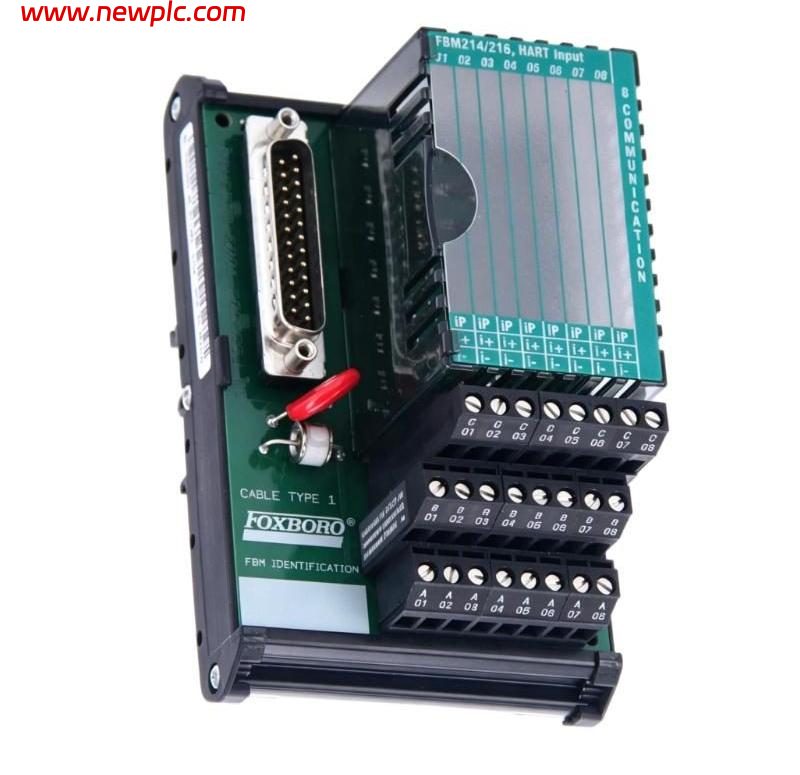

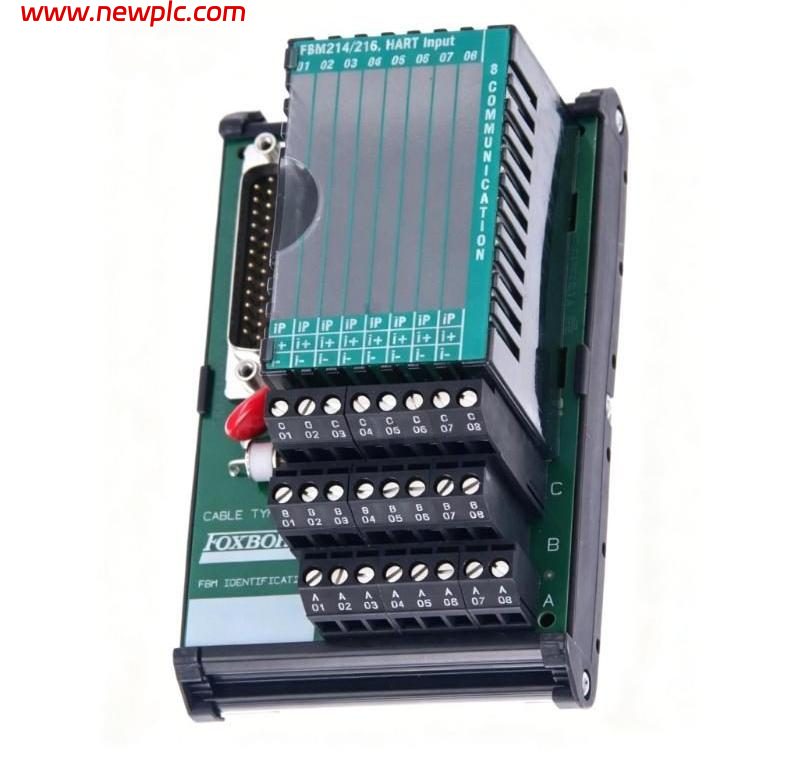

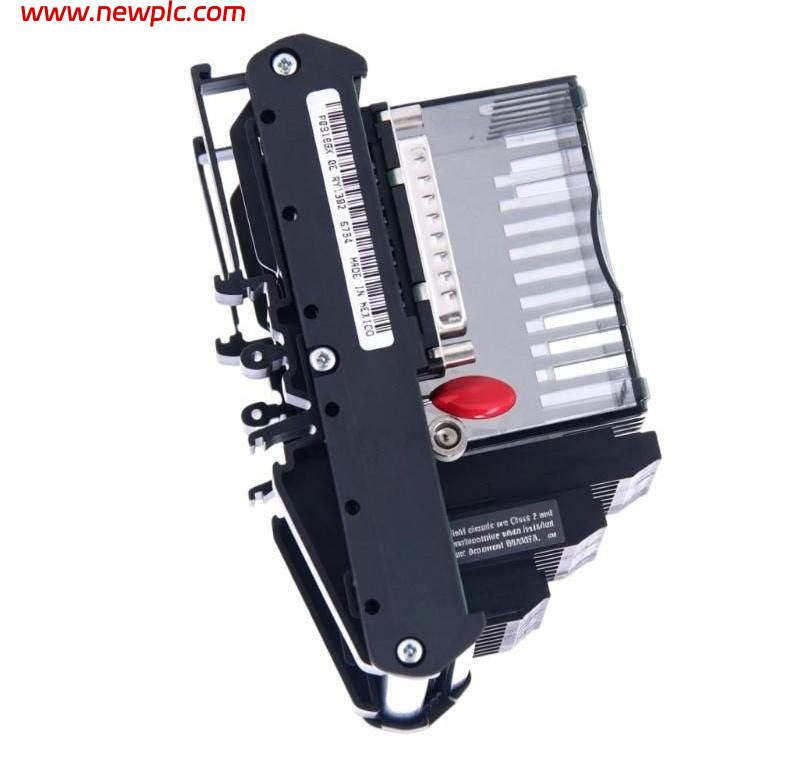

| Product Type | HART Communication Input Interface Module / Termination Assembly |
| FBM Type | FBM216 |
| Termination Assembly | P0916BX |
| Termination Type | Compression screw type |
| Input Channels | 8 |
| Input Signal | 4–20 mA analog input, with or without HART signal superimposed |
| HART Communication | Supported |
| HART Function | Provides the field connection for HART-enabled transmitters and allows the control system to communicate with field devices |
| Channel Configuration | 8 input channels, no signal outputs |
| Redundancy | FBM216 supports redundant module operation when used with the appropriate redundant adapter |
| Associated Ring-Lug Termination | P0926EA |
| Associated PA Termination | P0926TD |
| Associated Cable | P0916DA through P0916DJ, depending on required cable length |
| Maximum Termination Cable Length | 30 m (98 ft) |
| Mounting | DIN rail-mounted termination assembly |
| Termination Material | PVC compression-terminal version |
| Operating Temperature | Depends on termination material; PVC version is rated approximately -20 to +50°C (-4 to +122°F) |
| Dimensions | Approx. 130 × 32 × 107 mm |
| Weight | Approx. 0.30 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is the Foxboro FBM216 P0916BX used for?
A: The P0916BX is a compression termination assembly used with the Foxboro FBM216 to connect eight 4–20 mA field input signals, including HART-enabled signals.
Q2: How many input channels does the FBM216 support?
A: The FBM216 provides 8 input channels. The inputs can receive 4–20 mA analog signals with HART communication superimposed.
Q3: Does the P0916BX support HART communication?
A: Yes. The P0916BX is used with the FBM216 for field connections carrying 4–20 mA signals with HART communication. The FBM216 acts as the HART communication interface for the connected field devices.
Q4: Is P0916BX the FBM216 module itself?
A: No. P0916BX is the termination assembly for the FBM216. The FBM216 electronics are installed on the I/A Series baseplate, while the P0916BX provides the field wiring termination.
Q5: What type of terminals does the P0916BX use?
A: P0916BX uses compression screw terminals. A ring-lug alternative for the FBM216 is P0926EA.
Q6: Can the FBM216 be used in a redundant configuration?
A: Yes. The FBM216 can be operated as a redundant pair. When redundancy is used, the appropriate redundant adapter is installed on the baseplate.
Q7: What cable is used between the FBM216 baseplate and P0916BX?
A: Several termination cables are available, from 0.5 m up to 30 m. The P0916DA through P0916DJ series covers the different cable lengths.
Q8: What are the dimensions and weight of the P0916BX?
A: The P0916BX termination assembly is approximately 130 × 32 × 107 mm and weighs about 0.30 kg. These figures refer to the termination assembly rather than the FBM216 electronic module.
