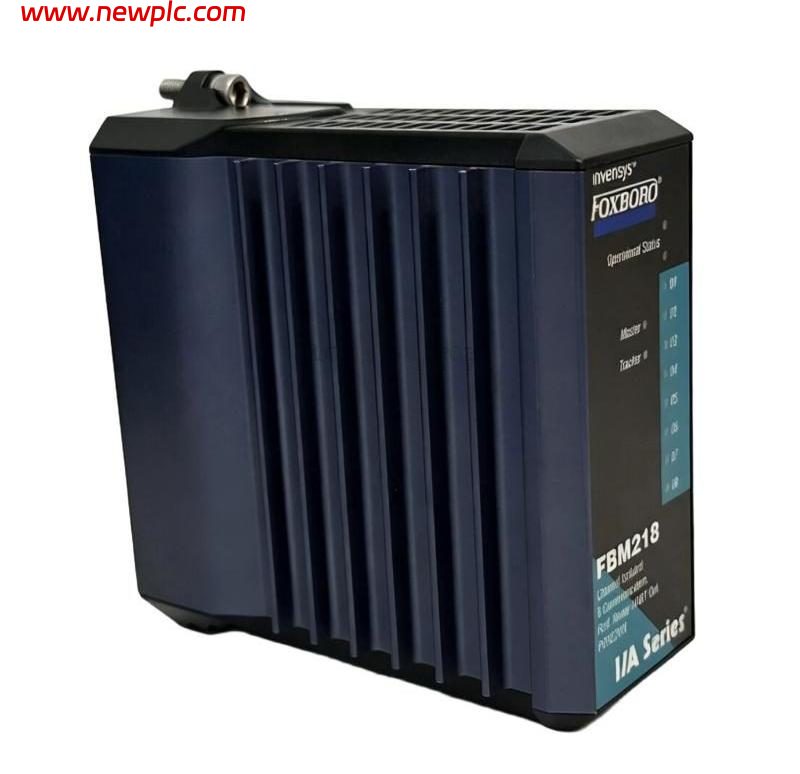

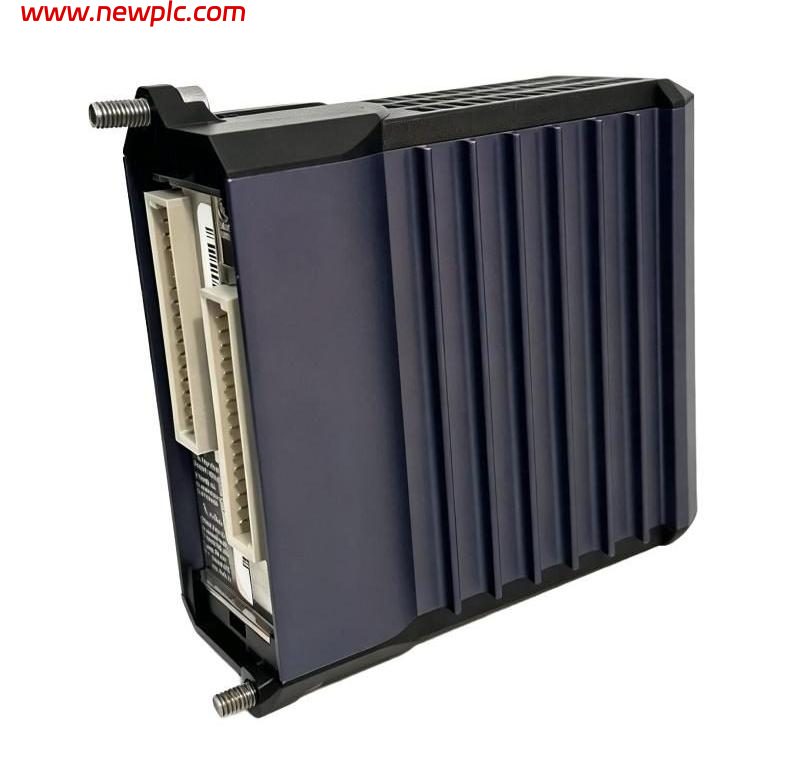

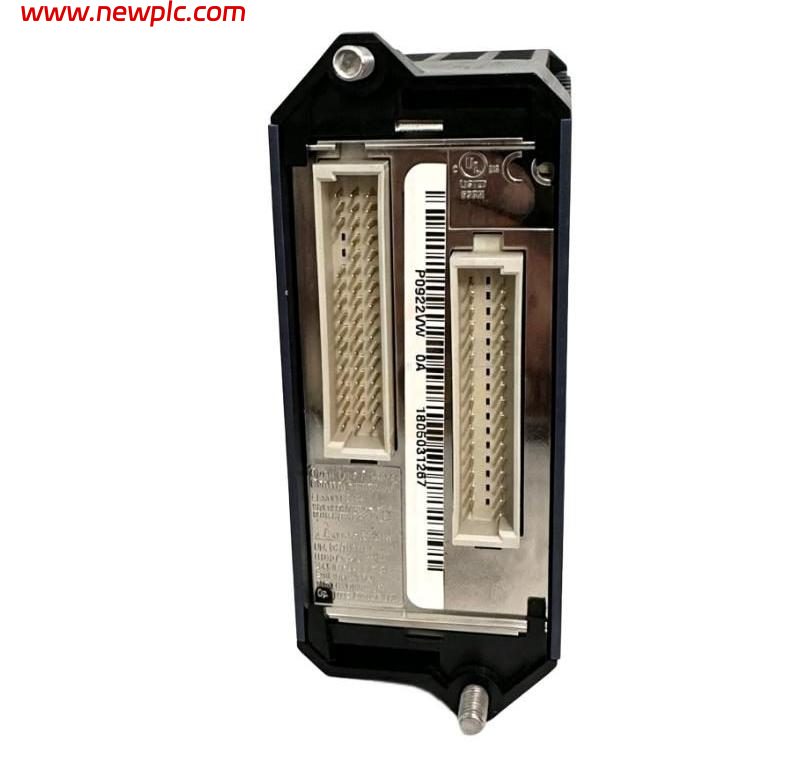

Foxboro FBM218 P0922VW HART Communication Redundant Output Interface Module

FAQ

Q1: What is the Foxboro FBM218 P0922VW?
The FBM218 P0922VW is an 8-channel HART communication redundant output interface module for Foxboro I/A Series control systems.

Q2: How many output channels does the FBM218 provide?
It provides 8 isolated analog output channels.

Q3: What output signal does the FBM218 support?
Each channel provides a standard 4–20 mA output, with HART digital communication superimposed on the analog signal.

Q4: Which HART versions are supported?
The module supports HART-compatible instruments compliant with HART Versions 5, 6 and 7.

Q5: Can the FBM218 operate redundantly?
Yes. Two FBM218 modules can be configured as a redundant pair, with one module operating as the Master and the other as the Tracker.

Q6: Are the output channels electrically isolated?
Yes. The eight output channels are galvanically isolated from each other, ground and module logic. The isolation withstands up to 600 VAC between isolated channels and ground.

Q7: What are the dimensions of the FBM218 P0922VW?
The module measures approximately 114 × 45 × 104 mm (H × W × D), including the mounting lugs.

Q8: How much does the FBM218 P0922VW weigh?
The module weighs approximately 0.284 kg (284 g).

FBM218 Foxboro P0922VW
