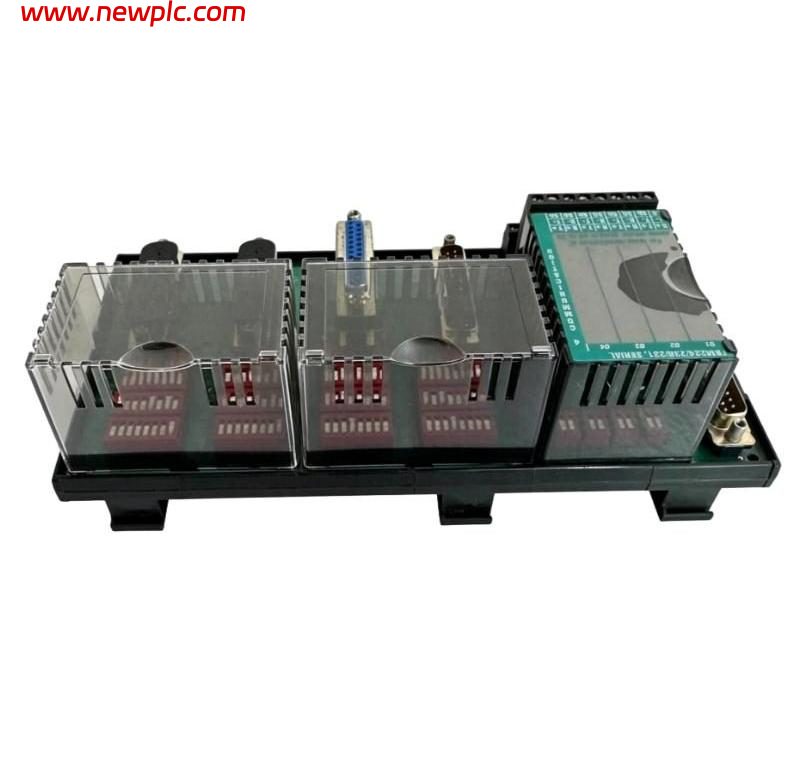

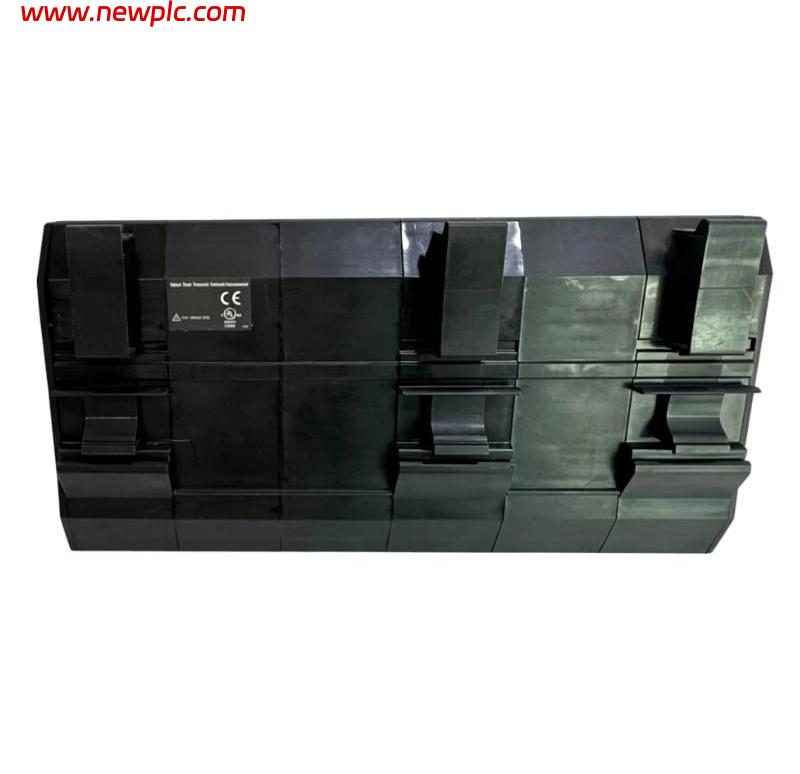

Foxboro FBM230 RH926GH Compression Screw Termination Assembly

FAQ

Q1: What is the Foxboro FBM230 RH926GH?
RH926GH is the compression-screw termination assembly used with the FBM230 Field Device System Integrator module.

Q2: Is RH926GH a replacement for P0926GH?
Yes. RH926GH supersedes the legacy P0926GH termination assembly.

Q3: Which modules are compatible with RH926GH?
It can be used with FBM224, FBM230, and FBM231 serial communication modules.

Q4: How many serial ports does the termination assembly support?
RH926GH provides connections for four independent serial ports.

Q5: Which communication interfaces are supported?
The assembly supports field connections for RS-232, RS-422, and RS-485 devices.

Q6: What type of field termination does RH926GH use?

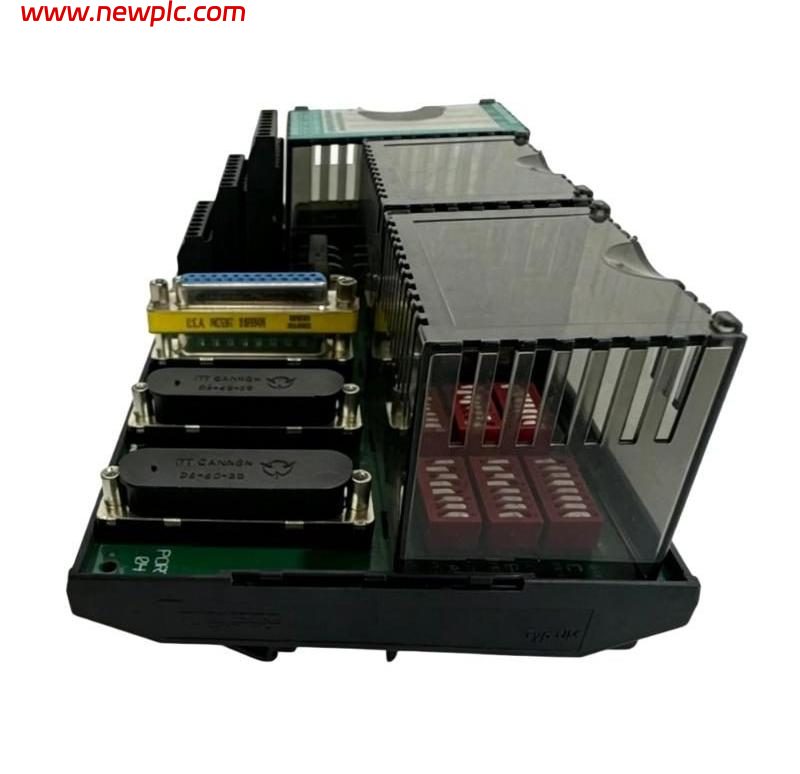

It uses compression-screw terminals for RS-422 and RS-485 field wiring. It also provides DB-25 connectors for RS-232 devices.

Q7: What are the dimensions and weight of RH926GH?
The termination assembly is approximately 216 × 111 × 80 mm and weighs approximately 0.272 kg.

Q8: What cable length can be used between the FBM230 and RH926GH?
Type 5 termination cables are available from 1 m to 5 m. RS-422/RS-485 field communication can extend up to 1200 m, depending on the installation and network configuration.

FBM230 Foxboro RH926GH
