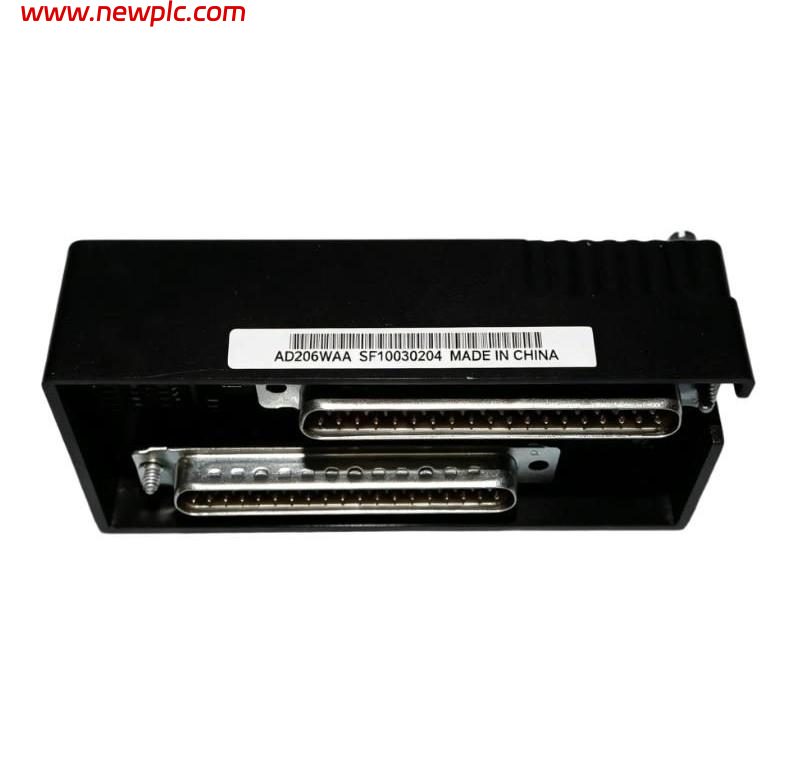

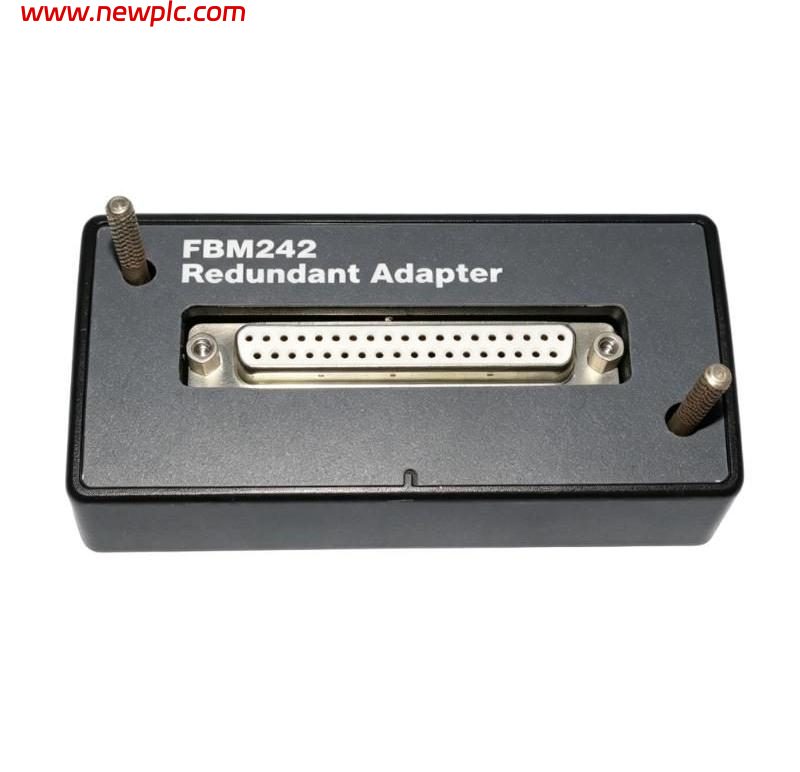

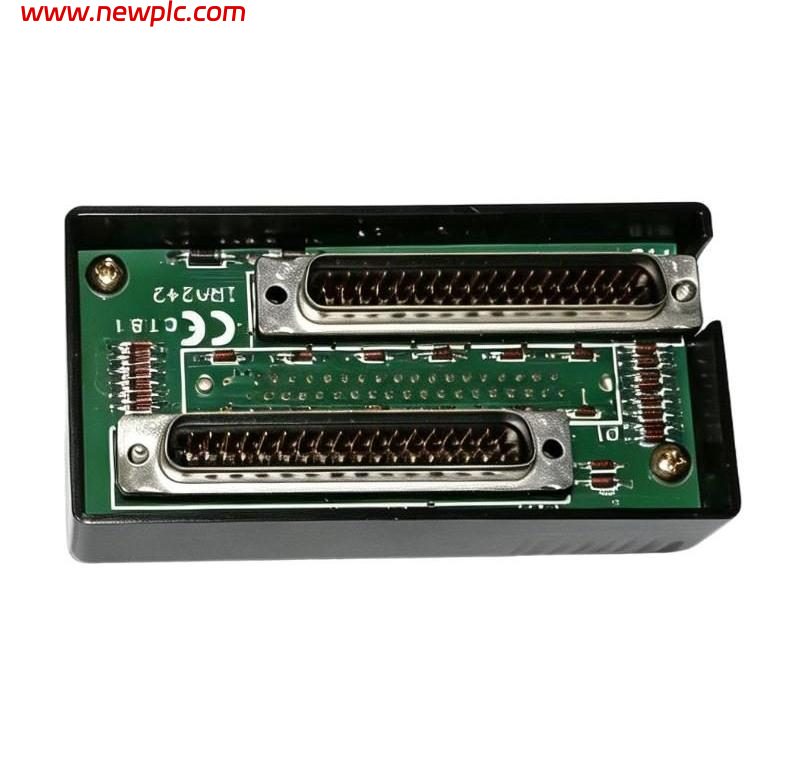

Foxboro FBM242 AD206WA Termination Assembly

FAQ

Q1: What is Foxboro AD206WA?
AD206WA is a termination assembly used with the Foxboro FBM242 discrete output system.

Q2: Which module is AD206WA used with?
It is associated with the FBM242 16-channel externally sourced discrete output module.

Q3: How many channels does the FBM242 system support?
The FBM242 provides 16 isolated discrete output channels.

Q4: What is the output voltage range?
The FBM242 supports an applied output voltage of 15–60 VDC.

Q5: What is the maximum load current per channel?
The maximum specified load current is 2.25 A per channel.

Q6: Is the output channel isolated?
Yes. Each FBM242 output channel is galvanically isolated from the other channels and ground.

Q7: How is AD206WA installed?
The termination assembly is designed for DIN-rail installation and connects to the FBM through the applicable termination cable.

Q8: What are the approximate dimensions and weight?
The 216 mm compression termination assembly configuration is approximately 216 × 80 × 125 mm and weighs about 0.32 kg.

AD206WA FBM242 Foxboro
