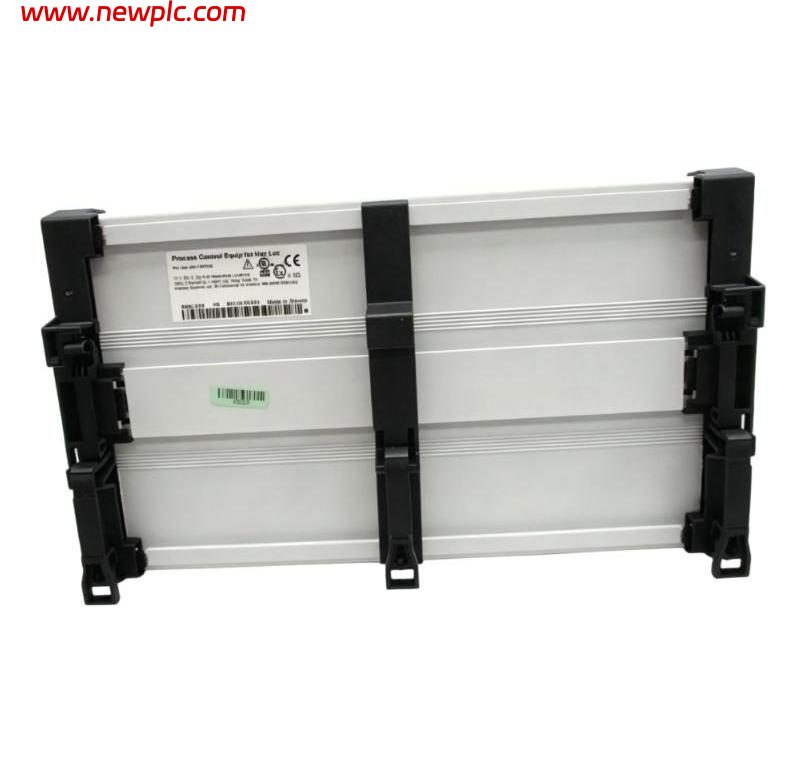

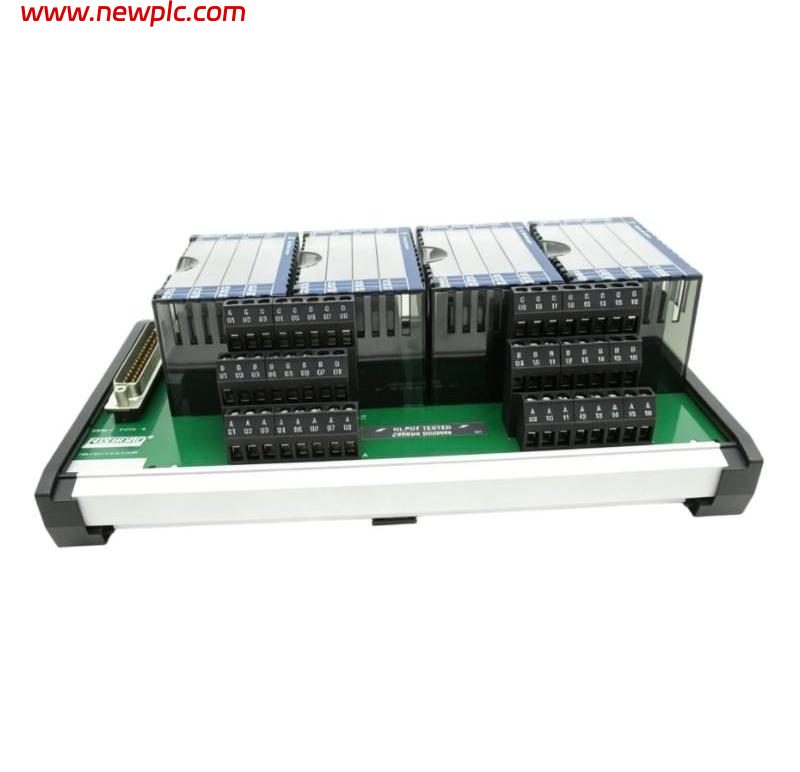

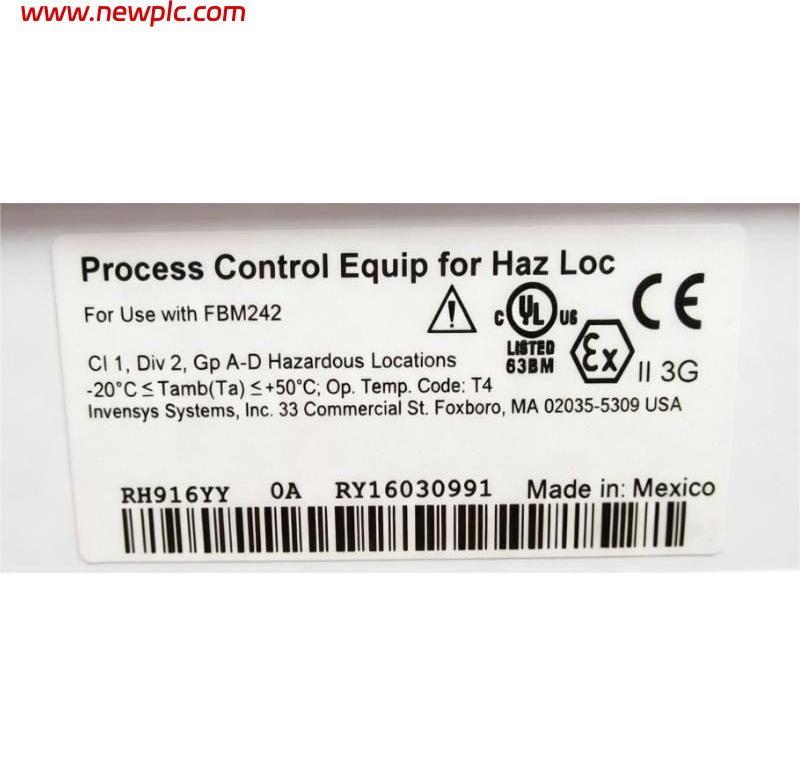

Foxboro FBM242 RH916YY Compression Termination Assembly

FAQ

Q1: What is Foxboro RH916YY?
RH916YY is a compression termination assembly designed for the Foxboro FBM242 discrete output module.

Q2: How many channels does RH916YY support?
It supports 16 discrete output channels.

Q3: What type of relay output does RH916YY provide?
It uses SPDT (Form C) relay contacts for externally sourced field outputs.

Q4: What is the maximum output rating?
The relay contacts support up to 5 A at less than 30 VDC or up to 5 A at 250 VAC under the specified conditions.

Q5: Is RH916YY the same as the FBM242 module?
No. RH916YY is the termination assembly, while FBM242 is the associated I/O module.

Q6: What termination method does RH916YY use?
It uses compression terminals and a Type 4 termination cable.

Q7: What is the operating temperature range?
The polyamide termination assembly is rated for -20 to +70°C.

Q8: Does RH916YY replace P0916NG?
Yes. Current Foxboro documentation lists RH916YY as the replacement for P0916YY and P0916NG.

FBM242 Foxboro RH916YY
