Technical Specifications
| Parameter | Specification |
|---|---|

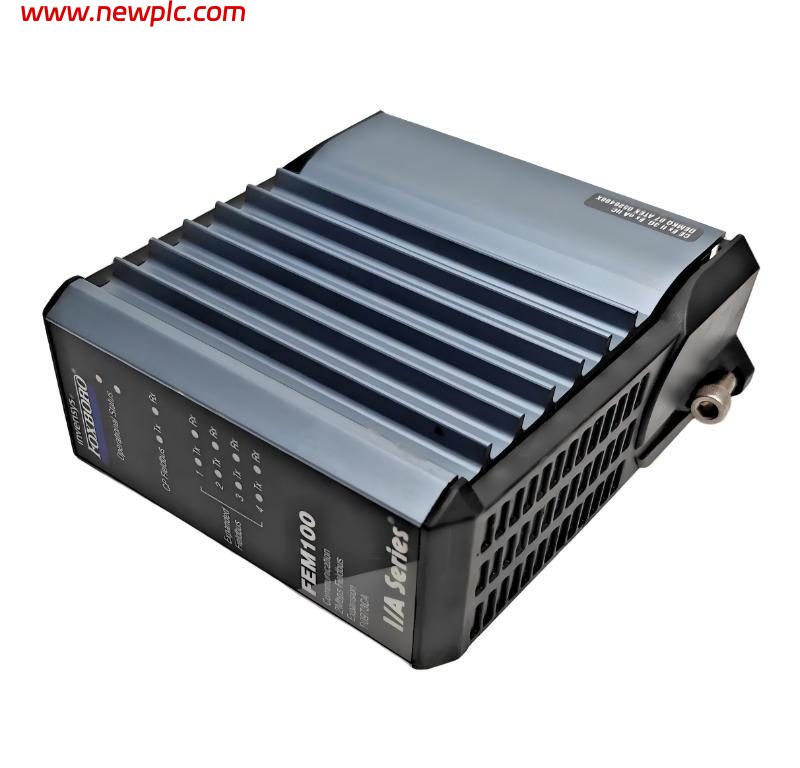

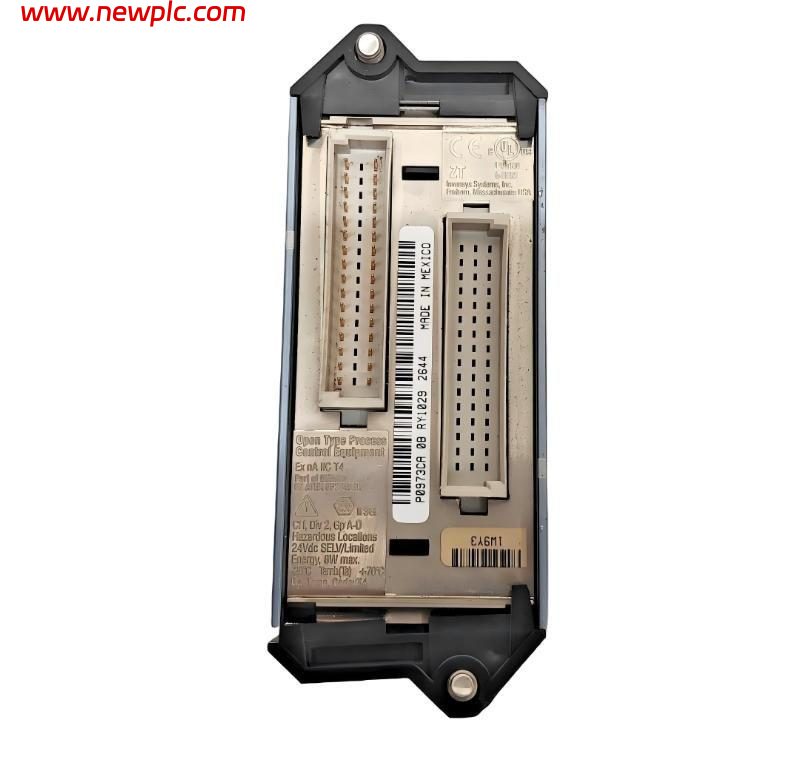

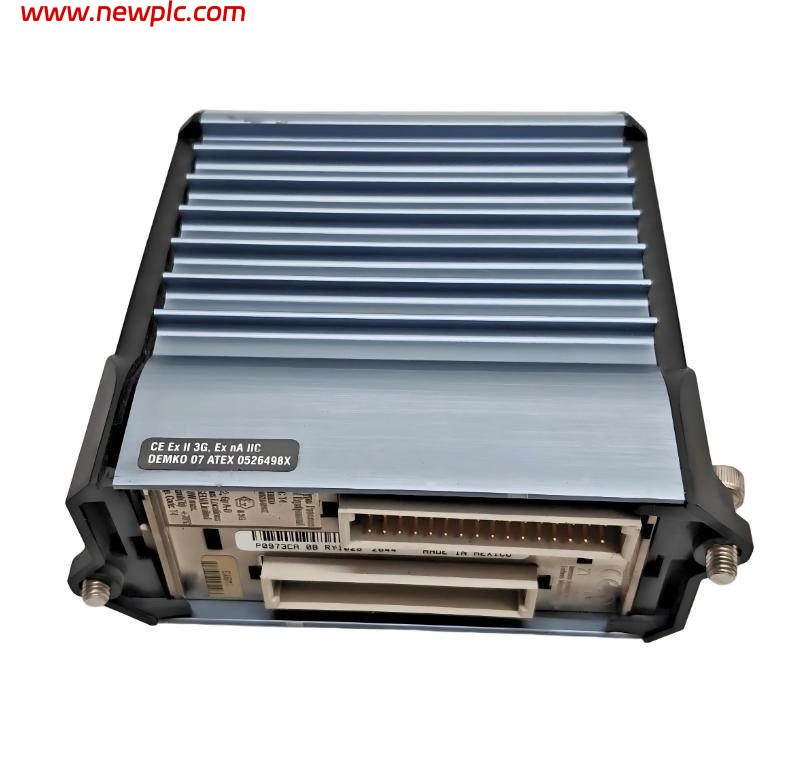

| Manufacturer | Foxboro (Schneider Electric / Invensys) |
| Model | FEM100 |
| Product Number | P0973CA |
| Product Type | Fieldbus Expansion Module |
| System | Foxboro I/A Series / Foxboro Evo |
| Main Function | Provides four expanded Fieldbuses to the FCP270 |
| Expanded Fieldbuses | 4 |
| Supported FBMs | Up to 32 × 200 Series FBMs per expanded Fieldbus |
| Transmission Rate | 2 Mbps for 200 Series DIN FBMs |
| Input Voltage | 21–26 VDC |
| Maximum Power Consumption | 2.2 W |
| Fieldbus Cable Length | Up to 60 m (198 ft) without FCM2F modules |
| Mounting | P0973CG Two-Slot or P0973CN Four-Slot Expansion Baseplate; vertical DIN rail |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Relative Humidity | 5–95%, non-condensing |
| Operating Altitude | -300 to +3,000 m (-1,000 to +10,000 ft) |
| Dimensions (H × W × D) | 99 × 44.6 × 105 mm |
| Height with Mounting Lugs | 114 mm |
| Approx. Weight | 0.6 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro FEM100 P0973CA?
A: It is a Fieldbus Expansion Module used with Foxboro I/A Series and Foxboro Evo control systems.
Q2: What is the main function of P0973CA?
A: The FEM100 expands the Fieldbus capacity of an FCP270, providing four additional Fieldbuses for connecting 200 Series FBMs.
Q3: How many Fieldbuses does the FEM100 provide?
A: It provides four Expanded Fieldbuses. Each can accommodate up to 32 200 Series FBMs, subject to the overall system configuration.
Q4: What is the communication speed of P0973CA?
A: The transmission rate is 2 Mbps for 200 Series DIN FBMs using the HDLC Fieldbus.
Q5: What power supply does P0973CA require?
A: The specified input voltage range is 21 to 26 VDC, with maximum power consumption of 2.2 W.
Q6: What is the maximum Fieldbus cable length?
A: Without FCM2F fiber-optic communication modules, the maximum Fieldbus cable length is approximately 60 m (198 ft).
Q7: What are the dimensions and weight of P0973CA?
A: The module measures approximately 99 × 44.6 × 105 mm (H × W × D), or 114 mm high including mounting lugs, and weighs approximately 0.6 kg.
Q8: What should be checked before replacement?
A: Confirm the FEM100 model, P0973CA part number, FCP270 configuration, expansion baseplate type, 21–26 VDC supply, Fieldbus cabling, and redundancy arrangement before replacement. The FEM100 can be installed as a single module or as a redundant pair on the appropriate P0973CG or P0973CN baseplate.
