Technical Specifications
| Parameter | Specification |
|---|---|

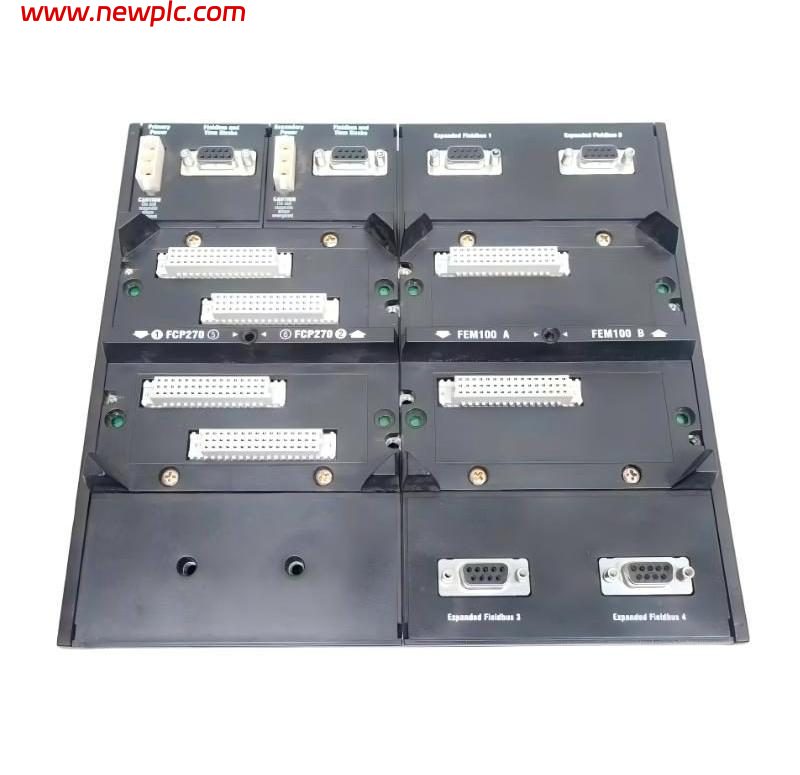

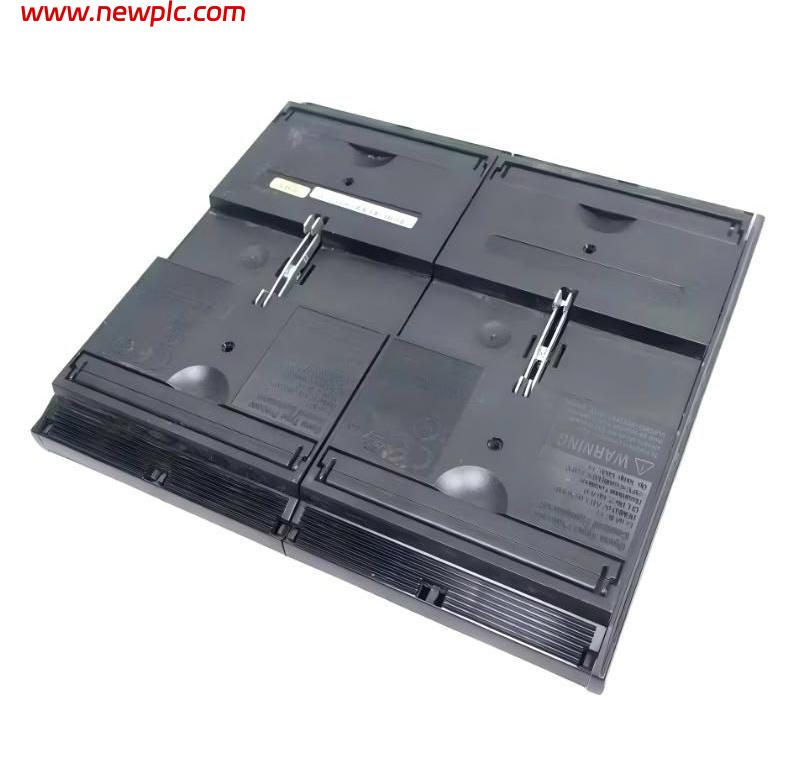

| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Product Number | P0926JM |
| Product Type | 8-Position Modular Baseplate |
| System | Foxboro I/A Series / Foxboro Evo |
| Mounting | DIN Rail |
| Module Positions | 8 |
| Main Function | Provides mounting, power distribution, Fieldbus and time-strobe interconnections for compatible FBM/FCM modules |
| Compatible Modules | FBM and/or FCM modules |
| Power Inputs | Primary and secondary power inputs |
| Fieldbus Interface | Dual Fieldbus interfaces |
| Time Strobe | Supported |
| Module Identification | Baseplate identification DIP switches |
| Configuration | 8-position modular I/O configuration |
| Dimensions (L × W × H) | Approx. 455 × 215 × 40 mm |
| Approx. Weight | 1.4 kg |
| Origin | USA |
FAQ
FAQ
Q1: What is Foxboro P0926JM?
A: It is an 8-position modular baseplate for Foxboro I/A Series control systems.
Q2: What is the product type?
A: The product type is 8-Position Modular Baseplate.
Q3: What is the main function of P0926JM?
A: It provides the physical mounting platform and electrical interconnections for compatible FBM and FCM modules, including power, Fieldbus and time-strobe connections.
Q4: How many modules can P0926JM accommodate?
A: It provides eight module positions, allowing multiple FBM/FCM modules to be installed on the same baseplate.
Q5: What type of mounting does P0926JM use?
A: P0926JM is designed for DIN-rail mounting in the Foxboro I/A Series 200 Series modular system.
Q6: Does P0926JM support redundant power?
A: Yes. The baseplate provides primary and secondary power inputs, supporting power-supply redundancy.
Q7: What are the approximate dimensions and weight?
A: Supplier information lists approximately 455 × 215 × 40 mm (L × W × H) and approximately 1.4 kg. The actual packed/shipping weight can be higher.
Q8: What should be checked before replacement?
A: Confirm the P0926JM part number, eight-position configuration, DIN-rail mounting arrangement, FBM/FCM compatibility, power inputs, Fieldbus connections, and whether the newer RH926JM replacement is acceptable before installation. Foxboro documentation lists RH926JM as the successor to P0926JM.
