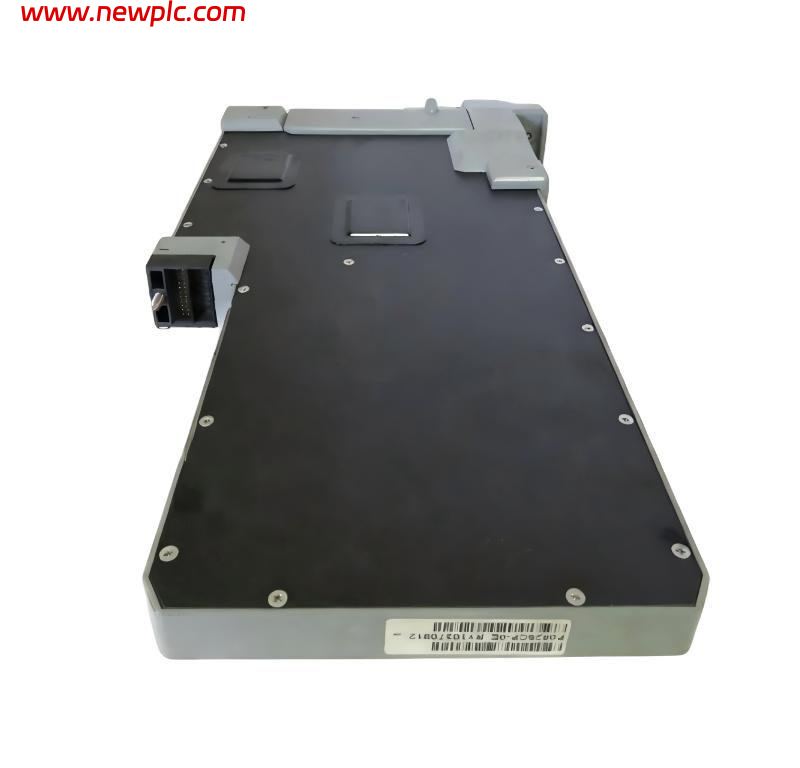

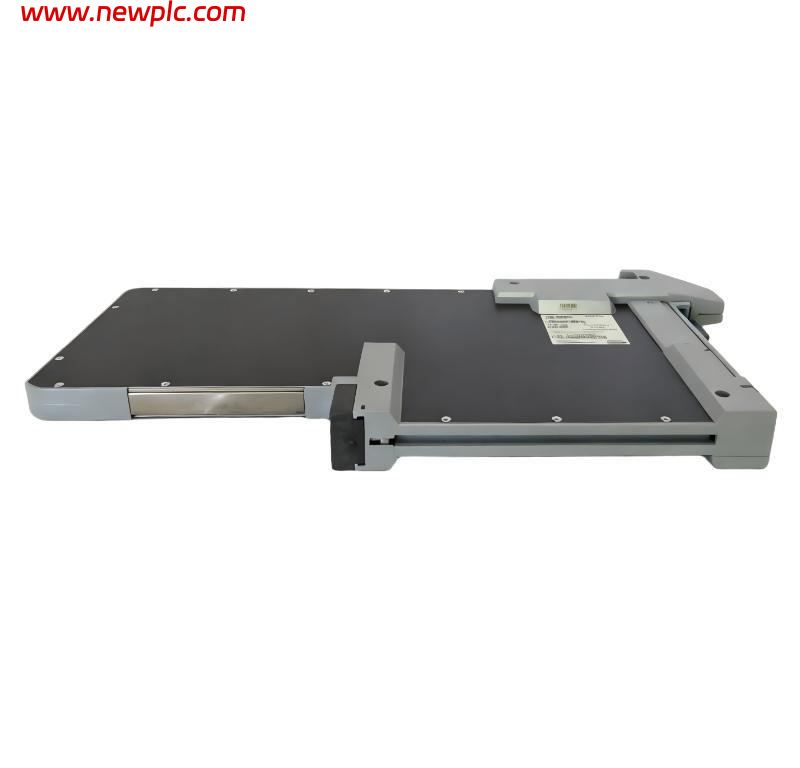

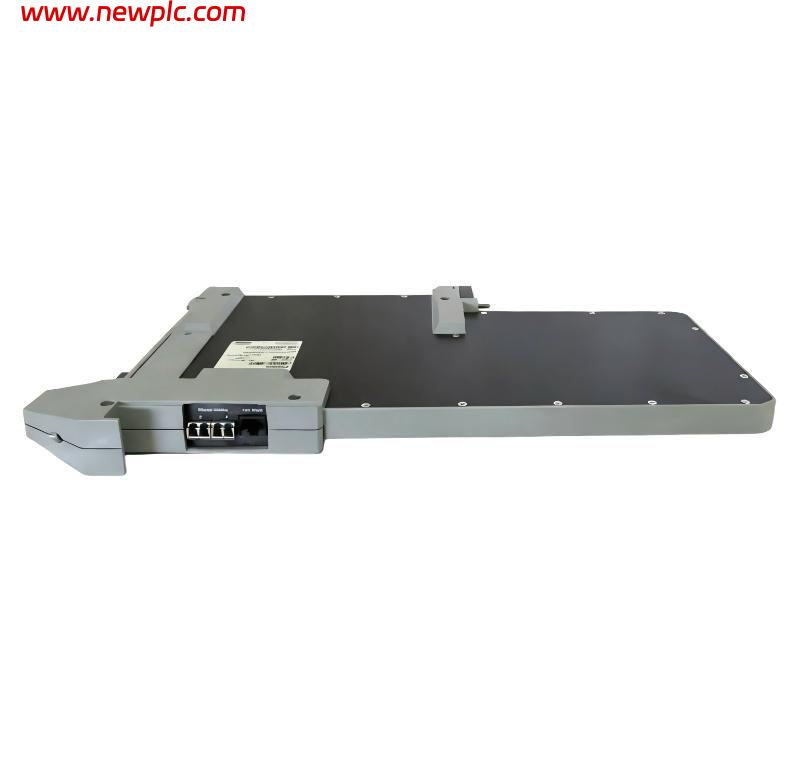

Foxboro ZCP270 P0926CP Z-Module Control Processor

FAQ

Q1: What is Foxboro ZCP270 P0926CP?
A: It is a Z-Module Control Processor 270 for the Foxboro I/A Series distributed control system.

Q2: What is the product type?
A: The product type is Z-Module Control Processor.

Q3: What processor does the P0926CP use?
A: The P0926CP uses an AMD Elan SC520 processor operating at 100 MHz.

Q4: How much memory does the ZCP270 have?
A: Each processor provides 16 MB SDRAM and 32 MB Flash memory.

Q5: What communication interface does the ZCP270 provide?
A: The ZCP270 connects to the Foxboro MESH control network and FCM100E/FCM100Et modules through 100 Mbps fiber-optic Ethernet.

Q6: How many FBMs can the P0926CP support?
A: The P0926CP can support up to 128 FBMs, depending on the system configuration.

Q7: What are the operating temperature and humidity ranges?
A: The specified operating temperature is 0 to 60°C, with 5–95% relative humidity, non-condensing.

Q8: What should be checked before replacement?
A: Confirm the I/A Series system configuration, P0926CP part number, ZCP270 version, communication configuration, mounting arrangement, and redundancy requirements before replacement. The fault-tolerant configuration uses two single-width processor modules installed in adjacent ZCP270 slots.
