Technical Specifications
| Item | Specification |
|---|---|
| Model | 350-C-P5-G5-H-S-M-N-P-SN-D-N |

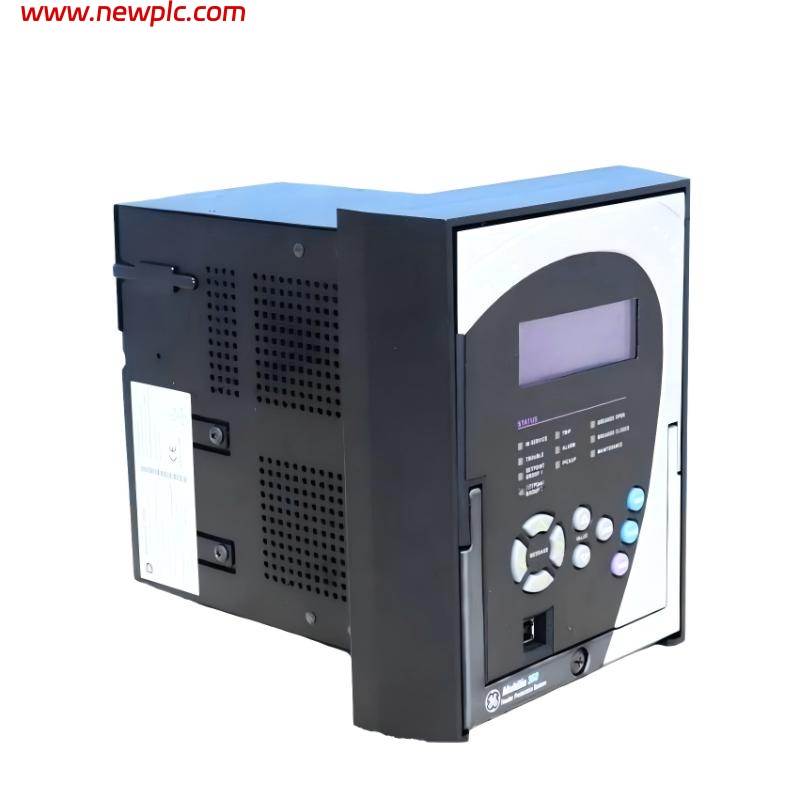

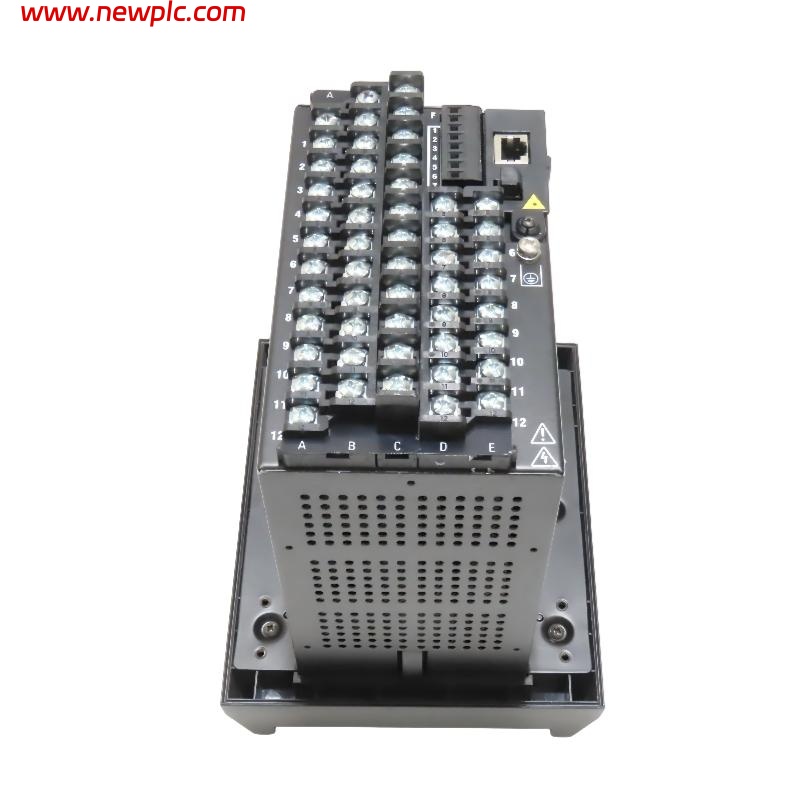

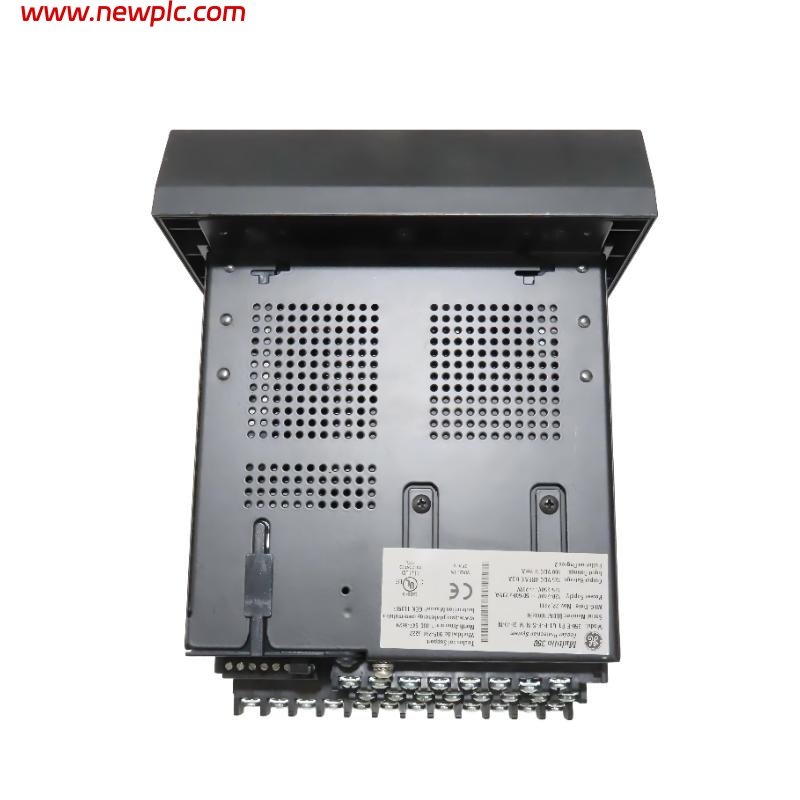

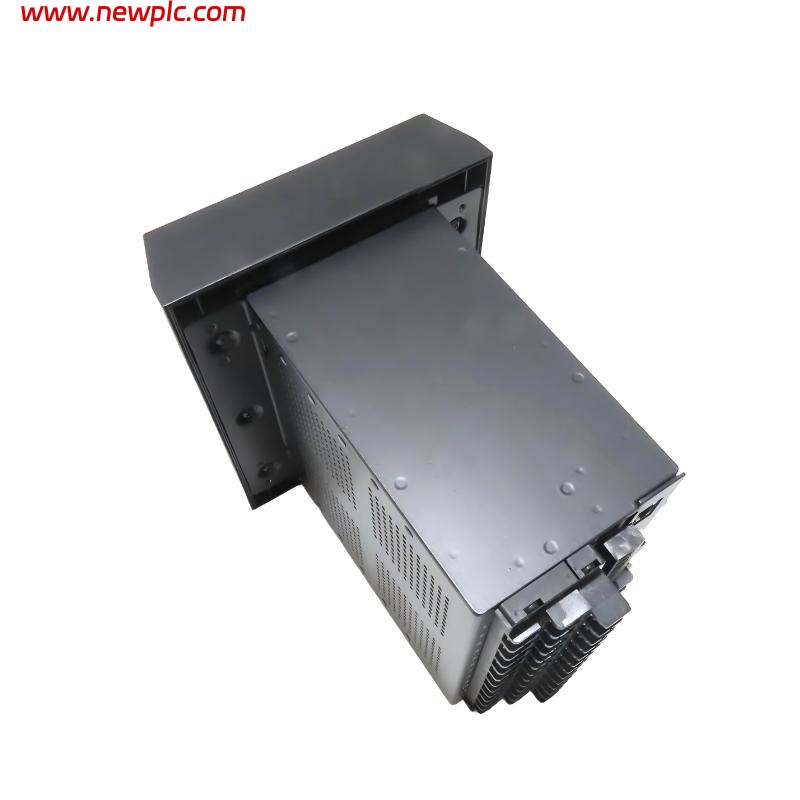

| Product Name | GE Multilin 350 Feeder Protection Relay |
| Manufacturer | GE |
| Series | Multilin 350 |
| Primary Function | Distribution feeder protection |
| Protection Functions | Phase overcurrent (50/51), Ground fault (50G/51G), Thermal overload, Phase imbalance |
| Measurement Parameters | Phase current, frequency, demand values |
| Control Functions | Trip control, breaker status supervision |
| Logic Capability | User-configurable logic and control equations |
| Communication Interfaces | Ethernet, RS485 |
| Supported Protocols | Modbus RTU, DNP3 |
| Event Recording | Fault reports, SOE records |
| Time Services | SNTP time synchronization |
| HMI | Front keypad with LCD display |
| Configuration | PC software configuration and front-panel setup |
| Security Features | Multi-level password system |
| Supply Voltage | Universal auxiliary power input |
| Mounting | Panel mounting |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Enclosure | Rugged metal housing |
| Dimensions | 201.51 × 168.2 × 244.2 mm |
| Weight | 4.1 kg |
FAQ
FAQ
Q1: What type of feeders is this relay best suited for?
A1: It is designed for medium- and low-voltage distribution feeders in utility and industrial networks.
Q2: Can this relay work with modern SCADA systems?
A2: Yes, it integrates through Ethernet or RS485 using standard communication protocols.
Q3: Does the relay record fault events automatically?
A3: Yes, all trips and abnormal conditions are logged with time stamps for later review.
Q4: Is it possible to configure logic functions for custom applications?
A4: Yes, internal logic allows user-defined control and interlocking functions.
Q5: How are overcurrent settings adjusted?
A5: Settings can be programmed locally through the keypad or via configuration software.
Q6: Does it support time-based coordination with other relays?
A6: Yes, adjustable time curves enable proper coordination with upstream and downstream devices.
Q7: Can the relay handle unstable or fluctuating supply voltages?
A7: Yes, the auxiliary power input is tolerant of wide voltage ranges.
Q8: What diagnostic tools are included?
A8: Built-in self-monitoring and alarm reporting help identify internal or external faults.
