Technical Specifications
| Item | Specification |
|---|---|
| Model | 750-P5-G5-S5-HI-A20-G-E |

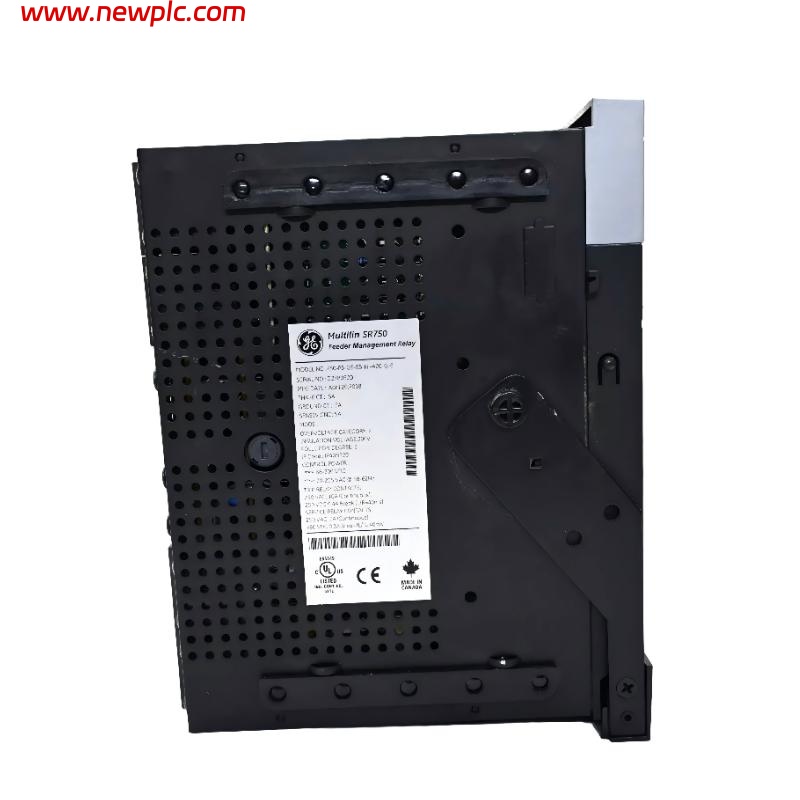

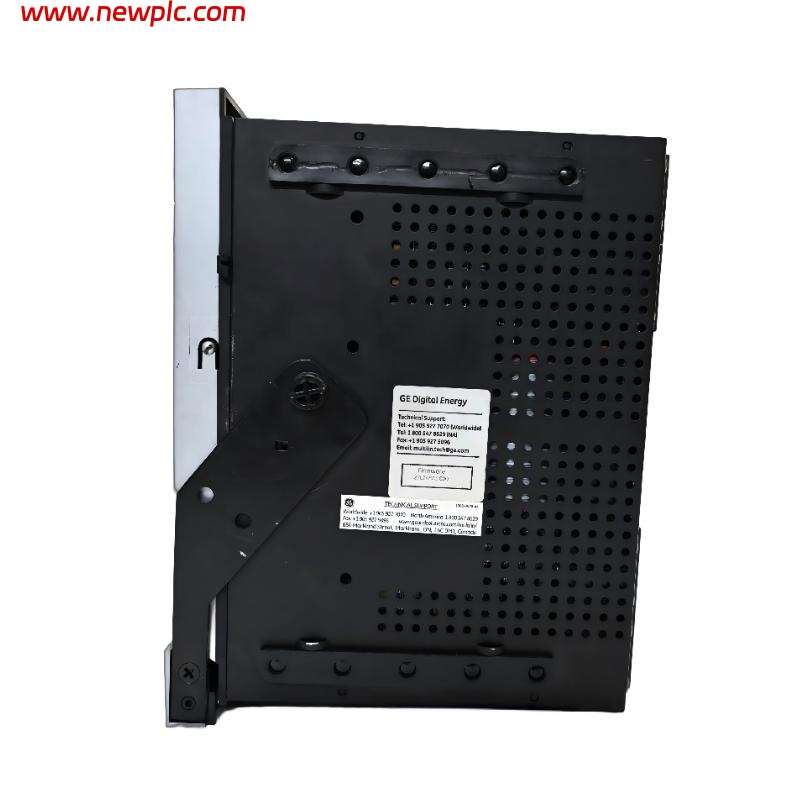

| Product Name | Multilin 750 Feeder Management Relay |
| Manufacturer | GE |
| Series | Multilin 750 |
| Application | Medium-voltage feeder protection and management |
| Protection Functions | Overcurrent (50/51), Ground fault (50G/51G), Phase unbalance, Thermal overload, Breaker failure |
| Measurement Functions | Three-phase current, frequency, load monitoring |
| Control Functions | Breaker control, trip and close logic |
| Automation Features | Programmable logic using FlexLogic |
| Communication Ports | Ethernet, RS485 |
| Communication Protocols | IEC 61850, Modbus RTU/TCP, DNP3 |
| Time Synchronization | SNTP, IRIG-B |
| Settings Groups | Multiple protection setting groups |
| Event Recording | SOE, event logs, oscillography |

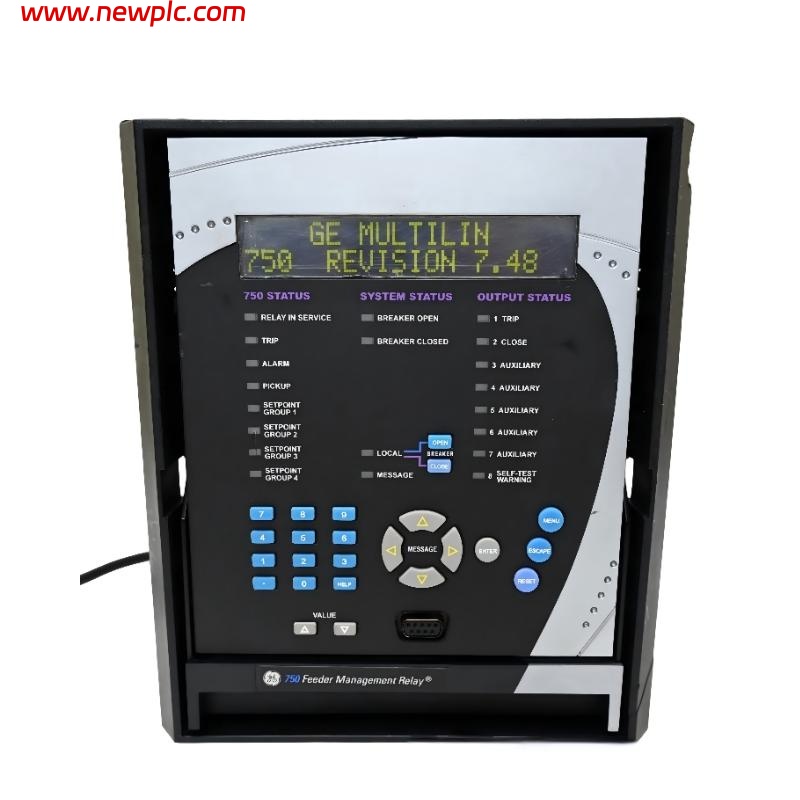

| HMI | Front-panel LCD with keypad |
| Cybersecurity | User access levels and password protection |
| Power Supply | Wide-range auxiliary supply |
| Mounting Type | Panel mount |
| Environmental Class | Substation environment |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Enclosure | Industrial metal housing |
| Dimensions | 252 × 216 × 224 mm |
| Weight | 6.35 kg |
FAQ
FAQ
Q1: What type of feeders is the Multilin 750 designed to protect?
A1: It is intended for medium-voltage industrial and utility distribution feeders.
Q2: Can this relay perform both protection and control tasks?
A2: Yes, it provides integrated protection, measurement, control, and automation in one device.
Q3: Does the relay support IEC 61850 for substation automation?
A3: Yes, IEC 61850 is supported for protection data exchange and station communication.
Q4: Can multiple protection setting groups be configured?
A4: Yes, several setting groups can be stored and switched as needed.
Q5: How are protection events recorded?
A5: The relay logs events, alarms, and disturbance records with timestamps.
Q6: Is remote access supported?
A6: Yes, communication interfaces allow remote monitoring and configuration through supported protocols.
Q7: Can custom logic be added to this relay?
A7: Yes, user-defined logic can be implemented using the built-in programmable feature.
Q8: How is system security managed?
A8: Access is controlled by user roles, passwords, and communication security features.
