Technical Specifications
| Parameter | Specification |
|---|---|

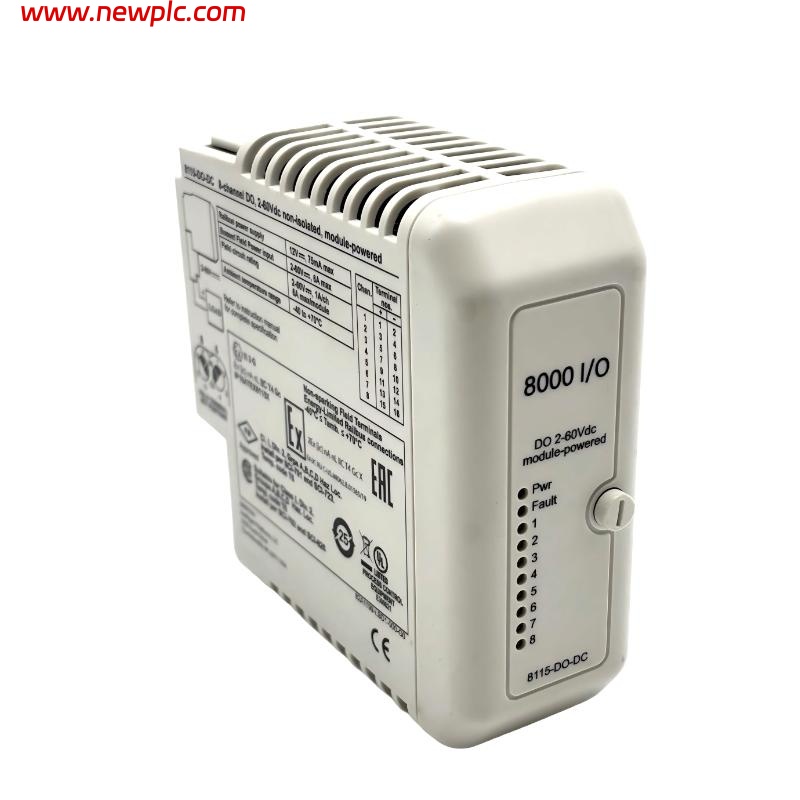

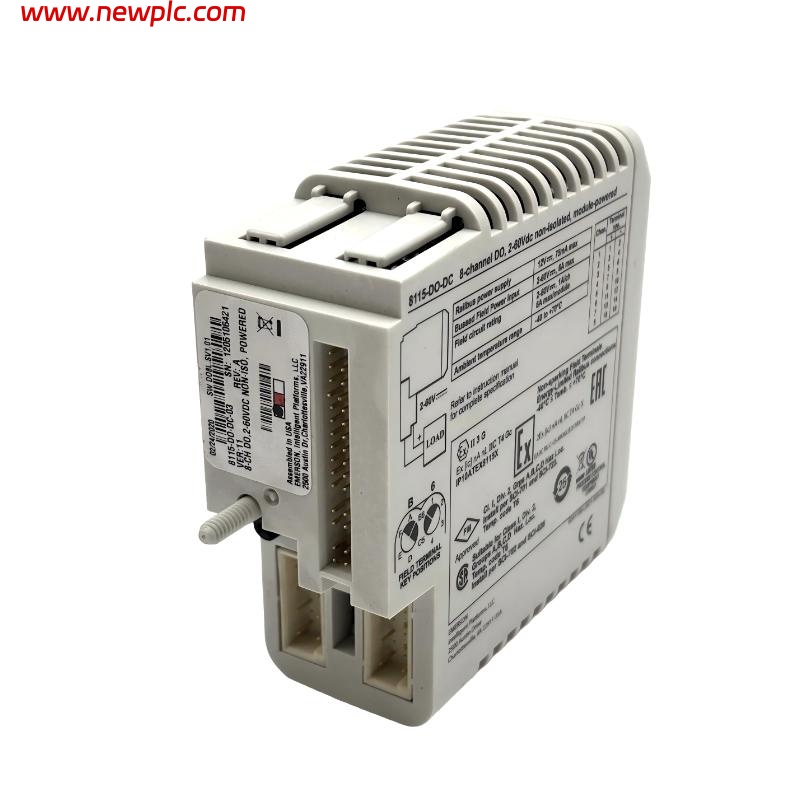

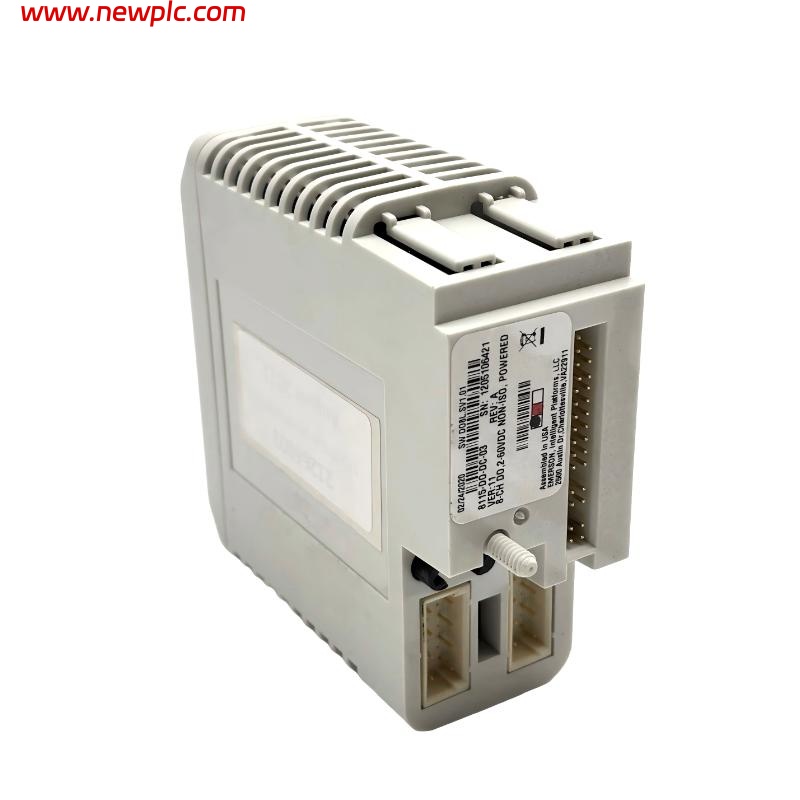

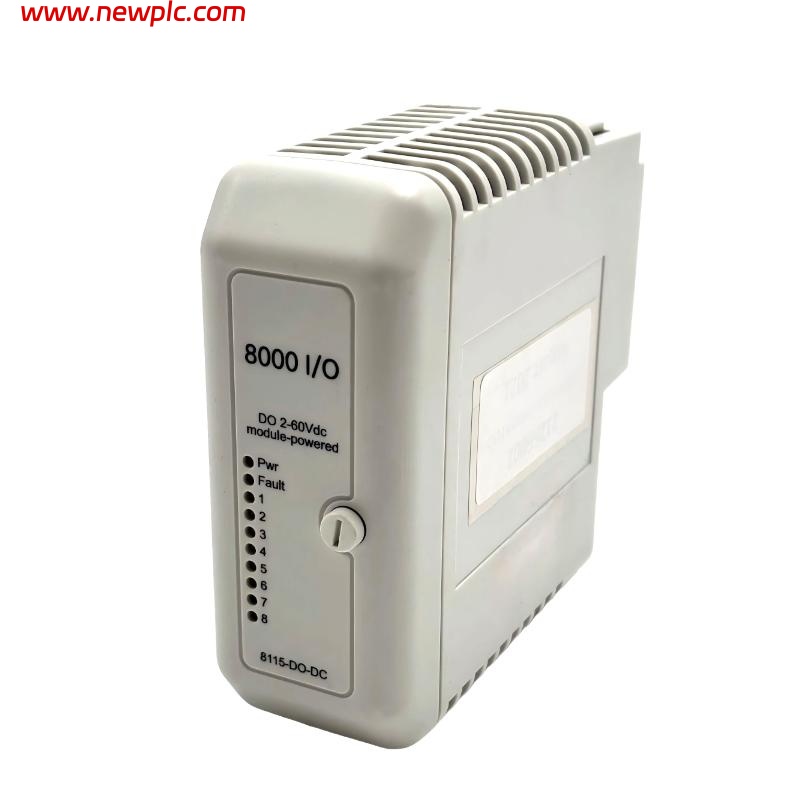

| Model Number | GE 8115-DO-DC |
| Type | 8-Channel Digital Output Module |
| Function | DC digital output control for industrial automation systems |
| Number of Output Channels | 8 independent channels |
| Output Signal Type | DC switching (solid-state or relay depending on system configuration) |
| Rated Output Voltage | 24 VDC (typical industrial standard) |
| Output Current Capacity | Suitable for industrial control loads per channel |
| Output Isolation | Channel-to-logic electrical isolation |
| Protection Features | Short-circuit, overload, and surge suppression |
| Switching Response | Fast response for control and interlock circuits |
| Diagnostic Capability | Channel status indication and fault detection |
| Communication Interface | Backplane / system bus interface |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions | 145 × 120 × 42 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: What is the main function of the GE 8115-DO-DC module?
A1: It provides 8 independent DC output channels used to control external devices such as solenoids, relays, and indicator lamps.
Q2: What type of loads can this module drive?
A2: It is designed for standard industrial DC loads within the rated voltage and current limits of each channel.
Q3: Does the module provide channel isolation?
A3: Yes, channels are electrically isolated from the logic section to improve system safety and noise immunity.
Q4: Is this module suitable for safety-related control circuits?
A4: It can be used in protection and interlock logic, but system-level safety integrity depends on the overall control architecture.
Q5: How are output states monitored?
A5: The module provides diagnostic feedback such as channel status indication and fault reporting through the control system.
Q6: What happens if an output is short-circuited?
A6: Built-in protection circuitry limits current and prevents damage to the module and connected devices.
Q7: How is the module powered?
A7: Power is supplied through the system backplane from the control system’s DC power supply.
Q8: Does the module require configuration before use?
A8: Channel behavior is configured through the control system software; the hardware itself does not require local configuration.
