Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200EXPSG1ACB |

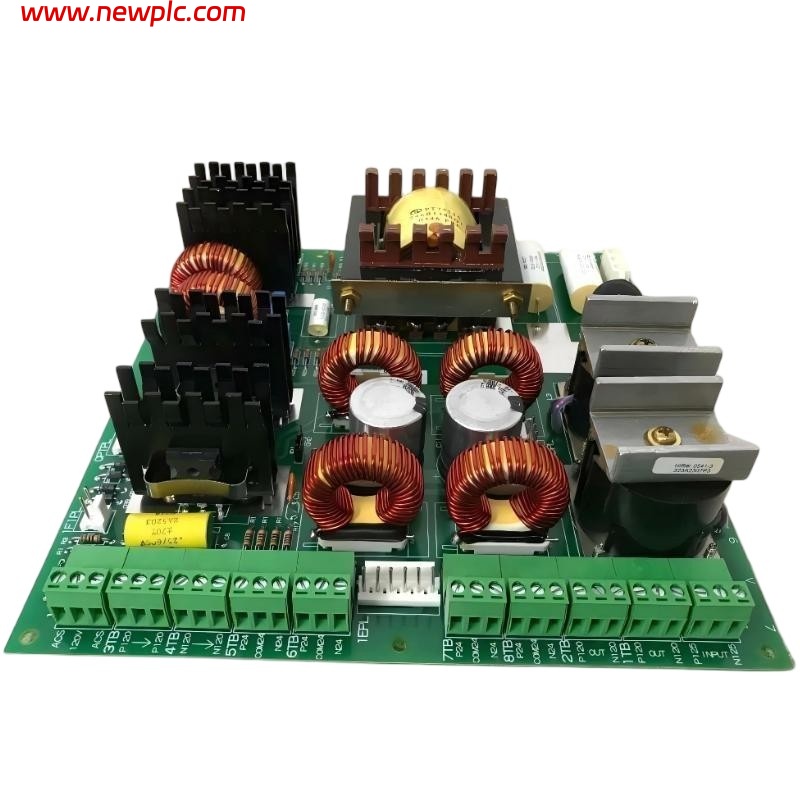

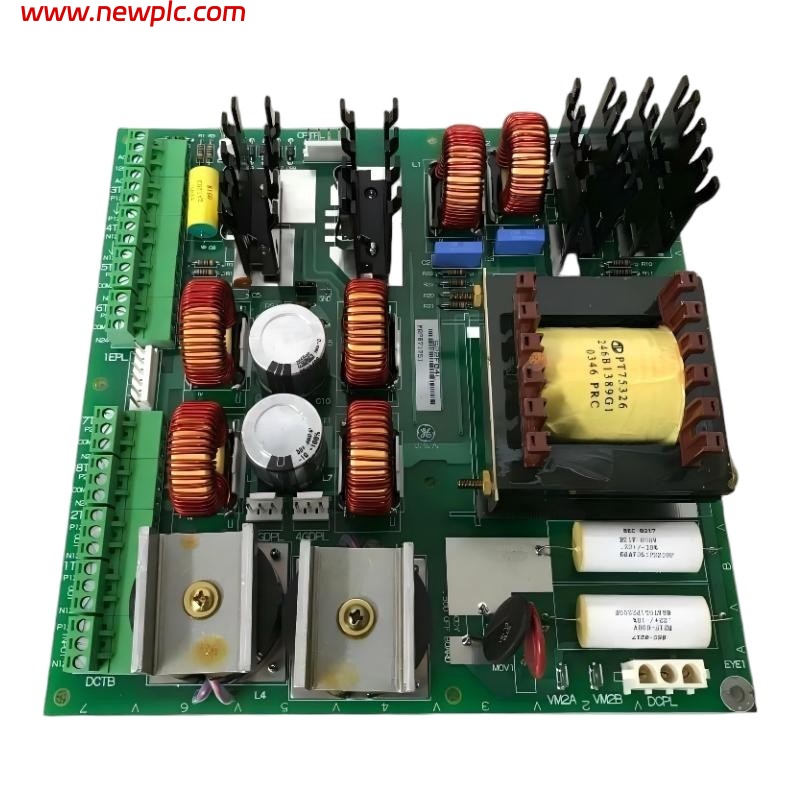

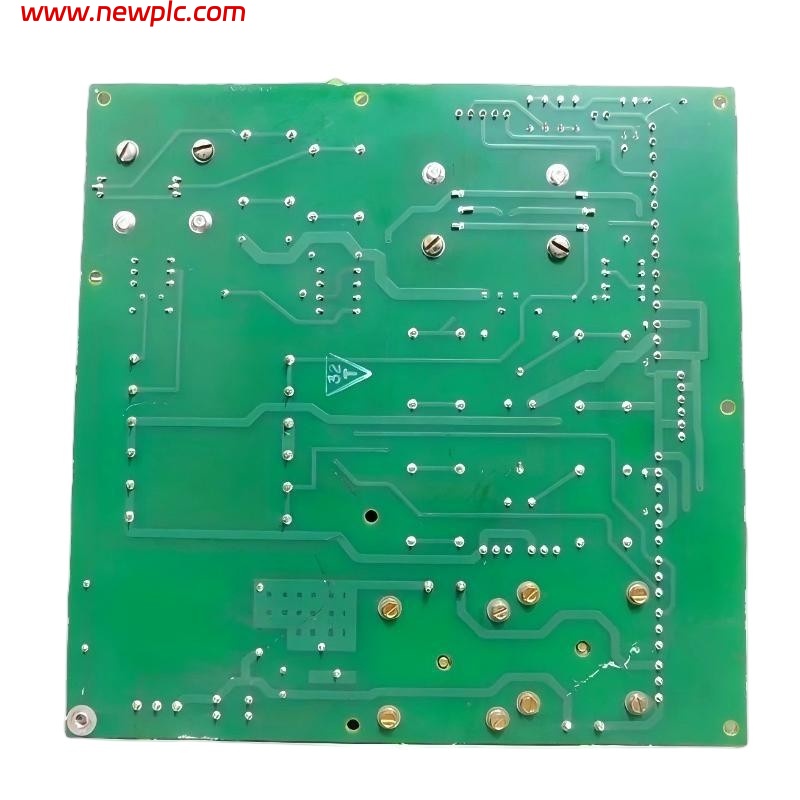

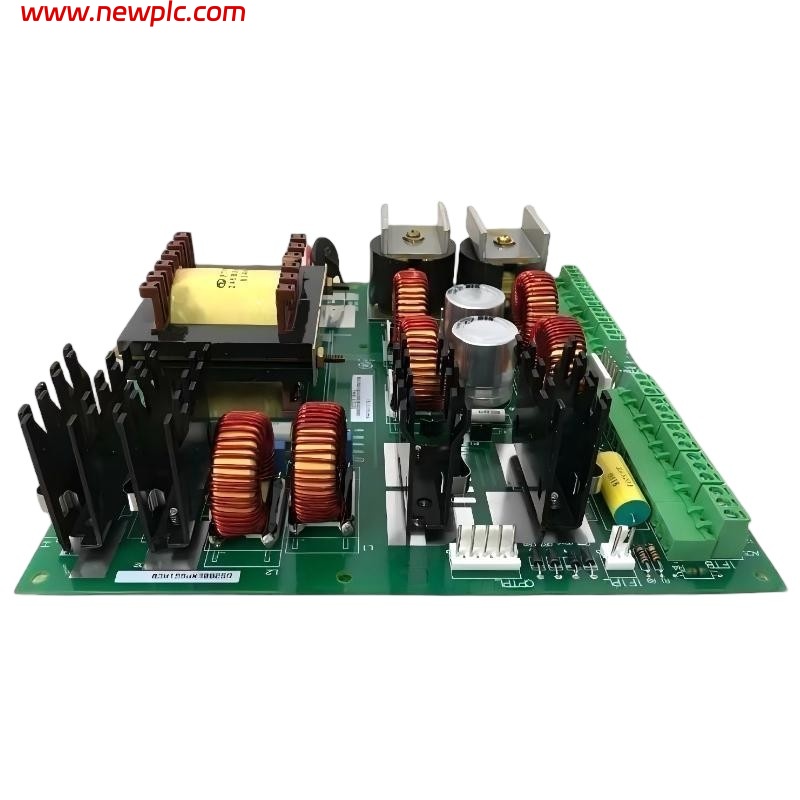

| Product Type | Bulk Power Supply Board |
| Series | Speedtronic / Mark V DS200 Series |
| Function | Converts and conditions power for internal control system components, distributes DC power to modules |
| Instruction Manual | GEI‑100168 |
| PCB Coating | Normal coating |
| Functional Revisions | A, C |
| Artwork Revision | B |
| Connectors | Multiple 9‑pin connectors plus LED indicator and reset button |
| Protections | Fuses and diagnostic test points |
| Operating Environment | Industrial turbine control cabinet |
| Operating Temperature | Standard industrial range (not explicitly specified) |
| Storage Temperature | Standard PCB storage range |
| Humidity | Non‑condensing industrial humidity |
| Dimensions (approx.) | 13.50 in × 9 in × 3.50 in (343 mm × 229 mm × 89 mm) |
| Weight | ~1.88 kg (4.15 lbs) |
| Status | Legacy Mark V power supply board |
FAQ
FAQ
Q1. What is the DS200EXPSG1ACB used for?
It is a bulk power supply board that provides stable DC power and distribution for modules within GE Mark V turbine control systems.
Q2. Which control system series does this board belong to?
It belongs to the Speedtronic Mark V DS200 series of turbine control modules.
Q3. What is the main function of this board?
Its main role is to convert and condition incoming power and supply regulated DC voltages to other control components.
Q4. Does this board include protection features?
Yes — it includes fuses and diagnostic test points for monitoring and protection.
Q5. What indicators are on the DS200EXPSG1ACB?
It includes an LED indicator that shows normal startup and operation status.
Q6. How is this board installed?
It is installed inside a Mark V control cabinet rack as a printed circuit board.
Q7. What are the approximate size and weight of this board?
The board measures about 13.50 in × 9 in × 3.50 in and weighs approximately 1.88 kg (4.15 lbs).
Q8. Is DS200EXPSG1ACB still produced?
It is a legacy board, typically available as surplus, replacement, or refurbished part.
