Technical Specifications
| Parameter | Description |
|---|---|

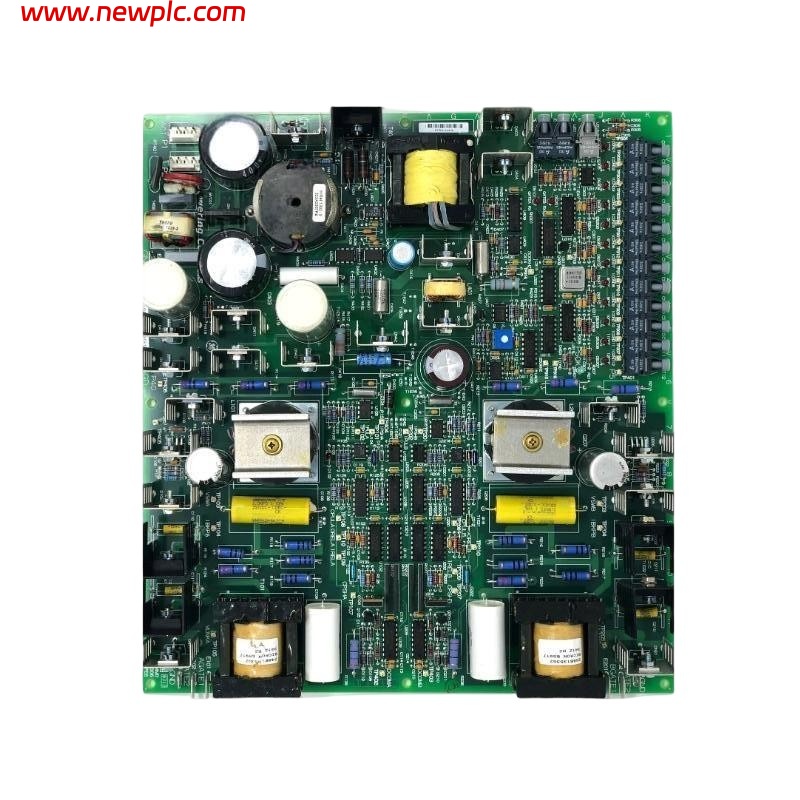

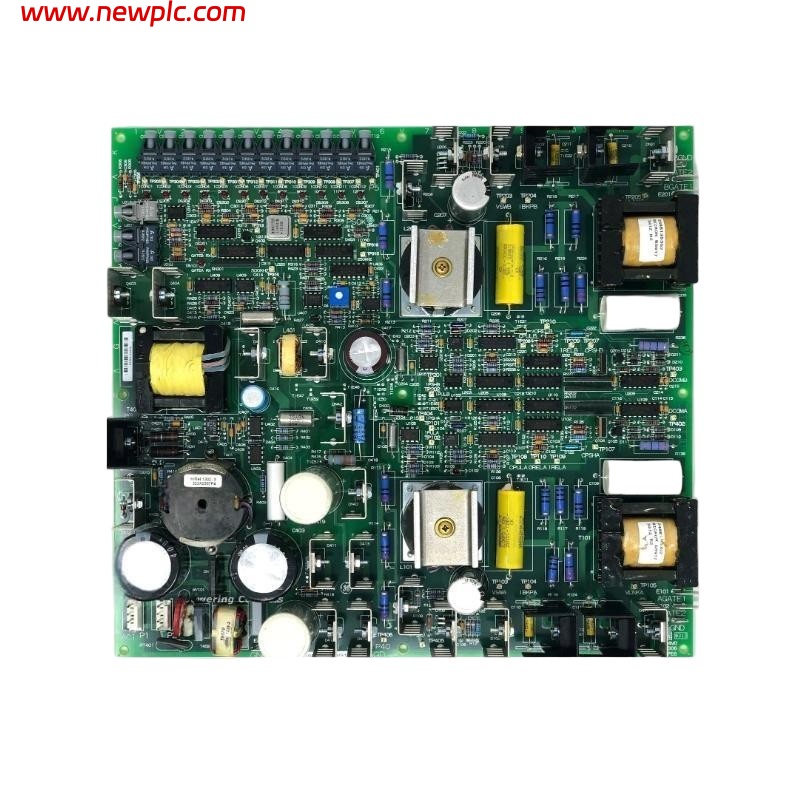

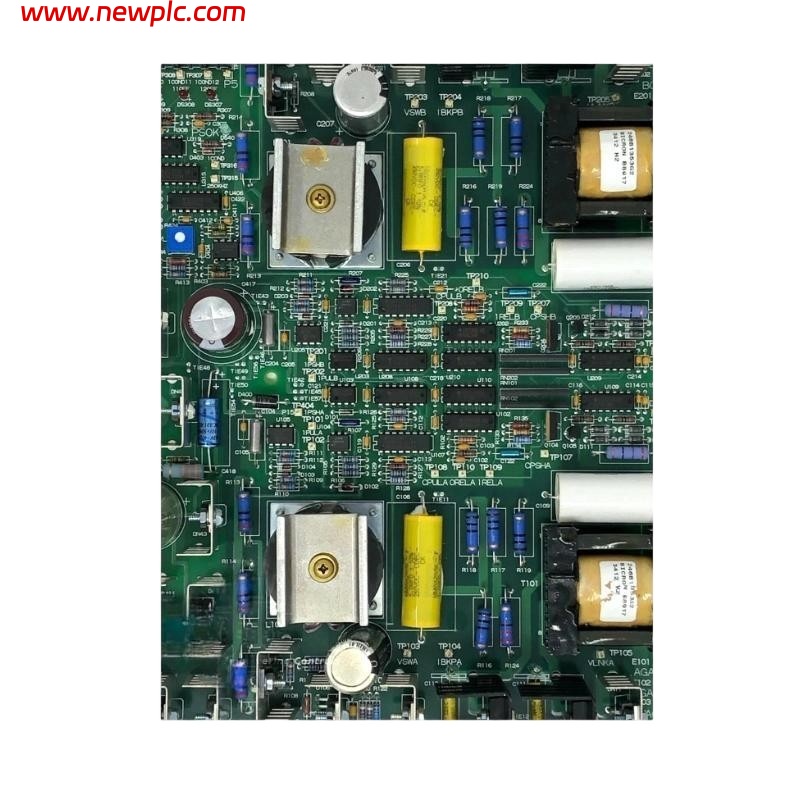

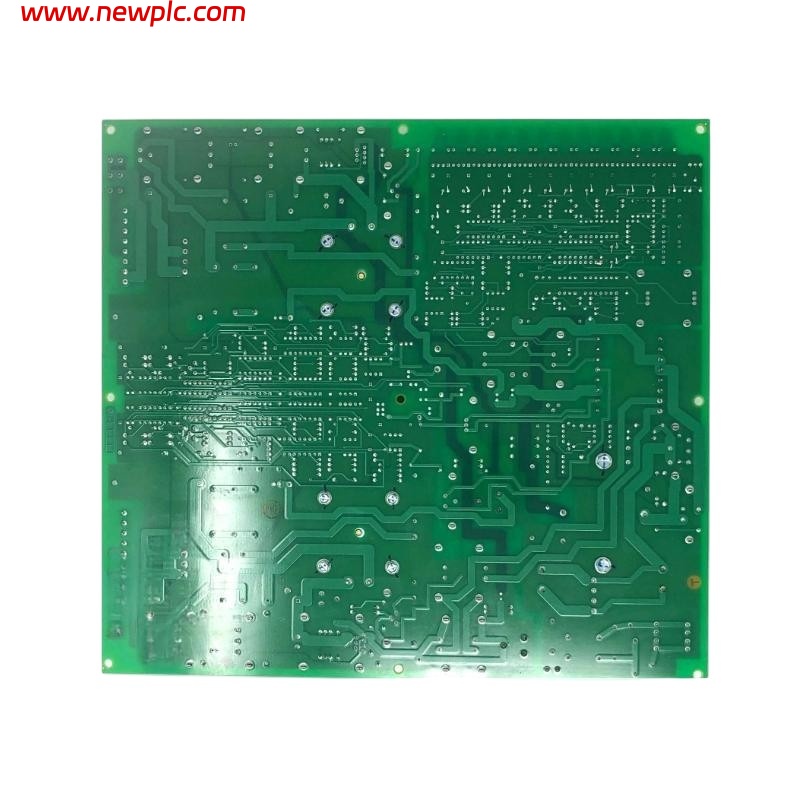

| Product Model | GE DS200FGPAG1A |
| Product Type | Gate Pulse Amplifier Board |
| Series | GE LS2100 / DS200 series |
| Function | Amplifies gate signals and monitors SCR status in turbine/excitation control systems |
| System Compatibility | LS2100 Static Starter Control / Mark V turbine control systems |
| Gate Driver Circuits | 2 independent circuits |
| Number of Fiber‑Optic Connectors | 15 (1 transmitter, 14 receivers) |
| Test Points | 30 total (9 for Gate A, 9 for Gate B, 12 for cell status) |
| Supply Input Voltage | 120 VRMS ± 20%, 50/60 Hz |
| Maximum Power Consumption | ~350 VA |
| Twelve‑Pulse Converter Voltage | 2080 VAC or 3300 VAC |
| Electrical Isolation | Fiber‑optic signal isolation to control logic |
| Operating Temperature | Typical industrial control range (~–30 °C to +65 °C) |
| Storage Temperature | ~–40 °C to +85 °C |
| Relative Humidity | 5% to 95% non‑condensing |
| Mounting Method | Rack backplane module within cabinet |
| Dimensions (Approx.) | 252 mm × 122 mm × 140 mm (9.9″ × 4.8″ × 5.5″) |
| Weight | ~0.23 kg (0.5 lbs) |
| Typical Application | SCR gate signal amplification and status monitoring in turbine/excitation control systems |
FAQ
FAQ
Q1. What is the GE DS200FGPAG1A used for?
It’s a gate pulse amplifier board that generates and conditions gate drive signals for silicon‑controlled rectifiers (SCRs) and monitors their status in control systems.
Q2. How many gate driver circuits are on this board?
The module includes two independent gate driver circuits.
Q3. What voltage does the board accept for power?
It accepts a 120 VRMS AC input (± 20%).
Q4. How many fiber‑optic connectors does it have?
It has 15 fiber‑optic connections (1 transmitter, 14 receivers) for communication with other modules.
Q5. How many test points are available on the board?
There are 30 test points for monitoring gate and SCR cell status.
Q6. What size is the DS200FGPAG1A board?
The approximate dimensions are 252 mm × 122 mm × 140 mm.
Q7. How much does it weigh?
It weighs about 0.5 lbs (≈ 0.23 kg).
Q8. In what systems is this board typically used?
It’s commonly used in GE turbine and excitation control systems to drive SCR bridges and provide gating signal monitoring.
