Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200RTBAG3AHC |

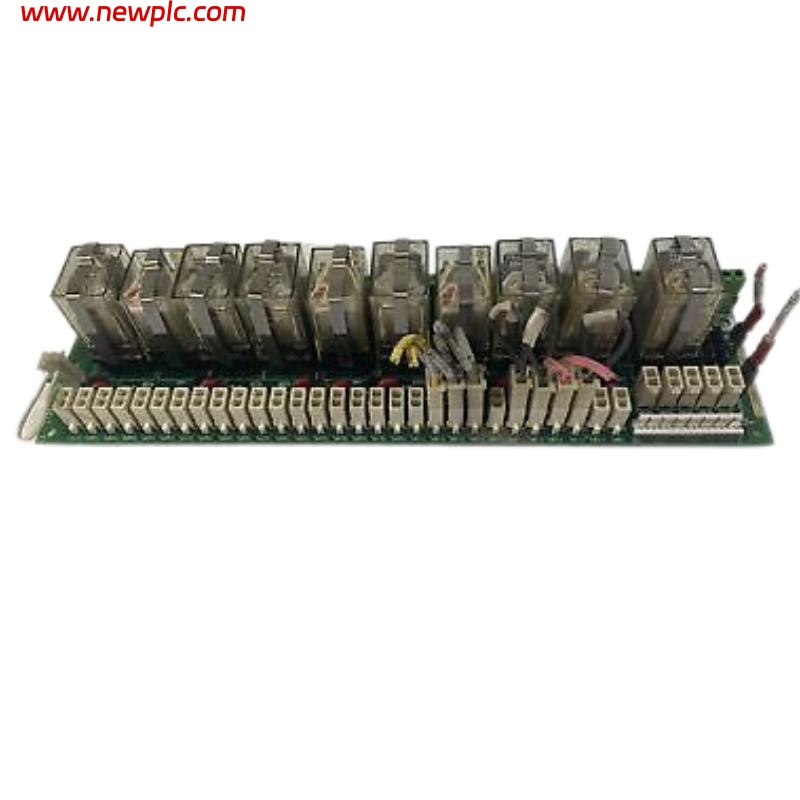

| Product Type | Relay Terminal Board |
| Series | Speedtronic / Mark V DS200 Series |
| Function | Provides relay signal routing, protection, and I/O termination between control modules and field devices in turbine/industrial systems |
| Number of Relays | 10 relay channels |
| I/O Terminals | 52 endpoints for input/output connections |
| Connector Types | CPH (positive power) and CPN (negative power) plug‑in power connectors |
| Input Voltage | 12–24 V DC system power |
| Output Voltage | 10–20 V AC for relay circuits |
| Output Current | ~100 mA per relay circuit |
| Operating Temperature | −40 °C to +70 °C |
| Mounting | Rack‑mount printed circuit board in control cabinet |
| Dimensions (approx.) | ~100 mm × 50 mm × 25 mm |
| Weight | ~0.5 kg |
| Status | Legacy / surplus industrial control board |
FAQ
FAQ
Q1. What is the DS200RTBAG3AHC used for?
It is a relay terminal board that provides organized signal routing, relay configuration, and I/O termination in GE Speedtronic Mark V turbine and industrial control systems.
Q2. How many relays does this board include?
It includes 10 relays that can be driven by pilot relays or remotely by control logic.
Q3. How many I/O terminals are on the board?
The board features 52 terminal endpoints for signal connections.
Q4. What type of power connections does it use?
It uses two plug‑in connectors for power distribution: CPH for positive and CPN for negative supply.
Q5. What voltage ranges does it work with?
It accepts 12–24 V DC power and provides 10–20 V AC for relay circuits.
Q6. What is the operating temperature range?
It is rated to operate reliably from −40 °C to +70 °C.
Q7. What are the physical size and weight of the DS200RTBAG3AHC?
Its approximate dimensions are 100 mm × 50 mm × 25 mm and it weighs about 0.5 kg.
Q8. Is this board still in production?
No; it is a legacy control component commonly available as surplus or refurbished rather than new production.
