Technical Specifications
| Parameter | Specification |
|---|---|

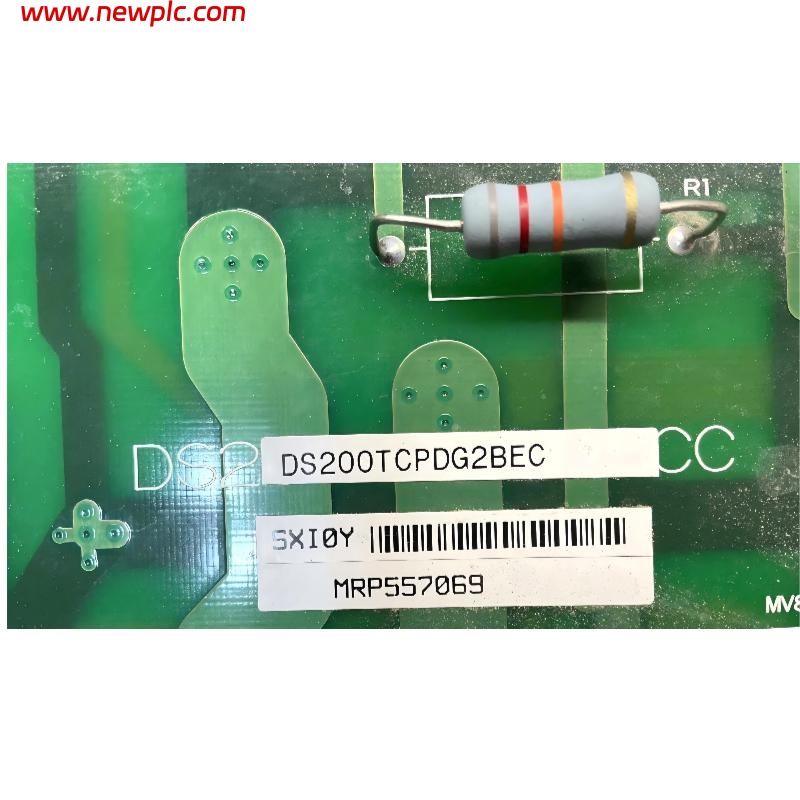

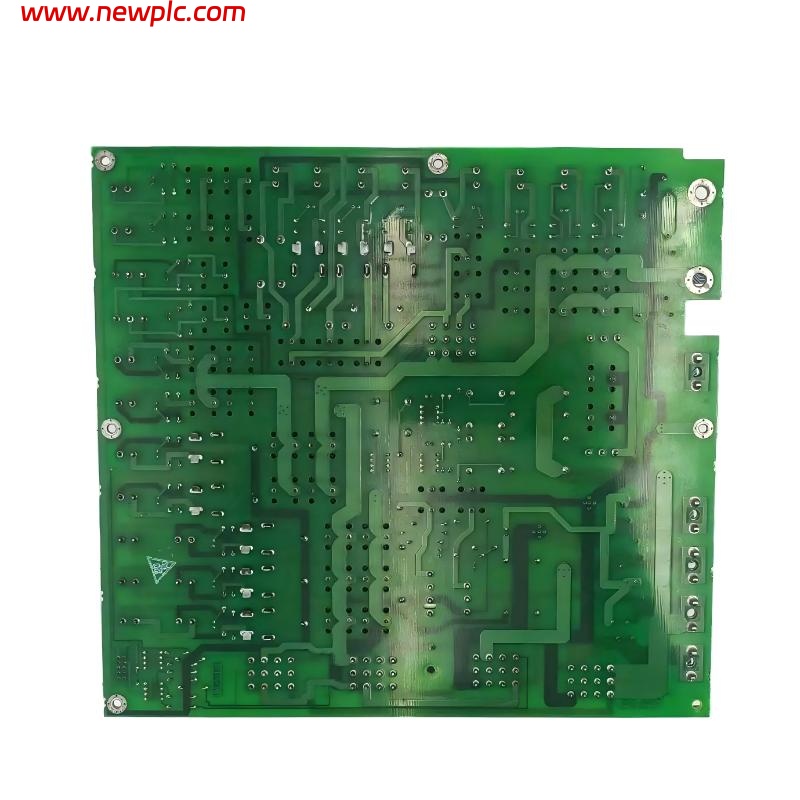

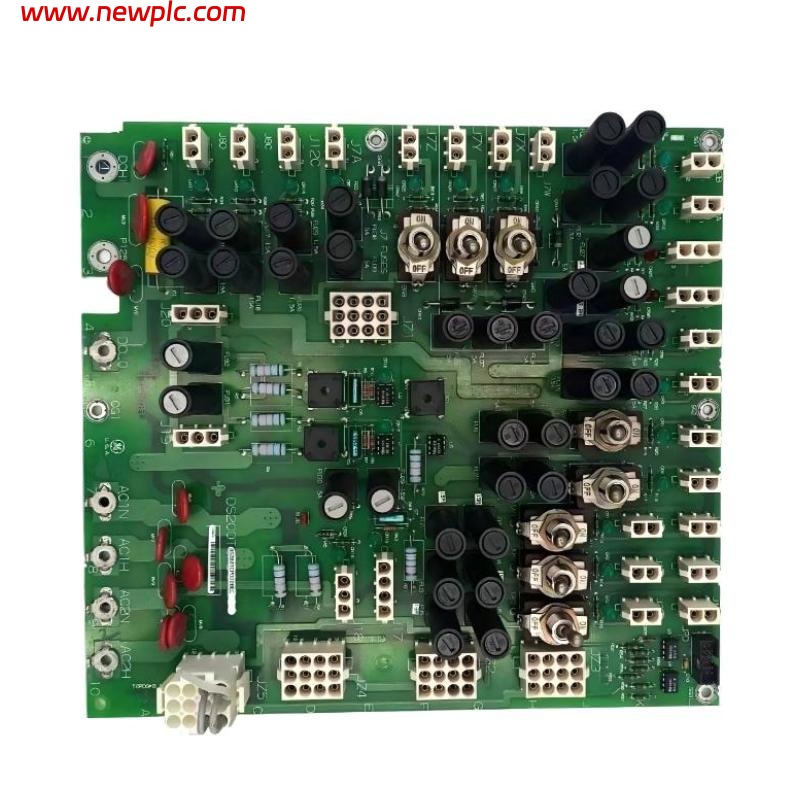

| Model Number | GE DS200TCPDG2BEC |
| Type | Mark V Power Distribution Board |
| Function | System power distribution to control and I/O boards within GE Mark V architecture |
| Compatible Systems | GE Mark V Control System |
| Input Voltage | 24 VDC nominal |
| Output Voltage Levels | Multiple system power rails |
| Distribution Channels | Individually protected output circuits |
| Protection Features | Overcurrent, short-circuit, and surge protection |
| Power Monitoring | Test points for voltage verification |
| Connection Method | Terminal blocks and backplane interface |
| Isolation | Functional isolation per Mark V standards |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Panel mount |
| Dimensions (HxWxD) | 180 x 120 x 30 mm |
| Weight | 0.454 kg |
FAQ
FAQ
Q1: What is the purpose of the GE DS200TCPDG2BEC board?
A1: It distributes DC supply power to various modules in a Mark V control system.
Q2: How is this board different from other power distribution boards in the same series?
A2: The “2BEC” revision indicates a hardware and layout update for compatibility and reliability improvements.
Q3: What protections are included?
A3: The board includes overcurrent, short-circuit, and surge protection on distribution lines.
Q4: Does this board convert AC to DC?
A4: No, it distributes DC power; conversion is handled by upstream power supply units.
Q5: How is power connected to and from the board?
A5: Power enters and exits through terminal blocks and is also routed via the system backplane.
Q6: Can the board be serviced while the system is running?
A6: For safety reasons, servicing should only be done when the system is powered down.
Q7: Is any configuration required before operation?
A7: No configuration is required; the board operates as a fixed hardware distribution module.
Q8: Does the board provide diagnostic feedback?
A8: It provides voltage check points for maintenance personnel to verify output conditions.
