Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200TCPSG1AME |

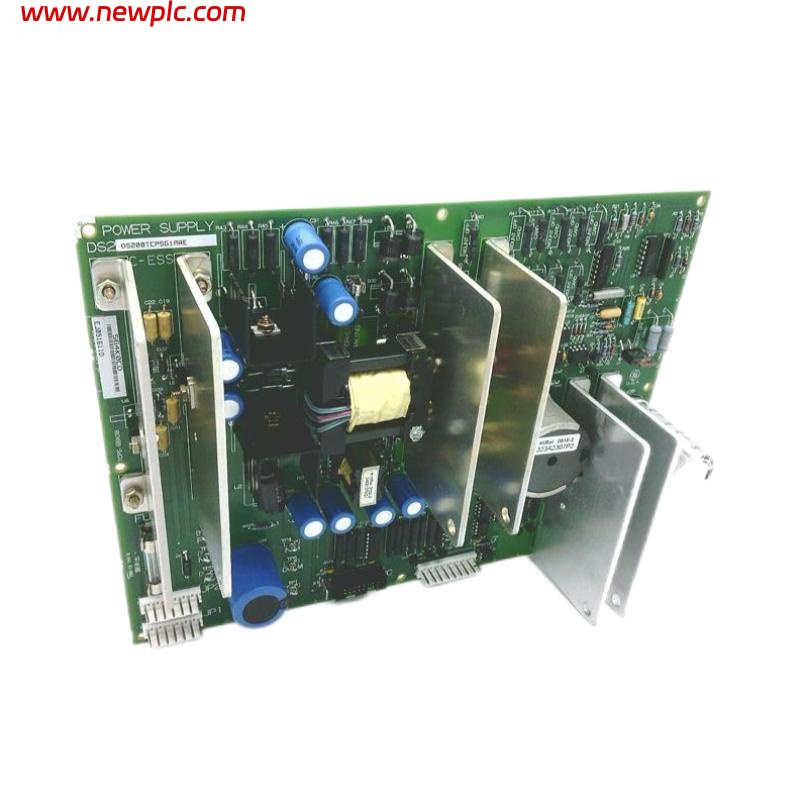

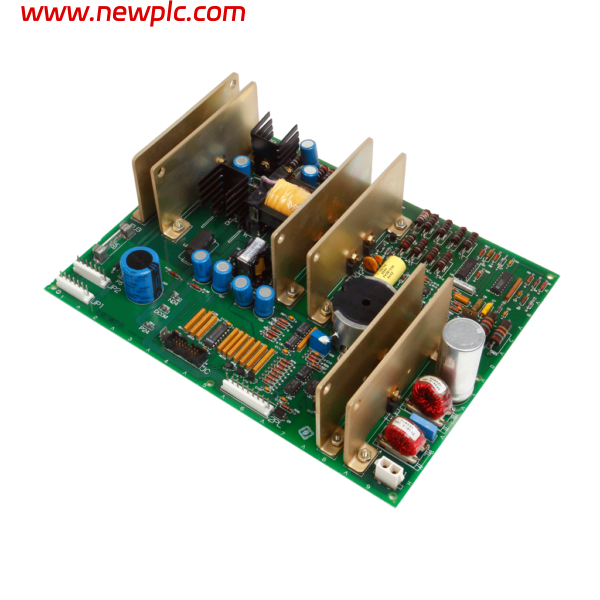

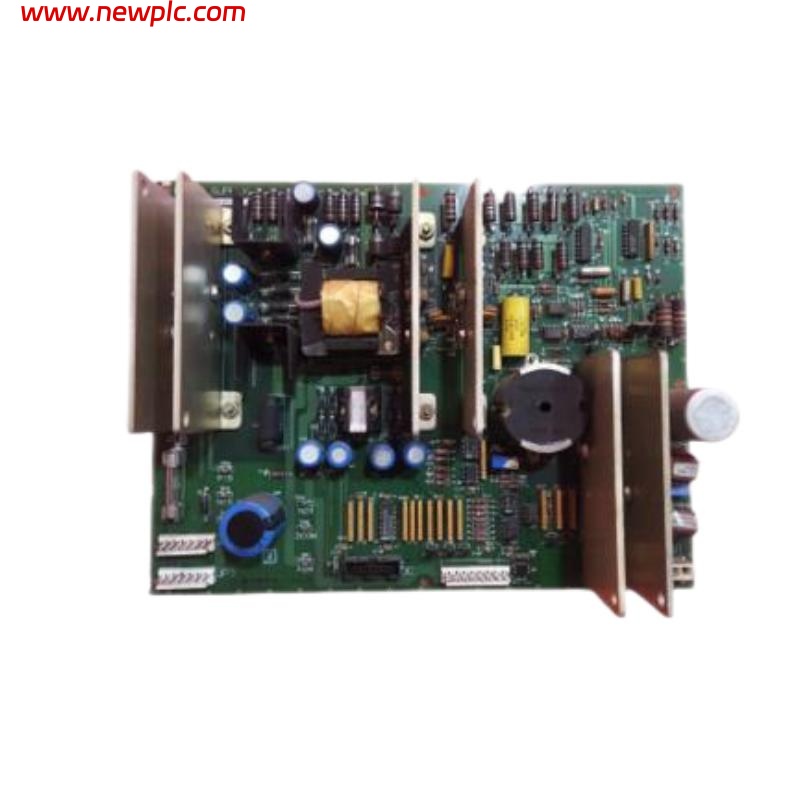

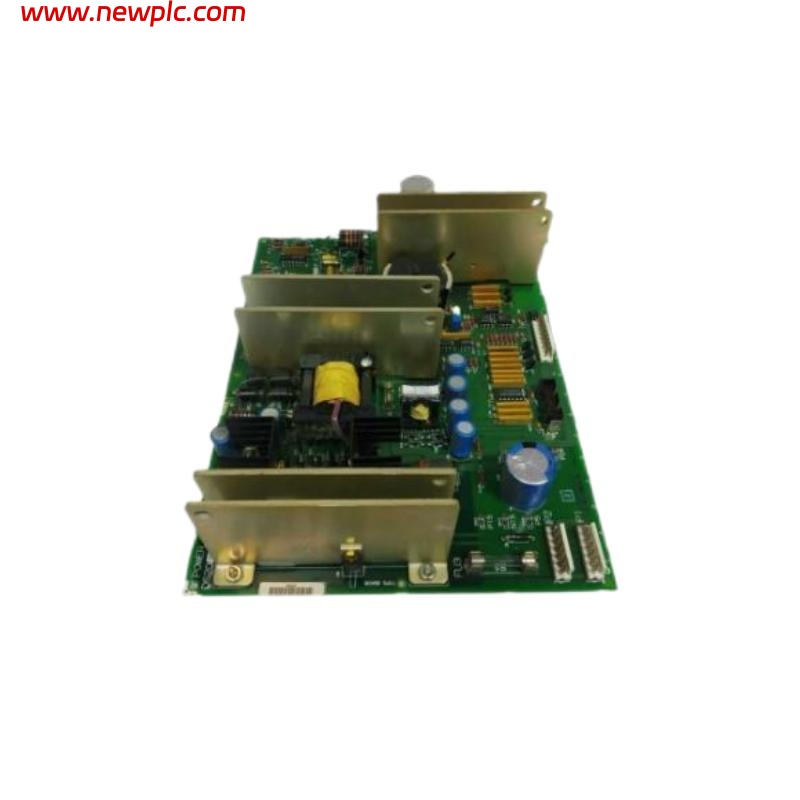

| Product Type | Advanced Power Supply Board |
| Series | Speedtronic Mark V (DS200) |
| Function | Converts 125 V DC input power to the various DC voltages required by turbine control system modules (e.g., RTD sensing power, servo valve outputs, microprocessor supply). |
| Input Voltage | 125 V DC (from TCPD / PD core) |
| Output Voltage | System-specific DC supply voltages to downstream boards (customized per system configuration) |
| Connectors | J1 (125 V DC input); 2PL, JC, JP1, JP2 (power distribution to other boards) |
| Protection Features | Multiple onboard fuses, heat sinks for thermal control, transformer/inductor networks, metal-oxide varistors (MOV) for surge protection, test points for diagnostics |
| PCB Coating | Thick protective coating for industrial environments |
| Mounting | Rack-mount printed circuit installation inside Mark V control cabinet |
| Operating Temperature | Approx. −20 °C to +60 °C (per typical Mark V power board operation) |
| Humidity | Standard industrial non-condensing environment (5 %–95 %) |
| Dimensions | 178 mm × 152 mm × 38 mm (17.8 × 15.2 × 3.8 cm) |
| Weight | ~1.24 kg (≈ 2.73 lbs) |
| Status | Legacy Mark V power board — often available as surplus/refurbished stock |
FAQ
FAQ
Q1. What is the DS200TCPSG1AME board used for?
It is an advanced power supply board that converts high-voltage DC input into the power rails needed by other control system modules within GE Mark V turbine control systems.
Q2. Which control system series is this part designed for?
This board is designed for GE Speedtronic Mark V turbine control platforms.
Q3. What power input does DS200TCPSG1AME require?
It requires a 125 V DC input, typically sourced from the PD core of the control system.
Q4. What kinds of outputs does the board provide?
It supplies regulated DC power to various I/O and processing boards, including RTD sensors and servo valve drivers.
Q5. What protections are built into this power supply?
It includes internal fuses, heat sinks, surge protection elements (MOVs), and diagnostic test points.
Q6. What are the board’s physical dimensions?
Its approximate dimensions are 178 mm × 152 mm × 38 mm.
Q7. How much does the DS200TCPSG1AME weigh?
It weighs about 1.24 kg (2.73 lbs).
Q8. Is this board still manufactured by GE?
No — it is a legacy Mark V series power supply board typically available only as surplus or refurbished stock.
